Elis Elektro

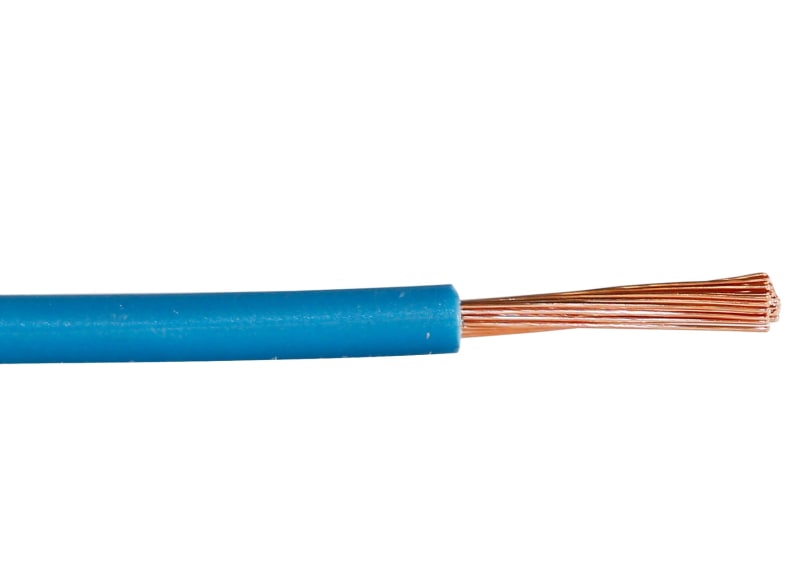

H07 V-K 6 mm² Lysblue 100M
Part number1002674EAN / GTIN7070613026813HS code8544.49
Cables & Wiring
Single-Core Wires
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
H07 V-K 6 mm² Light blue 100m.
Technical Specifications
- Manufacturer part number (MPN)
- 1002674
- Sales unit
- m
- Package quantity
- 100 m
- EL number
- 1002674
- EAN / GTIN
- 7070613026813
- ETIM class
- EC003248 - Power cable < 1 kV, for permanent installation
- CE marked
- Yes
- REACH relevant
- No
- Country of origin
- Turkey
- HS code
- 85441100
- Base unit
- m
- Price unit
- m
- Product length / depth
- 1000 mm
- Net weight
- 112 g
- Price units per base unit
- 1
- Nominal voltage U (V)
- 750
- Nominal cross section conductor (mm²)
- 6
- Nominal voltage U0 (V)
- 450
- Nominal cross section conductor (AWG) (kcmil)
- 10
- Diameter conductor (mm)
- 0
- Cable width approximate (mm)
- 5.3
- Cable height approximate (mm)
- 5.3
- Number of cores
- 1
- Weight (kg/km)
- 112
- Outer diameter approximate (mm)
- 5.3
- Min. permitted bending radius, stationary application/permanent installation (mm)
- 36
- Max. permitted conductor temperature (°C)
- 70
- Permitted cable outer temperature during assembling/handling (°C)
- -30 to 70
- Permitted cable outer temperature after assembling without vibration (°C)
- -30 to 70
- Flame retardant according to IEC 60332-1-2
- Yes
- Suitable as installation cable
- Yes
- Twisted cores
- No
- Screen
- No
- With protective conductor
- No
- Drain wire
- No
- Radial water blocking cable
- No
- Low temperature resistant according to EN 60811-504+505+506
- No
- Low smoke according to EN IEC 61034-2
- No
- Halogen free according to EN IEC 60754-1
- No
- Halogen free according to EN IEC 60754-2
- No
- Oil resistant according to EN IEC 60811-404
- No
- Certified for shipboard application
- No
- Certified as airport lighting cable
- No
- With rodent protection
- No
Standards & Compliance
- HS Code
- 8544.49
Cross References
- 7070613026813
Product Documentation
Document preview: H07 V-K 6 mm² Lysblue 100m (1002674) — Data Sheet (OEM, Norwegian)
