Elis Elektro
RE2Y(ST)Y 24X2X1,3 mm² Blue
Part number1002486EAN / GTIN7070613024932HS code8544.49
Cables & Wiring
Signal & Data Cables
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description

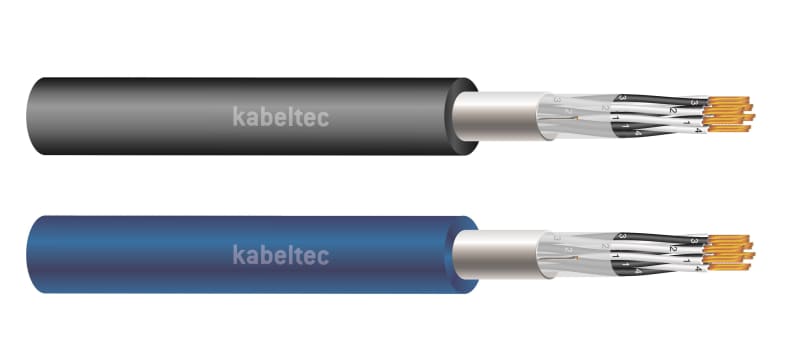

Elis Elektro 1002486 RE2Y(ST)Y 24x2x1,3 mm² Blue.
Technical Specifications
- Manufacturer part number (MPN)
- 1002486
- EAN / GTIN
- 7070613024932
- Sales unit
- m
- Package quantity
- 500 m
- EL number
- 1002486
- ETIM class
- EC003250 - Power cable < 1 kV, for moving application
- CE marked
- Yes
- REACH relevant
- No
- Country of origin
- Germany
- HS code
- 85441100
- Base unit
- m
- Price unit
- m
- Product length / depth
- 1000 mm
- Net weight
- 912 g
- Price units per base unit
- 1
- Nominal voltage U (V)
- 0
- Nominal cross section conductor (mm²)
- 0.75
- Nominal voltage U0 (V)
- 0
- Nominal cross section conductor (AWG) (kcmil)
- 16
- Cable width approximate (mm)
- 27.5
- Cable height approximate (mm)
- 27.5
- Number of cores
- 48
- Weight (kg/km)
- 912
- Min. permitted bending radius, moving application with forced guidance (mm)
- 0
- Min. permitted bending radius, moving application/free movement (mm)
- 0
- Outer diameter approximate (mm)
- 27.5
- Min. permitted bending radius, stationary application/permanent installation (mm)
- 0
- Permitted cable outer temperature during assembling/handling (°C)
- -5 to 70
- Permitted cable outer temperature after assembling without vibration (°C)
- -40 to 80
- Screen
- Yes
- Halogen free according to EN IEC 60754-1
- Yes
- Halogen free according to EN IEC 60754-2
- Yes
- Oil resistant according to EN IEC 60811-404
- Yes
- With protective conductor
- No
- Torsion resistant
- No
- Low temperature resistant according to EN 60811-504+505+506
- No
Standards & Compliance
- HS Code
- 8544.49
Cross References
- EAN 7070613024932
- SAP 1200827521
- Code 84015857
Product Documentation
Document preview: RE2Y(ST)Y 24x2x1,3 mm² Blue (1002486) — Data Sheet (OEM, Norwegian)
