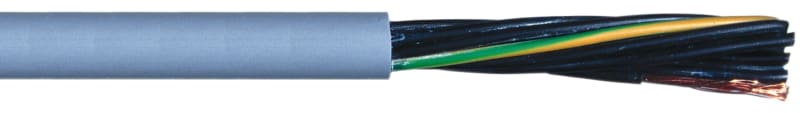

Elis Elektro 1002144 OPVC-JZ 8G2.5 mm-squared Numbered Control Cable
Pricing
Request a quote
We reply within 24 hours
Product Description
Elis Elektro 1002144 is a flexible OPVC-JZ control cable with eight cores of 2.5 mm-squared, each numbered for identification, and a protective conductor. Rated 300/500 V, the PVC-jacketed cable has an outer diameter of approximately 13.2 mm and is designed for moving applications with a minimum bending radius of 225 mm free-flexed and 60 mm stationary. Typical use is wiring of machine tools, conveyors and control-cabinet interconnections across -15 to +80 degrees C.
Technical Specifications
- Manufacturer part number (MPN)
- 1002144
- EAN / GTIN
- 7070613061876
- Sales unit
- m
- Package quantity
- 500 m
- EL number
- 1002144
- ETIM class
- EC003250 - Power cable < 1 kV, for moving application
- CE marked
- Yes
- REACH relevant
- No
- Country of origin
- Germany
- HS code
- 85441100
- Base unit
- m
- Price unit
- m
- Product length / depth
- 1000 mm
- Net weight
- 382 g
- Price units per base unit
- 1
- Nominal voltage U (V)
- 500
- Nominal cross section conductor (mm²)
- 2.5
- Nominal voltage U0 (V)
- 300
- Nominal cross section conductor (AWG) (kcmil)
- 14
- Cable width approximate (mm)
- 13.2
- Cable height approximate (mm)
- 13.2
- Number of cores
- 8
- Weight (kg/km)
- 382
- Min. permitted bending radius, moving application with forced guidance (mm)
- 225
- Min. permitted bending radius, moving application/free movement (mm)
- 225
- Outer diameter approximate (mm)
- 13.2
- Min. permitted bending radius, stationary application/permanent installation (mm)
- 60
- Permitted cable outer temperature during assembling/handling (°C)
- -15 to 70
- Permitted cable outer temperature after assembling without vibration (°C)
- -40 to 80
- With protective conductor
- Yes
- Screen
- No
- Torsion resistant
- No
- Low temperature resistant according to EN 60811-504+505+506
- No
- Low smoke according to EN IEC 61034-2
- No
- Halogen free according to EN IEC 60754-1
- No
- Halogen free according to EN IEC 60754-2
- No
- Oil resistant according to EN IEC 60811-404
- No
Standards & Compliance
- HS Code
- 8544.49
Cross References
- EAN 7070613061876
- SAP 1200827254
- Code 84015371
Product Documentation
More from Elis Elektro
Elis Elektro
T-screw M10X30MM H=21 Hot-dip galvanised
MP-076Z
Elis Elektro
230V dobl f/ floor box White UST45-W 2
1205129
Elis Elektro
T-screw M10X30MM H=41 Hot-dip galvanised
MP-079Z
Elis Elektro
T-screw M10X35MM Els
MP-984E
Elis Elektro
Nipple WADI-TEC M40 15-24
12 502 39
Elis Elektro
Mounting plate Blind Black
UDEP-B
Elis Elektro
Divider rail 25X1750MM Sendz
MP-127S
Elis Elektro
RE2Y(ST)Y 2X2X1,3 mm² Black
1002474
Catalogue entry last verified: 2026-10-03. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
