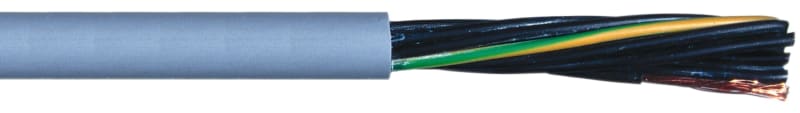

Elis Elektro ØPVC-JZ 25G0.75 mm² Numbered Flexible Control Cable
Pricing
Request a quote
We reply within 24 hours
Product Description
Elis Elektro 1002076 is a flexible PVC control cable of type ÖPVC-JZ with 25 cores of 0.75 mm² cross-section, numbered for easy identification. Rated 300/500 V, it has an outer diameter of approximately 13.8 mm and a minimum bending radius of 62 mm in stationary installation. The cable is used for signal and control wiring in machinery, moving applications, and industrial plant.
Technical Specifications
- Manufacturer part number (MPN)
- 1002076
- EAN / GTIN
- 7070613022204
- Sales unit
- m
- Package quantity
- 500 m
- EL number
- 1002076
- ETIM class
- EC003250 - Power cable < 1 kV, for moving application
- CE marked
- Yes
- REACH relevant
- No
- Country of origin
- Germany
- HS code
- 85441100
- Base unit
- m
- Price unit
- m
- Product length / depth
- 1000 mm
- Net weight
- 395 g
- Price units per base unit
- 1
- Nominal voltage U (V)
- 500
- Nominal cross section conductor (mm²)
- 0.75
- Nominal voltage U0 (V)
- 300
- Nominal cross section conductor (AWG) (kcmil)
- 19
- Cable width approximate (mm)
- 13.8
- Cable height approximate (mm)
- 13.8
- Number of cores
- 25
- Weight (kg/km)
- 180
- Min. permitted bending radius, moving application with forced guidance (mm)
- 232.5
- Min. permitted bending radius, moving application/free movement (mm)
- 232.5
- Outer diameter approximate (mm)
- 13.8
- Min. permitted bending radius, stationary application/permanent installation (mm)
- 62
- Permitted cable outer temperature during assembling/handling (°C)
- -15 to 70
- Permitted cable outer temperature after assembling without vibration (°C)
- -40 to 80
- With protective conductor
- Yes
- Screen
- No
- Torsion resistant
- No
- Low temperature resistant according to EN 60811-504+505+506
- No
- Low smoke according to EN IEC 61034-2
- No
- Halogen free according to EN IEC 60754-1
- No
- Halogen free according to EN IEC 60754-2
- No
- Oil resistant according to EN IEC 60811-404
- No
Standards & Compliance
- HS Code
- 8544.49
Cross References
- EAN 7070613022204
- SAP 1200827420
- Code 84015531
Product Documentation
More from Elis Elektro
Elis Elektro
Cable Tray perf 150mm Sendz 3M MP-3331S
MP-3331 S
Elis Elektro
Cable ladder 400 SS L=6M 6004-48
1354304
Elis Elektro
Extension M40/M50 Brass
12 548 76
Elis Elektro
Outlet Set 4-2 Black
DUCT-4-2
Elis Elektro
Cable Protection Foot Ø22
2860371
Elis Elektro

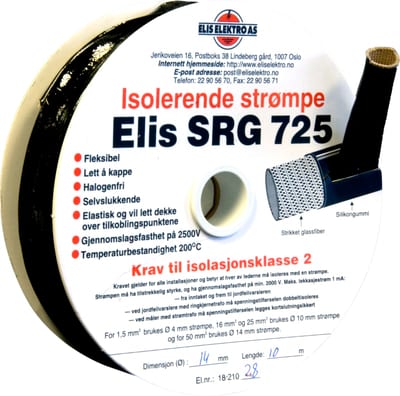

Sleeve 10mm Grey 100M SRG725
1821056
Elis Elektro

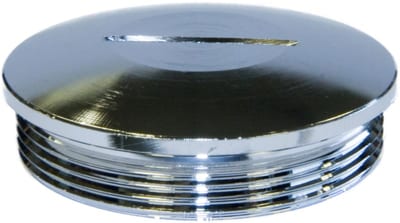

Blanking Plug PG13,5 Brass
12 501 83
Elis Elektro

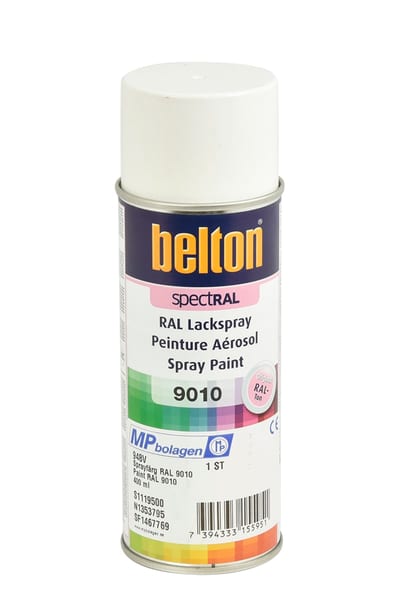

Spraycolour RAL 9010 MP-948V
