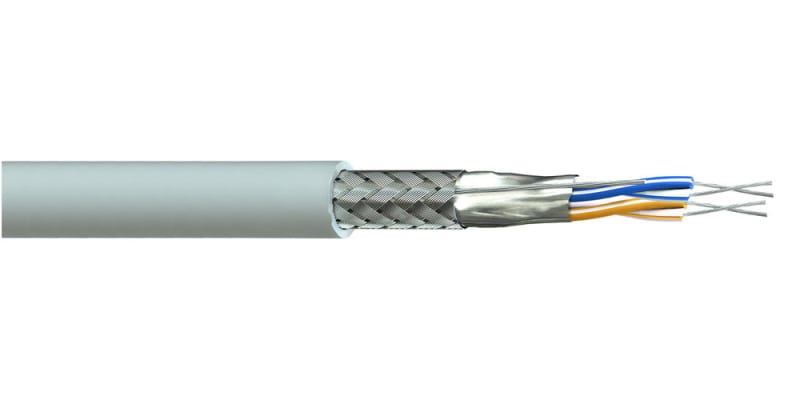

Elis Elektro Twin-Pair Foil & Braid Screened Cable 2x2xAWG24 9842NH
Pricing
Request a quote
We reply within 24 hours
Product Description
Elis Elektro 1001781 halogen-free, low-loss and interference-resistant data and instrumentation cable for RS-485 communication. Two twisted pairs, 0.27 mm² conductors, foil and braid screen, outer diameter approx. 8.7 mm.
Technical Specifications
- Manufacturer part number (MPN)
- 1001781
- EAN / GTIN
- 7070613073190
- Sales unit
- m
- Package quantity
- 500 m
- EL number
- 1001781
- ETIM class
- EC003249 - Data and communication cable
- CE marked
- Yes
- REACH relevant
- No
- Country of origin
- United Kingdom
- HS code
- 85441100
- Base unit
- m
- Price unit
- m
- Product length / depth
- 1000 mm
- Net weight
- 80 g
- Price units per base unit
- 1
- Nominal cross section conductor (mm²)
- 0.27
- Diameter conductor (mm)
- 0.6
- Cable width approximate (mm)
- 8.7
- Cable height approximate (mm)
- 8.7
- Number of stranding elements
- 2
- Number of cores
- 4
- Weight (kg/km)
- 95
- Min. permitted bending radius, moving application with forced guidance (mm)
- 87
- NVP value (%)
- 66
- Min. permitted bending radius, moving application/free movement (mm)
- 87
- Outer diameter approximate (mm)
- 8.7
- Min. permitted bending radius, stationary application/permanent installation (mm)
- 87
- Permitted cable outer temperature during assembling/handling (°C)
- -20 to 70
- Permitted cable outer temperature after assembling without vibration (°C)
- -20 to 70
- Low smoke according to EN IEC 61034-2
- Yes
- Halogen free according to EN IEC 60754-1
- Yes
- Halogen free according to EN IEC 60754-2
- Yes
- Suitable as telephone cable
- Yes
- Suitable as computer data cable
- Yes
- Suitable as signalling cable
- Yes
- Suitable for underground installation
- No
- Longitudinal water blocking cable
- No
- Radial water blocking cable
- No
- Oil resistant according to EN IEC 60811-404
- No
- Certified for shipboard application
- No
- With rodent protection
- No
Standards & Compliance
- HS Code
- 8544.49
Cross References
- EAN 7070613073190
- SAP 1200657856
- Code 83092103
Product Documentation
