Elis Elektro

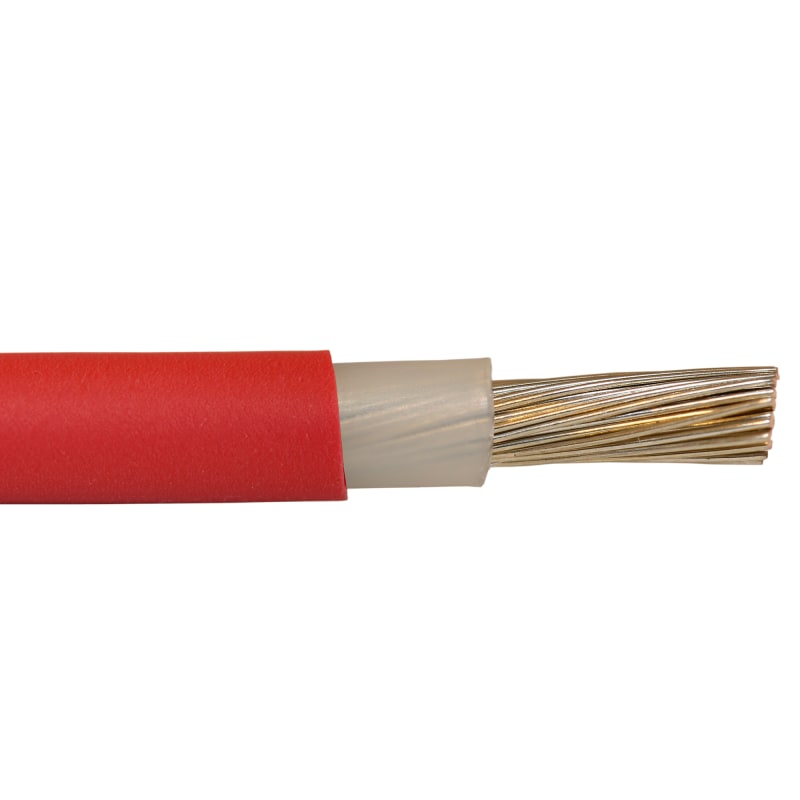

Solar Cable PV1-F 4 mm² Red
Part number1000162EAN / GTIN7070613070687HS code8544.49
Cables & Wiring
Solar Cables
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Elis Elektro 1000162 Solar Cable PV1-F 4 mm² Red.
Technical Specifications
- Manufacturer part number (MPN)
- 1000162
- EAN / GTIN
- 7070613070687
- Sales unit
- m
- Package quantity
- 500 m
- EL number
- 1000162
- ETIM class
- EC003248 - Power cable < 1 kV, for permanent installation
- CE marked
- Yes
- REACH relevant
- No
- Country of origin
- Germany
- HS code
- 85441100
- Base unit
- m
- Price unit
- m
- Product length / depth
- 1000 mm
- Net weight
- 60 g
- Price units per base unit
- 1
- Nominal voltage U (V)
- 1000
- Nominal cross section conductor (mm²)
- 4
- Nominal voltage U0 (V)
- 1000
- Nominal cross section conductor (AWG) (kcmil)
- 12
- Diameter conductor (mm)
- 2.3
- Cable width approximate (mm)
- 5.7
- Cable height approximate (mm)
- 5.7
- Number of cores
- 1
- Weight (kg/km)
- 63
- Outer diameter approximate (mm)
- 5.7
- Min. permitted bending radius, stationary application/permanent installation (mm)
- 24
- Max. permitted conductor temperature (°C)
- 250
- Permitted cable outer temperature during assembling/handling (°C)
- -40 to 90
- Permitted cable outer temperature after assembling without vibration (°C)
- -40 to 90
- Flame retardant according to IEC 60332-1-2
- Yes
- Low temperature resistant according to EN 60811-504+505+506
- Yes
- Low smoke according to EN IEC 61034-2
- Yes
- Oil resistant according to EN IEC 60811-404
- Yes
- Suitable as installation cable
- Yes
- Twisted cores
- No
- Screen
- No
- With protective conductor
- No
- Drain wire
- No
- Radial water blocking cable
- No
- Halogen free according to EN IEC 60754-1
- No
- Halogen free according to EN IEC 60754-2
- No
- Certified for shipboard application
- No
- Certified as airport lighting cable
- No
- With rodent protection
- No
Standards & Compliance
- HS Code
- 8544.49
Cross References
- EAN 7070613070687
- SAP 1200684895
- Code 83466044
Product Documentation
Document preview: Solar Cable PV1-F 4 mm² Red (1000162) — Data Sheet (OEM, Norwegian)
