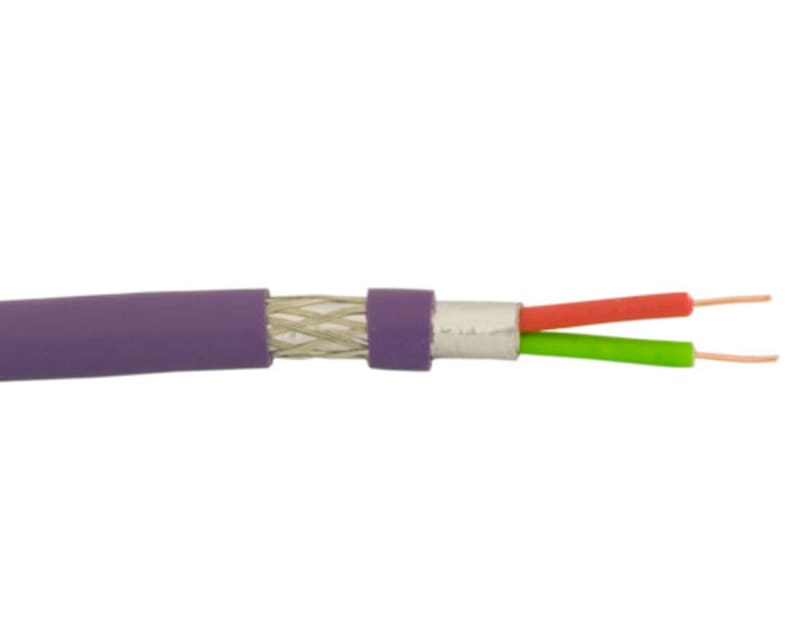

Elis Elektro 1000116 PROFIBUS Cable 1x2x0.64 mm Violet PVC Solid Conductor
Pricing
Request a quote
We reply within 24 hours
Product Description
Elis Elektro 1000116 is a PROFIBUS-specification data cable with one twisted pair of 0.64 mm solid conductors in a violet PVC outer sheath, supplied on 500 m reels. Nominal outer diameter is approximately 6 mm at 64 g/km, rated for temperatures of −5 to 70 °C during handling and −25 to 70 °C in static service. Suited for permanent installation of PROFIBUS DP field networks between PLCs, drives and process instrumentation.
Technical Specifications
- Manufacturer part number (MPN)
- 1000116
- EAN / GTIN
- 7070613017149
- Sales unit
- m
- Package quantity
- 500 m
- EL number
- 1000116
- ETIM class
- EC003249 - Data and communication cable
- CE marked
- Yes
- REACH relevant
- No
- Country of origin
- Germany
- HS code
- 85441100
- Base unit
- m
- Price unit
- m
- Product length / depth
- 1000 mm
- Net weight
- 64 g
- Price units per base unit
- 1
- Nominal cross section conductor (mm²)
- 0.64
- Diameter conductor (mm)
- 0
- Cable width approximate (mm)
- 7.8
- Cable height approximate (mm)
- 7.8
- Number of stranding elements
- 1
- Number of cores
- 2
- Weight (kg/km)
- 64
- Min. permitted bending radius, moving application with forced guidance (mm)
- 0
- NVP value (%)
- 0
- Min. permitted bending radius, moving application/free movement (mm)
- 0
- Outer diameter approximate (mm)
- 6
- Min. permitted bending radius, stationary application/permanent installation (mm)
- 3.84
- Permitted cable outer temperature during assembling/handling (°C)
- -5 to 70
- Permitted cable outer temperature after assembling without vibration (°C)
- -25 to 70
- Suitable for underground installation
- No
- Longitudinal water blocking cable
- No
- Radial water blocking cable
- No
- Circuit integrity according to IEC 60331-23
- No
- Low smoke according to EN IEC 61034-2
- No
- Halogen free according to EN IEC 60754-1
- No
- Halogen free according to EN IEC 60754-2
- No
- Oil resistant according to EN IEC 60811-404
- No
- Certified for shipboard application
- No
- With rodent protection
- No
Standards & Compliance
- HS Code
- 8544.49
Cross References
- EAN 7070613017149
- SAP 1200827488
- Code 84015525
Product Documentation
