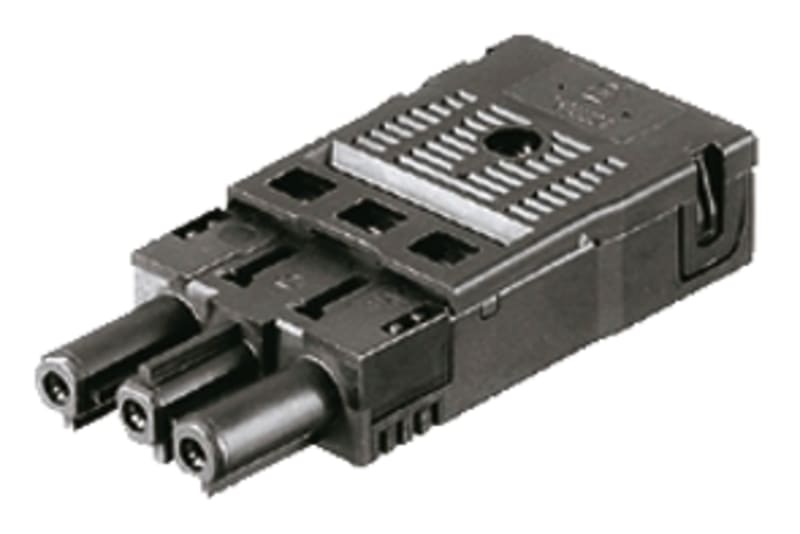

Plug Connector Output 230 V, Female, 250 V 20 A
Pricing
Request a quote
We reply within 24 hours
Product Description
EFA Elektro 92.933.0053.0 female plug connector (output) for pluggable 230 V power distribution with round cables — part of a system of plugs, distributors and prefabricated cables; rated 250 V, 20 A; pack of 50.
Technical Specifications
- Manufacturer part number (MPN)
- 92.933.0053.0
- EAN / GTIN
- 4015573402539
- Sales unit
- pcs
- Package quantity
- 50 pcs
- Voltage
- 230 V
- Rated voltage
- 250 V
- Rated current
- 20 A
- Number of poles
- 3
- Degree of protection (IP)
- IP20
- Connection type
- Spring clamp connection
- Model
- Bus
- Cable diameter
- 7.8–10.3 mm
- Connection cross section (fine-strand)
- 0.5–1.5 mm²
- Number of connections per pole
- 2
- Pole codification
- L, N, PE
- Mechanical coding
- Yes
- Colour coding/contact insert
- White
- Type of locking
- Integrated in plug-in connector
- With strain relief
- Yes
- Max. continuous temperature resistance contact part
- 100 °C
- Max. continuous temperature resistance strain relief
- 100 °C
- Housing material
- Polyamide (PA)
- Halogen free
- Yes
- Fire load
- 0.12 kWh
- Contact material
- CuZn
- Surface treatment contacts
- Tinned
- Pollution degree
- 2
- Rated surge voltage
- 4 kV
- Length
- 75 mm
- Height
- 15.5 mm
- Width
- 32.5 mm
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 4015573402539
- SAP 1000019372
- Code 8148566
Product Documentation
