Ebeco
Insulating Plate Cable Board
Part number8960180EAN / GTIN7330778601806HS code8544.42
Cables & Wiring
Installation Cables
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description

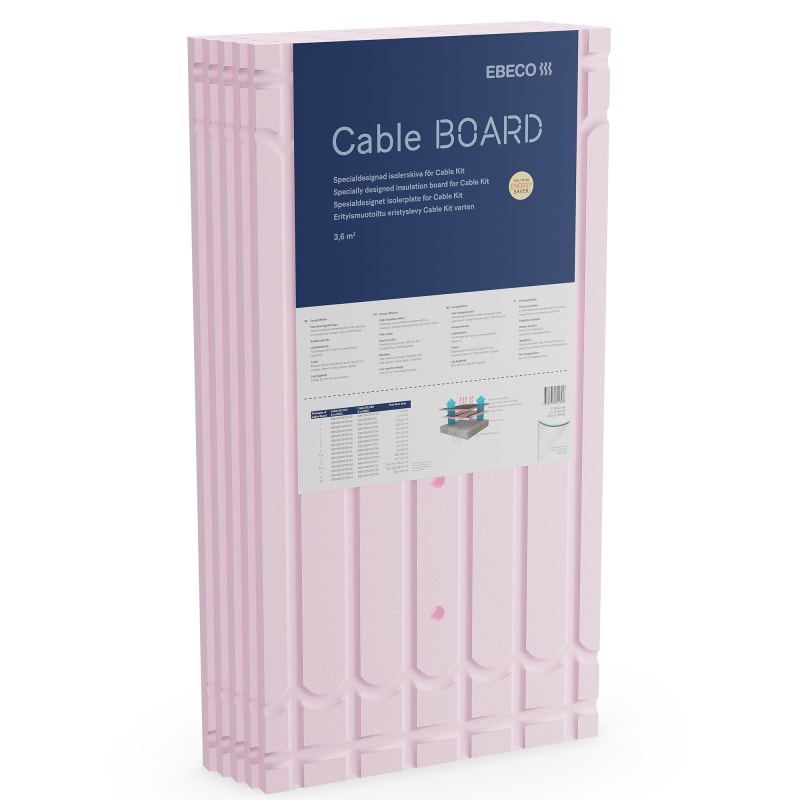

Ebeco 8960180 Cable Board, insulating plate for flis- and natursteinsgulv, 3,6 m².
Technical Specifications
- Manufacturer part number (MPN)
- 8960180
- EAN / GTIN
- 7330778601806
- HS code
- 8544.42
- Sales unit
- pcs
- Package quantity
- 5 pcs
- Thermal insulation
- Yes
- Acoustic insulation
- Yes
- Suitable for pitched roof
- No
- Suitable for wall
- No
- Suitable for facade
- No
- Suitable for ceiling
- No
- Suitable for floor
- Yes
- Suitable for underground installation
- No
- Suitable for duct mounting
- No
- Material
- Extruded polystyrene (XPS)
- Model
- Plate
- Upholstery front/top vapor-tight
- No
- Material upholstery front/top
- None
- Halogen free
- Yes
- Upholstery rear/bottom damp proof
- No
- Material upholstery rear/bottom
- None
- With nail flange (reinforced fixation strip)
- No
- With decorative finish
- No
- Length
- 1200 mm
- Width
- 600 mm
- Thickness
- 20 mm
- With fall
- No
- Fall
- 0 mm/m
- Edge finish
- Recessed edge
- Thermal conductivity
- 0.034 W/(m.K)
- Heat resistance Rd
- 0.6 (m².K)/W
- Density
- 132 kg/m³
- Operating temperature
- 75 °C
- With angle fillet
- No
- Self-adhesive
- No
- Euro fire class according to EN 13501-1
- F
- Compressive strength short-term load
- 200 kN/m²
- Compressive strength long-term load
- 90 kN/m²
- Suitable for tube mounting
- No
Standards & Compliance
- HS Code
- 8544.42
Cross References
- EAN 7330778601806
- SAP 1200457238
- Code 82514095
Product Documentation
Document preview: Insulating Plate Cable Board (8960180) — Specification sheet
