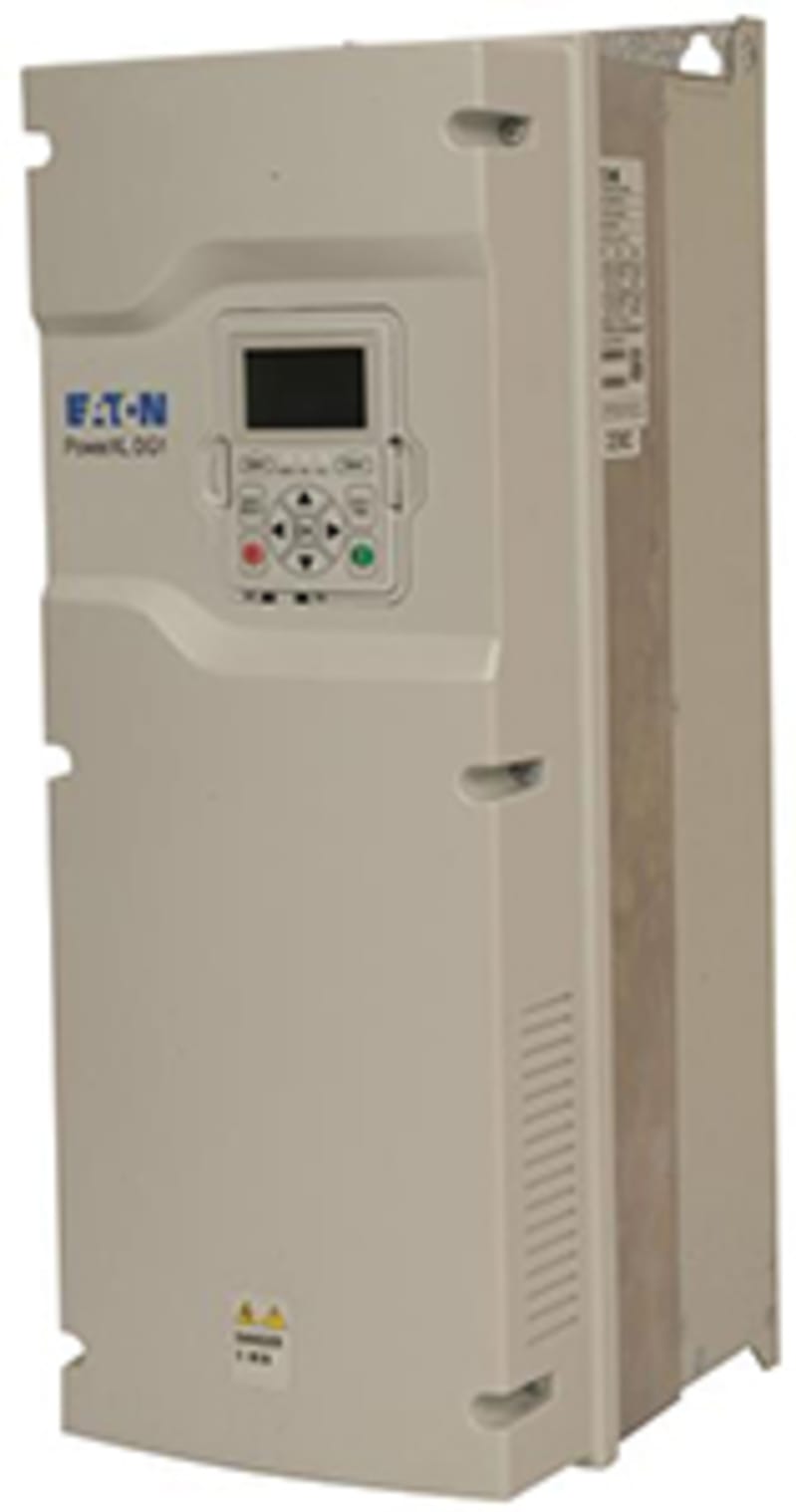

Eaton PowerXL DG1 VFD 22kW 400V 3-Phase (DG1-34046FB-C21C)
Eaton · Drives & Motors · Variable Frequency Drives
Eaton DG1-34046FB-C21C, catalog identifier for the specific configuration. PowerXL DG1 VFD, 22 kW / 46A output, 400-480V 3-phase. Operating range -10 to +50 °C, IP20 enclosure. P/N DG1-34046FB-C21C. Used in industrial automation cabinets, process control panels and factory line stations under IEC 61131-3 programmable-control frameworks. Manufacturer: Eaton. Manufacturer part number: DG1-34046FB-C21C. Available on quote-to-invoice terms via cBallast. Lead time and freight are quoted per RFQ against destination Incoterm.
Specifications
- Part number
- DG1-34046FB-C21C
- HS code
- 8504.40
- Dimensions
- 390 x 190 x 280 mm
- Weight
- 13.5 kg
- Temperature range
- -10 to +50 °C
- IP rating
- IP20
- Standard
- IEC/EN 61800-5-1, IEC/EN 61800-3
Standards
- IEC 61800-3
- IEC 61800-5-1
- EN 60034
Approvals
