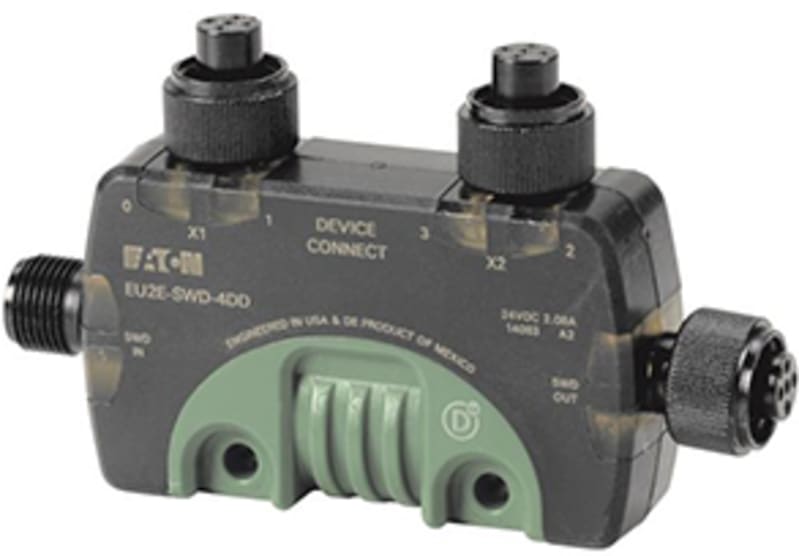

Digital module 4 in/out

Eaton Digital module 4 in/out (part number EU2E-SWD-4DD) is listed under Control & Automation / I/O Modules. Sales unit: pcs; Eaton catalogue number: 174732; Depth: 98 mm; Height: 20.1 mm; Width: 56.9 mm; Weight: 0.085 kg.

Manufacturer part number (MPN)

EU2E-SWD-4DD

EAN / GTIN

4015081712182

Sales unit

pcs

Eaton catalogue number

174732

Depth

98 mm

Height

20.1 mm

Width

56.9 mm

Weight

0.085 kg

Certifications

UL; UL File No.: E170645; CSA; IEC/EN 61131-2

Catalog Notes

Plug configuration (X1: 2 I/O

X2

2 I/O)

Constant acceleration

1 g, 8.4 - 150 Hz, according to IEC/EN 61131-2, Vibrations

Constant amplitude

3,5 mm, 5 - 8.4 Hz, according to IEC/EN 61131-2, Vibrations

Drop and topple

50 mm Drop height, Drop to IEC/EN 60068-2-31

Height of fall (IEC/EN 60068-2-32) - max

0.3 m

Mounting position

As required

Shock resistance

30 g, Mechanical, according to IEC/EN 60068-2-27, Half-sinusoidal shock 11 ms, 9 Impacts

Air pressure

795 - 1080 hPa (operation)

Ambient operating temperature - max

70 °C

Ambient storage temperature - max

70 °C

Ambient operating temperature - min

-25 °C

Ambient storage temperature - min

-40 °C

Climatic proofing

Damp heat, constant, to IEC 60068-2-3; Dry heat to IEC 60068-2-2

Environmental conditions

Condensation: permissible

Operating temperature - max

70 °C

Operating temperature - min

-25 °C

Relative humidity

5 - 95 % (non-condensing, IEC/EN 60068-2-30)

Connection to SmartWire-DT

Yes

Connection type

SWD-IN : M12 plug (A-keyed), 5 pole; 5-pin M12 socket (A-keyed)

Supply and I/O sensor; SWD-OUT

M12 socket (A-keyed), 5 pole

Data transfer rate

2 MBit/s, SmartWire-DT; Setting automatically

LED indicator

Status indication of input: Yellow LED; Status indication of display outputs: Yellow LED; Status indication of SmartWire-DT network: Green LED

Protocol

Other bus systems

Station

SmartWire-DT slave, SmartWire-DT network

Static heat dissipation, non-current-dependent Pvs

1.8 W

Input current

4 mA (at 24 V DC, Digital inputs)

Input current at signal 1

4 mA

Output current

0.5 A

Power loss

1.8 W

Short-circuit protection

Outputs are short-circuit proof

Short-circuit tripping current

Max. 1.2 A over 3 ms, Digital semi-conductor outputs

Supply voltage at DC - max

28.8 VDC

Air discharge

8 kV, according to IEC 61131-2, level 3, ESD

Burst impulse

1 kV, SmartWire-DT cable, according to IEC/EN 61131-2, Level 3; 1 kV, Signal cable, according to IEC/EN 61131-2, Level 3; 2 kV, Supply cable, according to IEC/EN 61131-2, Level 3

Contact discharge

4 kV, according to IEC/EN 61131-2, Level 2, ESD

Electromagnetic fields

10 V/m at 80 - 1000 MHz (according to IEC/EN 61131-2:2008); 3 V/m at 1.4 - 2 GHz (according to IEC/EN 61131-2:2008); 1 V/m at 2.0 - 2.7 GHz (according to IEC/EN 61131-2:2008)

Radiated RFI

10 V (IEC/EN 61131-2:2008, Level 3)

Radio interference class

Class A (EN 55011)

Surge rating

0.5 kV, Surge power cables, Surge (IEC/EN 61131-2:2008, Level 1), EMC; 1 kV, Surge I/O cables, Surge (IEC/EN 61131-2:2008, Level 1), EMC

Electric connection type

Screw connection

Features

Fieldbus connection over separate bus coupler possible; Digital inputs configurable; Overload proof (with diagnostics); Digital outputs configurable; Overload protection (sensor supply); Short-circuit protection (sensor supply); Fieldbus connection over separate bus coupler possible

Functions

Short-circuit protection, outputs available; For connection of digital I/O signals

Current consumption

70 mA, Max. current consumption per M12 I/O plug, Sensor supply, SmartWire-DT network; 75 mA, SmartWire-DT network, 24 V, without sensor and without I/O supply

Degree of protection

IP69K

Mounting method

Rail mounting possible; Wall mounting/direct mounting; DIN rail; Mounting section (Clip M20); Screw fixing (M4)

Overvoltage category

II

Pollution degree

3

Product category

SmartWire-DT slave

Type

Digital modules

Voltage type

DC

Input

Max. 4 Freely configurable inputs/outputs

Input delay

< 0.2 ms

Lamp load

≤ 3 W (at RLL)

Limit value type 1

High: > 15 V DC; Low: < 5 V DC

Number of inputs (digital)

4

Number of outputs (digital)

4

Output

Max. 4 Freely configurable inputs/outputs; Max. 4 Transistor Outputs

Switching capacity

IEC/EN 60947-5-1, utilization category DC-13, Digital outputs

Explosion safety category for dust

None

Explosion safety category for gas

None

Potential isolation

Inputs for SmartWire-DT: no; Input to input: no; Output to output: no; Output to input: no; Between Outputs to SmartWire-DT: no

Certified for UL hazardous location division 1

No

Certified for UL hazardous location division 2

No

Certified for UL hazardous location group A (acetylene)

No

Certified for UL hazardous location group B (hydrogen)

No

Certified for UL hazardous location group C (ethylene)

No

Certified for UL hazardous location group D (propane)

No

Certified for UL hazardous location group E (metal dusts)

No

Certified for UL hazardous location class I

No

Certified for UL hazardous location class II

No

Certified for UL hazardous location class III

No

Supporting protocol for EtherCAT

No

Supply voltage DC

0–28.8 V

Number of digital inputs

4

Number of digital outputs

4

Digital inputs configurable

Yes

Digital outputs configurable

Yes

Permitted voltage at input

20.4–28.8 V

Type of voltage (input voltage)

DC

Permitted voltage at output

20.4–28.8 V

Type of output voltage

DC

Short-circuit protection, outputs available

Yes

With optical interface

No

Supporting protocol for TCP/IP

No

Supporting protocol for PROFIBUS

No

Supporting protocol for CAN

No

Supporting protocol for INTERBUS

No

Supporting protocol for ASI

No

Supporting protocol for KNX

No

Supporting protocol for Modbus

No

Supporting protocol for Data-Highway

No

Supporting protocol for DeviceNet

No

Supporting protocol for SUCONET

No

Supporting protocol for LON

No

Supporting protocol for PROFINET IO

No

Supporting protocol for PROFINET CBA

No

Supporting protocol for SERCOS

No

Supporting protocol for Foundation Fieldbus

No

Supporting protocol for EtherNet/IP

No

Supporting protocol for AS-Interface Safety at Work

No

Supporting protocol for DeviceNet Safety

No

Supporting protocol for INTERBUS-Safety

No

Supporting protocol for PROFIsafe

No

Supporting protocol for SafetyBUS p

No

Supporting protocol for other bus systems

Yes

Radio standard Bluetooth

No

Radio standard WLAN 802.11

No

Radio standard GPRS

No

Radio standard GSM

No

Mobile communications standard 3G (UMTS)

No

HS Code

8538.90

• EAN 4015081712182
• SAP 1000799410
• Code 81439323
