Eaton

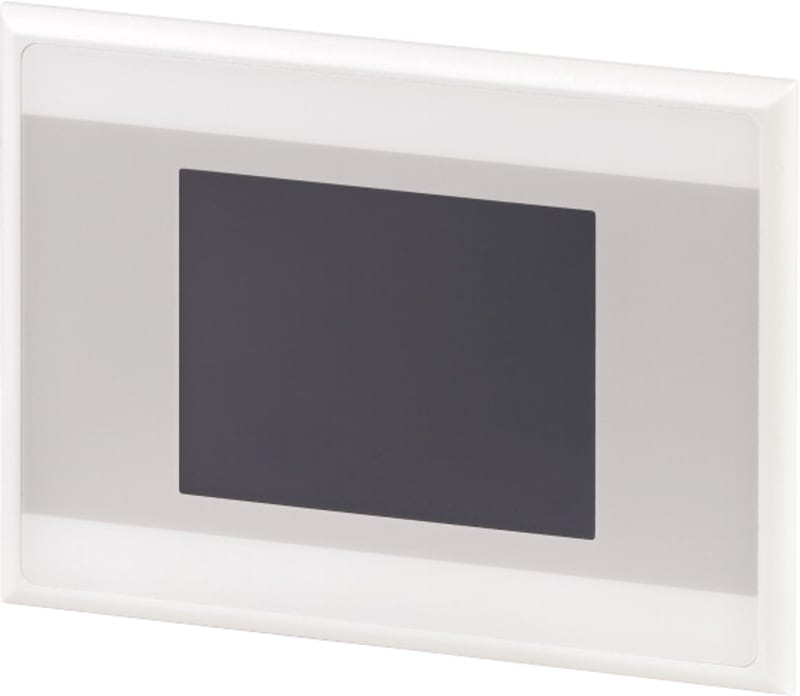

3.5"TFT,Mono,res.,QVGA,RS232,C (XV102B535MQR10PLC)
Part numberXV102B535MQR10PLCEAN / GTIN7640130095717HS code8537.10
Control & Automation
HMIs & Displays
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Eaton XV102B535MQR10PLC XV-102-B5-35MQR-10-PLC.
Technical Specifications
- Manufacturer part number (MPN)
- XV102B535MQR10PLC
- EAN / GTIN
- 7640130095717
- Sales unit
- pcs
- Power consumption
- 5 W
- Certified for UL hazardous location division 1
- No
- Certified for UL hazardous location division 2
- No
- Certified for UL hazardous location group A (acetylene)
- No
- Certified for UL hazardous location group B (hydrogen)
- No
- Certified for UL hazardous location group C (ethylene)
- No
- Certified for UL hazardous location group D (propane)
- No
- Certified for UL hazardous location group E (metal dusts)
- No
- Certified for UL hazardous location class I
- No
- Certified for UL hazardous location class II
- No
- Certified for UL hazardous location class III
- No
- Supporting protocol for EtherCAT
- No
- Supply voltage DC
- 20.4–28.8 V
- Voltage type (supply voltage)
- DC
- Number of HW-interfaces industrial Ethernet
- 1
- Number of HW-interfaces RS-232
- 1
- Number of HW-interfaces USB
- 1
- With SW interfaces
- Yes
- Supporting protocol for TCP/IP
- Yes
- Supporting protocol for PROFIBUS
- No
- Supporting protocol for CAN
- Yes
- Supporting protocol for INTERBUS
- No
- Supporting protocol for ASI
- No
- Supporting protocol for KNX
- No
- Supporting protocol for Modbus
- Yes
- Supporting protocol for Data-Highway
- No
- Supporting protocol for DeviceNet
- No
- Supporting protocol for SUCONET
- No
- Supporting protocol for LON
- No
- Supporting protocol for PROFINET IO
- No
- Supporting protocol for PROFINET CBA
- No
- Supporting protocol for SERCOS
- No
- Supporting protocol for Foundation Fieldbus
- No
- Supporting protocol for EtherNet/IP
- Yes
- Supporting protocol for AS-Interface Safety at Work
- No
- Supporting protocol for DeviceNet Safety
- No
- Supporting protocol for INTERBUS-Safety
- No
- Supporting protocol for PROFIsafe
- No
- Supporting protocol for SafetyBUS p
- No
- Supporting protocol for other bus systems
- Yes
- Radio standard Bluetooth
- No
- Radio standard WLAN 802.11
- No
- Radio standard GPRS
- No
- Radio standard GSM
- No
- Mobile communications standard 3G (UMTS)
- No
- IO link master
- No
- Type of display
- TFT
- Colour display
- No
- Number of colours of the display
- 32
- Number of grey-scales/blue-scales of display
- 32
- Screen diagonal
- 3.5 inch
- Number of pixels, horizontal
- 320
- Number of pixels, vertical
- 240
- Usable project memory/user memory
- 64000 kByte
- With numeric keyboard
- Yes
- With alpha numeric keyboard
- Yes
- Number of system buttons
- 1
- Touch technology
- Resistive touch
- With touch screen
- Yes
- With message indication
- Yes
- With message system (incl. buffer and confirmation)
- Yes
- Process value representation (output) possible
- Yes
- Process default value (input) possible
- Yes
- With recipes
- Yes
- Number of password levels
- 200
- With printer output
- Yes
- Number of online languages
- 100
- Additional software components, loadable
- Yes
- Degree of protection (IP), front side
- IP65
- Operating temperature
- 0–50 °C
- Suitable for rail mounting
- No
- Wall mounting/direct mounting
- No
- Suitable for safety functions
- No
- Width of the front
- 136 mm
- Height of the front
- 100 mm
- Built-in depth
- 25 mm
- Country of origin
- Czechia
Standards & Compliance
- HS Code
- 8537.10
Cross References
- EAN 7640130095717
- SAP 1000363011
- Code 8414480
Product Documentation
Document preview: 3.5"TFT,Mono,res.,QVGA,RS232,C (XV102B535MQR10PLC) — Specification sheet
More from Eaton
Eaton
Terminal block 1X16 mm² blue
BPZ-KC-1/16N-ALU
Eaton
Adapt.Darw F.m for 2ELEMENT
M22-SWD-A4
Eaton
LED Strobe light, Red, 230V (SL7-FL230-R)
Eaton

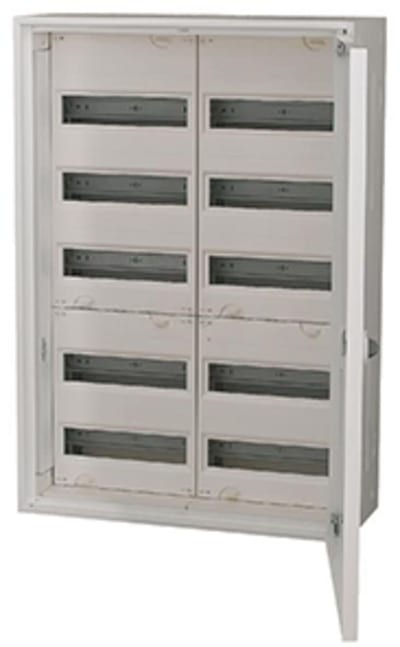

Wall-mount cabinet EWK 120 mod H800 B550 D225
EWK-G25/31
Eaton

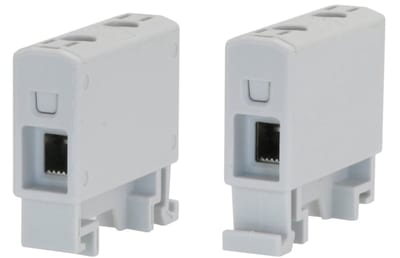

Terminal block 1X16 mm² grey
BPZ-KC-1/16-ALU
Eaton

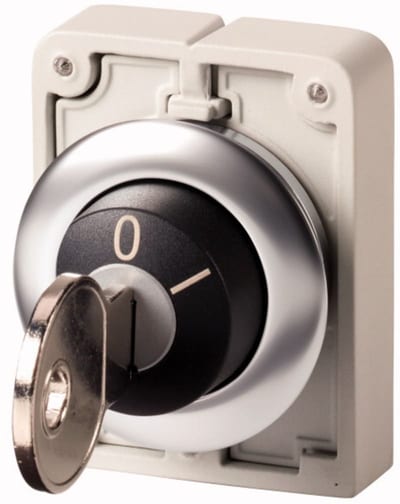

Key switch, Flat Front (M30C-FWS-MS2)
Eaton

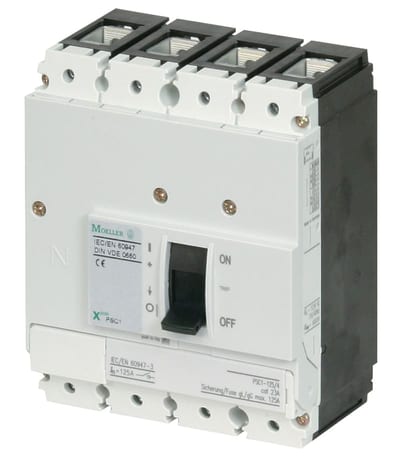

Eaton Load-break switch 4P 63A
