Eaton

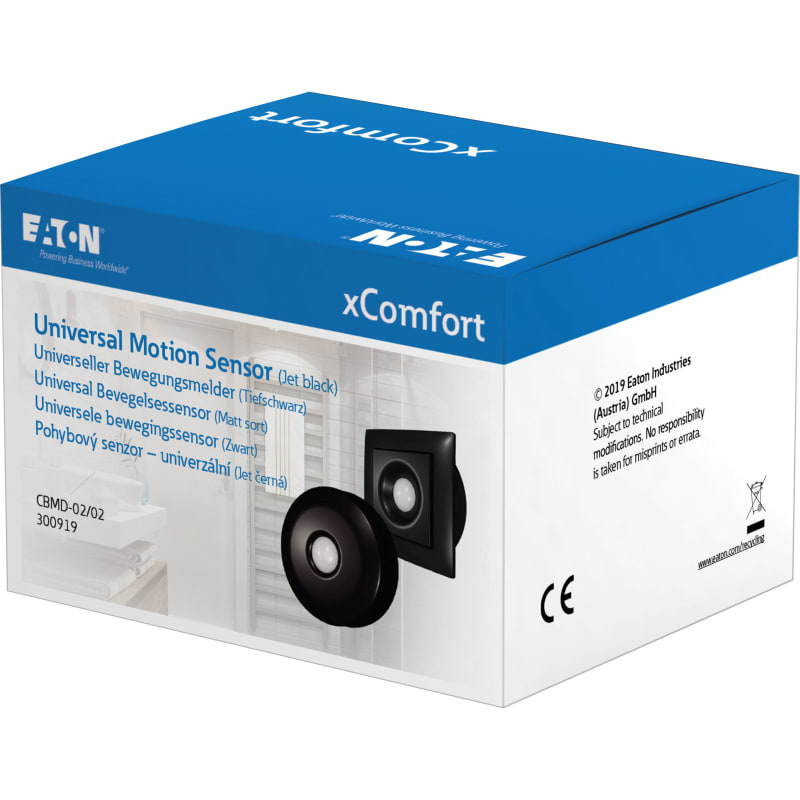

Universal Motion Sensor Black
Part numberCBMD-02/02EAN / GTIN9010238132535HS code8536.90
Lighting & Electrical Accessories
Motion Sensors
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Overview
Eaton Universal Motion Sensor Black (part number CBMD-02/02) is listed under Lighting & Electrical Accessories / Motion Sensors. HS code: 8536.90; Sales unit: pcs; Package quantity: 20 pcs; Product segment: Smart home; Eaton catalogue number: 300919; Depth: 91 mm.
Technical Specifications
- Manufacturer part number (MPN)
- CBMD-02/02
- EAN / GTIN
- 9010238132535
- HS code
- 8536.90
- Sales unit
- pcs
- Package quantity
- 20 pcs
- Product segment
- Smart home
- Eaton catalogue number
- 300919
- Depth
- 91 mm
- Height
- 30 mm
- Width
- 91 mm
- Weight
- 0.084 kg
- Compliances
- RoHS conform
- Features
- Radio frequent bidirectional; Response value luminosity adjustable
- Bus system operating type
- Radio frequent; xComfort
- Bus system product type
- Sensor
- Number of channels
- 2
- Built-in depth
- 16.7 mm
- Built-in diameter
- 50 mm
- Built-in installation box depth - min
- 20 mm
- Built-in length
- 50 mm
- Built-in width
- 50 mm
- Detection angle (horizontal) - max
- 90 °
- Detection angle (horizontal) - min
- 90 °
- Detection angle (vertical) - max
- 90 °
- Detection angle (vertical) - min
- 90 °
- Duty cycle - max
- 120 min
- Floor detection range diameter
- 5 m
- Mounting height (optimum)
- 2.5 m
- Number of inputs (binary)
- 0
- Surface finishing
- Matt
- Color
- Black
- Power supply
- Mains; Battery
- Surface protection
- Untreated
- Material quality
- Thermoplastic
- Sensor type
- Motion; Presence
- Diameter sensor
- 70 mm
- Transmission range frontally - max
- 4 m
- RAL-number (Akin)
- 9005
- Switch-on time - min
- 3 s
- Transmission range sideways - max
- 4 m
- Mounting method
- Built-in; Surface mounting; Other
- Material
- Plastic
- Model
- Movement sensor
- Suitable for
- Ceiling mounting; Wall mounting
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 9010238132535
- SAP 1200423460
- Code 82457603
Product Documentation
Document preview: Universal Motion Sensor Black (CBMD-02/02) — Specification Data Sheet (OEM)
