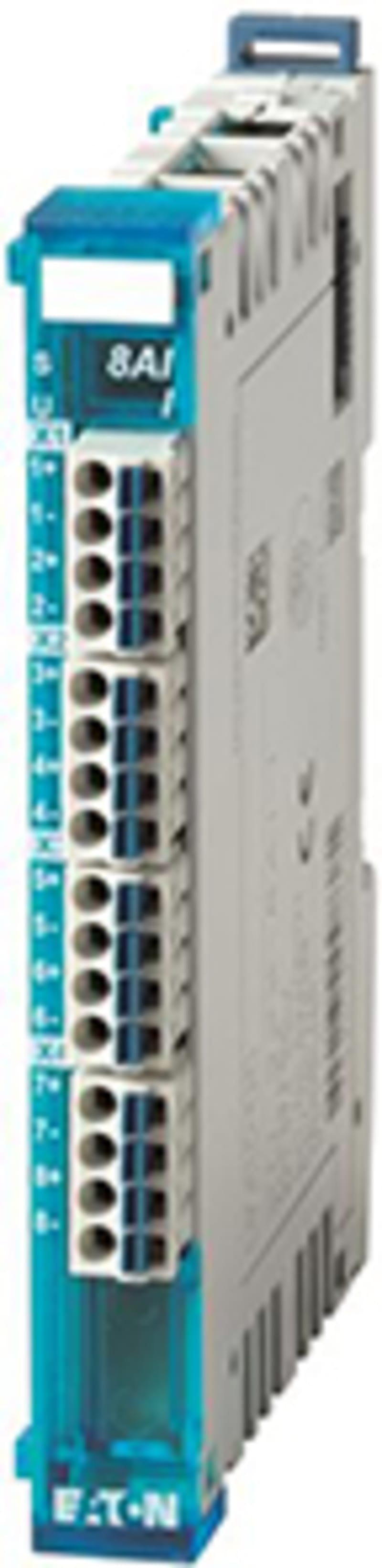

Analog input module; 8 current inputs

Eaton 179288 Serial interface module, via standard RS232 and RS485.

Manufacturer part number (MPN)

179288

EAN / GTIN

7640130098381

Sales unit

pcs

Eaton catalogue number

179288

Depth

104.2 mm

Height

16.8 mm

Width

80.3 mm

Weight

0.056 kg

Certifications

UL File No.: E135462; cULus; CE; EN 61131-2; EN 61000-6-2; EN 61000-6-4; UL508; CSA-C22.2 No. 142-M

Catalog Notes

The max. heat dissipation is specified as the maximum power produced inside the device's housing.

Height of fall (IEC/EN 60068-2-32) - max

1 m

Mounting position

Horizontal

Shock resistance

15 g, Mechanical, Half-sinusoidal shock 11 ms, 18 Impacts

Vibration resistance

5 - 8.4 / 8.4 -150 Hz, 3,5 mm / 1 g

Air pressure

795 - 1080 hPa (operation)

Ambient operating temperature - max

60 °C

Ambient storage temperature - max

85 °C

Ambient operating temperature - min

0 °C

Ambient storage temperature - min

-20 °C

Climatic proofing

Dry heat to IEC 60068-2-2; Damp heat, constant, to IEC 60068-2-3

Environmental conditions

Condensation: prevent with appropriate measures

Relative humidity

0 - 95 % (non-condensing)

Connection type

2 conductors, Current measurement; Push-in spring-cage terminal (plug-in connection), Connection design in TOP direction

Protocol

Other bus systems

Heat dissipation per pole, current-dependent Pvid

0.97 W

Static heat dissipation, non-current-dependent Pvs

1.485 W

Rated operational voltage

160 V (terminations)

Supply voltage at DC - max

30 VDC

Supply voltage at DC - min

18 VDC

Air discharge

8 kV

Burst impulse

2 kV, Supply cable; 1 kV, Signal cable

Contact discharge

4 kV

Electromagnetic fields

10 V/m at 0.08 - 1.0 GHz (according to IEC EN 61000-4-3); 1 V/m at 2 - 2.7 GHz (according to IEC EN 61000-4-3); 3 V/m at 1.4 - 2 GHz (according to IEC EN 61000-4-3)

Emitted interference

40 dB (at 30 - 230 MHz, Class A, radiated, high frequency); 47 dB (at 230 - 1000 MHz, Class A, radiated, high frequency)

Radiated RFI

10 V

Surge rating

1 kV, Signal cable, unbalanced, EMC; 0.5/0.5 kV, Supply cable, balanced/unbalanced), EMC

Voltage dips

Voltage dips: 10 ms/Voltage fluctuations: Yes

Current measurement

50 Ω typ., input resistance; 0 - 20 mA; 4 - 20 mA

Electric connection type

Plug-in connection

Features

Fieldbus connection over separate bus coupler possible; Analog outputs configurable; Input, current; Analog inputs configurable; Input signal, configurable; Fieldbus connection over separate bus coupler possible

Fitted with

Parameterizable Software input filter; 1 kHz, third-order low-pass input filter

Value representation

SIGNED16, Current measurement

Current consumption

30 mA (typ.), for +24 V, Power supply - Input; 50 mA (typ.), for +5 V power supply (internal), Power supply - Input

Degree of protection

IP20; NEMA 1

Limit frequency

1 kHz (third-order low-pass filter)

Mounting method

Rail mounting possible

Number of channels

8, Analog Inputs

Overvoltage category

III

Pollution degree

3

Product category

XN-322 analog input module

Resolution

16 Bit (Analog inputs)

Type

XN300 I/O slice module

Used with

XN-312-…; XN300

Voltage type

DC

Accuracy

± 0.5 % of full scale, Current measurement

Input

8 Analog current inputs (0/4 - 20 mA)

Input current

Max. 100 mA

Load current

Not specified by plug manufacturer

Measured variables

Current

Number of inputs (analog)

8

Number of outputs (analog)

0

Value refresh time/cycle time

Min. 1 / 1 ms (per channel / all channels), Analog Inputs

Explosion safety category for dust

None

Explosion safety category for gas

None

Potential isolation

Analog inputs: no

Gauge pin

A1 (according to IEC/EN 60947-1)

Insulating material group

I

Stripping length (main cable)

10 mm

Power consumption

0.6 W

Certified for UL hazardous location division 1

No

Certified for UL hazardous location division 2

No

Certified for UL hazardous location group A (acetylene)

No

Certified for UL hazardous location group B (hydrogen)

No

Certified for UL hazardous location group C (ethylene)

No

Certified for UL hazardous location group D (propane)

No

Certified for UL hazardous location group E (metal dusts)

No

Certified for UL hazardous location class I

No

Certified for UL hazardous location class II

No

Certified for UL hazardous location class III

No

Supporting protocol for EtherCAT

No

Supply voltage DC

18–30 V

Input, voltage

No

Input, resistor

No

Input, resistance thermometer

No

Input, thermocouple

No

Input signal, configurable

Yes

Resolution of the analogue inputs

16 Bit

Output, current

No

Output, voltage

No

Output signal configurable

No

Number of analogue inputs

8

Analogue inputs configurable

Yes

Analogue outputs configurable

Yes

Number of HW-interfaces other

1

Supporting protocol for TCP/IP

No

Supporting protocol for PROFIBUS

No

Supporting protocol for CAN

No

Supporting protocol for INTERBUS

No

Supporting protocol for ASI

No

Supporting protocol for KNX

No

Supporting protocol for Modbus

No

Supporting protocol for Data-Highway

No

Supporting protocol for DeviceNet

No

Supporting protocol for SUCONET

No

Supporting protocol for LON

No

Supporting protocol for PROFINET IO

No

Supporting protocol for PROFINET CBA

No

Supporting protocol for SERCOS

No

Supporting protocol for Foundation Fieldbus

No

Supporting protocol for EtherNet/IP

No

Supporting protocol for AS-Interface Safety at Work

No

Supporting protocol for DeviceNet Safety

No

Supporting protocol for INTERBUS-Safety

No

Supporting protocol for PROFIsafe

No

Supporting protocol for SafetyBUS p

No

Supporting protocol for other bus systems

Yes

Radio standard Bluetooth

No

Radio standard WLAN 802.11

No

Radio standard GPRS

No

Radio standard GSM

No

HS Code

8538.90

• EAN 7640130098381
• SAP 1200303859
• Code 82277501
