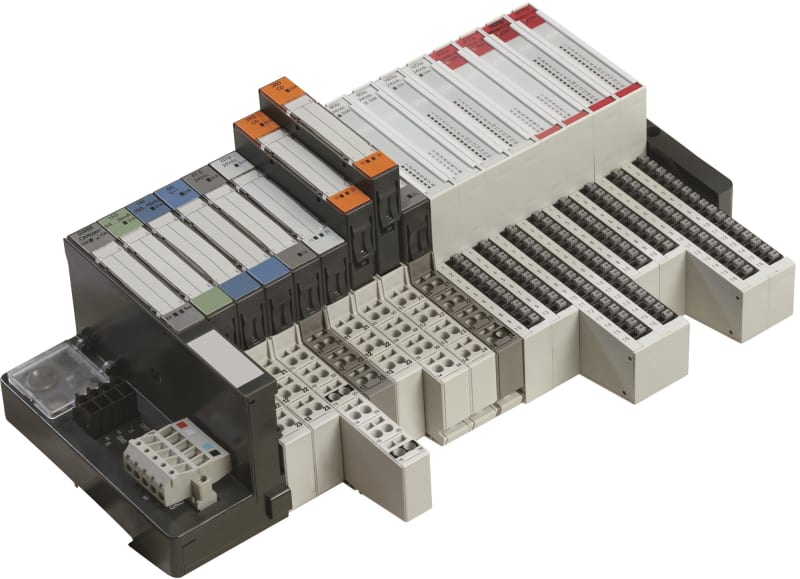

Eaton XN-B6T-SBCSBC

Eaton XN-B6T-SBCSBC is listed under Control & Automation / PLCs & Logic Relays. Sales unit: pcs; Eaton catalogue number: 140159; Depth: 154.5 mm; Height: 49.9 mm; Width: 100.8 mm; Weight: 0.466 kg.

Manufacturer part number (MPN)

XN-B6T-SBCSBC

EAN / GTIN

7640130120501

Sales unit

pcs

Eaton catalogue number

140159

Depth

154.5 mm

Height

49.9 mm

Width

100.8 mm

Weight

0.466 kg

Drop and topple

According to IEC 60068-2-31, free fall according to IEC 60068-2-32

Shock resistance

Continuous according to IEC/EN 60068-2-29; Mechanical, According to IEC/EN 60068-2-27

Vibration resistance

According to IEC/EN 60068-2-6

Ambient operating temperature - max

55 °C

Ambient operating temperature - min

0 °C

Environmental conditions

Harmful gasses - SO2: 10 ppm (relative humidity < 75%, no condensation); Harmful gasses - H2S: 1 ppm (relative humidity < 75%, no condensation)

Relative humidity

5 - 95 % (indoor, Level RH-2, non-condensing for storage at 45°C)

Connection

Connection to C rail

Connection type

Spring-loaded/screw terminal, Connection design in TOP direction

Number of slots

1

Air discharge

Air/contact discharge according to IEC/EN 61000-4-2

Burst impulse

According to IEC/EN 61000-4-4

Electromagnetic fields

According to IEC EN 61100-4-2

Emitted interference

30 - 230 MHz (radiated, high frequency, according to EN 55016-2-3); 230 - 1000 MHz (radiated, high frequency, according to EN 55016-2-3)

Radiated RFI

IEC/EN 61100-4-6

Surge rating

According to IEC/EN 61000-4-5 Level 4

Voltage dips

According to EN 61131-2 (Voltage fluctuations/voltage dips)

Fitted with

Pluggable modules, central modules; Pluggable modules, digital I/O

Degree of protection

IP20

Mounting method

Rail mounting possible

Number of connection levels

6

Type

XI/ON block base module

Used with

XN-32DO-24VDC-0.5A-P

Voltage type

DC

Explosion safety category for dust

None

Explosion safety category for gas

None

Potential isolation

Through optocoupler: yes

Gauge pin

A1 (according to IEC/EN 60947-1)

Stripping length (main cable)

8 mm

Terminal capacity

0.5 - 1.5 mm², with ferrules with plastic collar according to DIN 46228-1 (ferrules crimped gas-tight); 0.5 - 2.5 mm², solid, H07V-U; 0.5 - 1.5 mm², with ferrules without plastic collar according to DIN 46228-1 (ferrules crimped gas-tight); 0.5 - 1.5 mm², flexible without ferrule, H07V-K

With integrated power supply

No

Type of voltage (input voltage)

DC

Type of output voltage

DC

System accessory

Yes

With pluggable modules, digital I/O

Yes

With pluggable modules, analogue I/O

No

With pluggable modules, communication modules

No

With pluggable modules, function and technology modules

No

With pluggable modules, central modules

Yes

With pluggable modules, others

No

Suitable for rail mounting

Yes

Wall mounting/direct mounting

No

Front built-in possible

No

Rack-assembly possible

No

Suitable for safety functions

No

SIL according to IEC 61508

None

Performance level according to EN ISO 13849-1

None

Appendant operation agent (Ex ia)

No

Country of origin

Germany

HS Code

8538.90
