1 TELLEINNG.100KHZ 1 TRANSUTG.

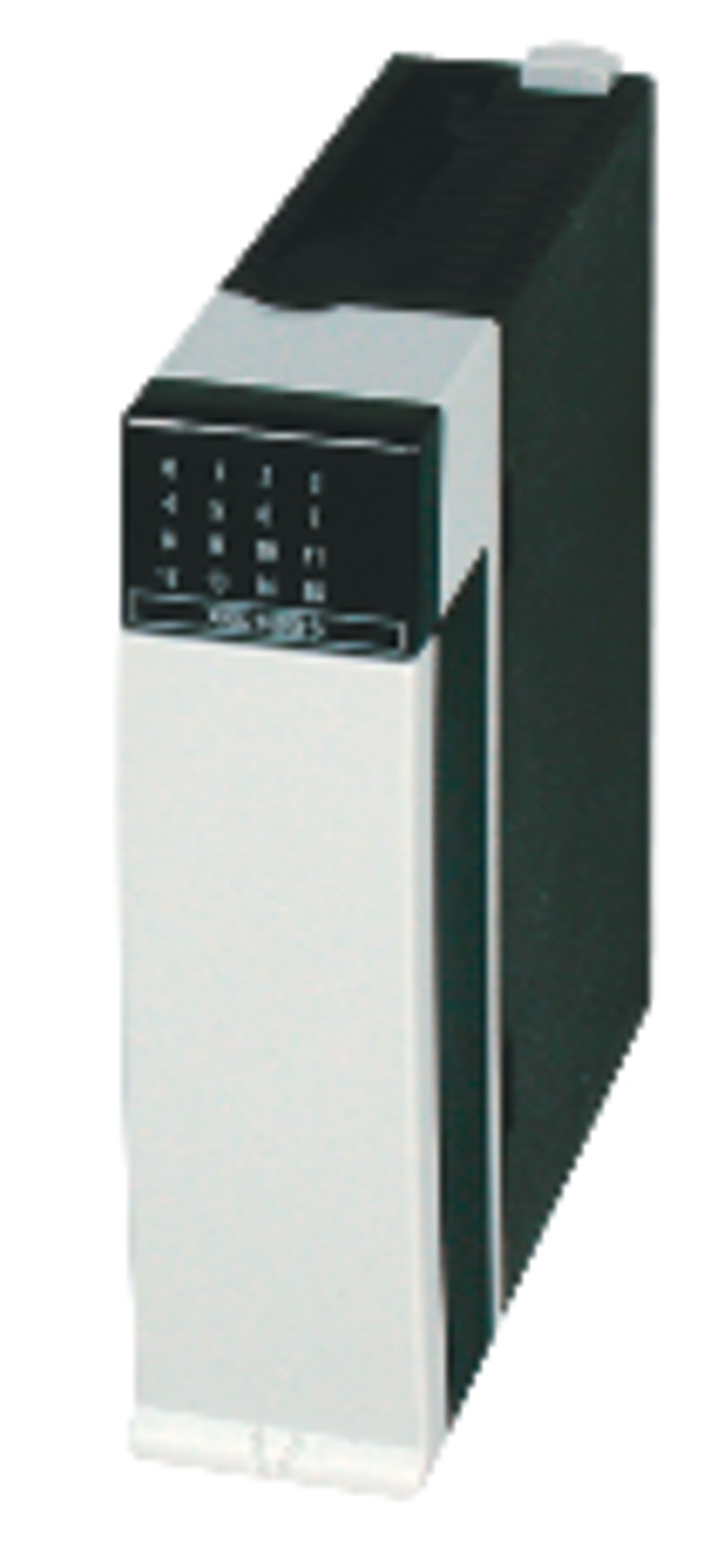

Eaton 1 TELLEINNG.100KHZ 1 TRANSUTG. (part number XIOC-1CNT-100KHZ) is listed under Control & Automation / PLCs & Logic Relays. HS code: 8537.10.

Manufacturer part number (MPN)

XIOC-1CNT-100KHZ EAN / GTIN: 4015082579067 Sales unit: pcs Eaton catalogue number: 257906 Depth: 100 mm Height: 95 mm Width: 30 mm Weight: 0.155 kg Certifications: UL; CE; UL Category Control No.: NRAQ; CSA File No.: 012528; IEC/EN 61131-2; EN 50178; UL File No.: E135462; CSA-C22.2 No. 142-M; UL508; CSA Class No.: 2252-01; CSA-C22.2 No. 0-M; CSA Impact resistance: 500 g/⌀ 50 mm ±25 g Shock resistance: 15 g, Mechanical, Shock duration 11 ms Vibration resistance: 10 - 57 Hz, ± 0.075 mm; 57 - 150 Hz ± 1.0 mm Ambient operating temperature - max: 55 °C Ambient storage temperature - max: 70 °C Ambient operating temperature - min: 0 °C Ambient storage temperature - min: -25 °C Connection: 30-pole plug: XIOC-TERM30-CNT4, Connection of external input (max. 30 m cable length), Inputs; Screened, twisted pair cable, Inputs; 30 pole connector required for counter module; Screened, twisted pair cable Output termination; Of external output: 30-pole plug XIOC-TERM30-CNT4 Static heat dissipation, non-current-dependent Pvs: 1.2 W Leakage current: 0.5 A Power loss: 1.2 W Rated control voltage (Uc): -5 - 8 V DC Rated operational current (Ie): 10 A Rated operational voltage: 24 (12) V DC Supply voltage at DC - max: 5 VDC Supply voltage at DC - min: 2 VDC Emitted interference: Class A (according to DIN/EN 55011/22) Voltage dips: 10 ms Functions: Single-axis controller possible; Single-axis positioning possible Admissible range: 20.4 – 28.8 V (11.8 – 14.4 V), Power supply Current consumption: 200 mA, Outputs; 200 mA (Ie), internal current consumption, Inputs Degree of protection: IP20 Overvoltage category: II Pollution degree: 2 Protection class: 1 Rated frequency: 100 (25 with four-fold resolution) Repetition rate: 1 s Residual ripple: ≤ 5 % Suitable for: Counting; Incremental data detection Type: Counter module Used with: XC100/200 (expandable with up to 15 XI/OC modules) Number of channels: 2, Output Counter limits: 0 - 4294967295 (32 bit) Delay time: 1 ms, Outputs, Delay time from 0 to 1, Debounce OFF; 1 ms, Outputs, Delay time from 1 to 0, Debounce OFF Input: 1 Input (up to 100 kHz, 24 V DC, 5 V DC); 1 analogue input Input current: 4 mA (high signal); Input B1-C: max. 35 A Input voltage: ± 5 V DC (differential); 12 - 24 V DC Load current: Min. 1 mA; Max. 20 mA (Ie) Output: Transistor (open collector); 2 digital Transistor Outputs Pulse characteristics: On ≥ 4 µs (minimum pulse width) Voltage drop (Ud): 1.5 V Explosion safety category for dust: None Explosion safety category for gas: None Potential isolation: Opto-isolated (Inputs); Outputs: Opto-isolated Terminals: Optionally, screw terminals or spring-loaded terminals for digital/analogue modules Number of functions: 1 Redundancy: No Suitable for counting: Yes Suitable for weighing: No Suitable for temperature control: No Suitable for welding control: No Suitable for pressure control: No Suitable for NC: No Suitable for electronic positioning: No Suitable for CNC: No Suitable for SSI: No Suitable for incremental data detection: Yes Suitable for detection absolute value: No Suitable for flux controller: No Suitable for flux measurement: No Suitable for path controller: No Suitable for cam controller: No Suitable for multi-axis control: No Suitable for single-axis controller: Yes Suitable for multi-axis positioning: No Suitable for single-axis positioning: Yes Suitable for safety functions: No SIL according to IEC 61508: None Performance level according to EN ISO 13849-1: None Appendant operation agent (Ex ia): No Country of origin: Japan

HS Code

8537.10

• EAN 4015082579067
• SAP 1200607247
• Code 82997728
