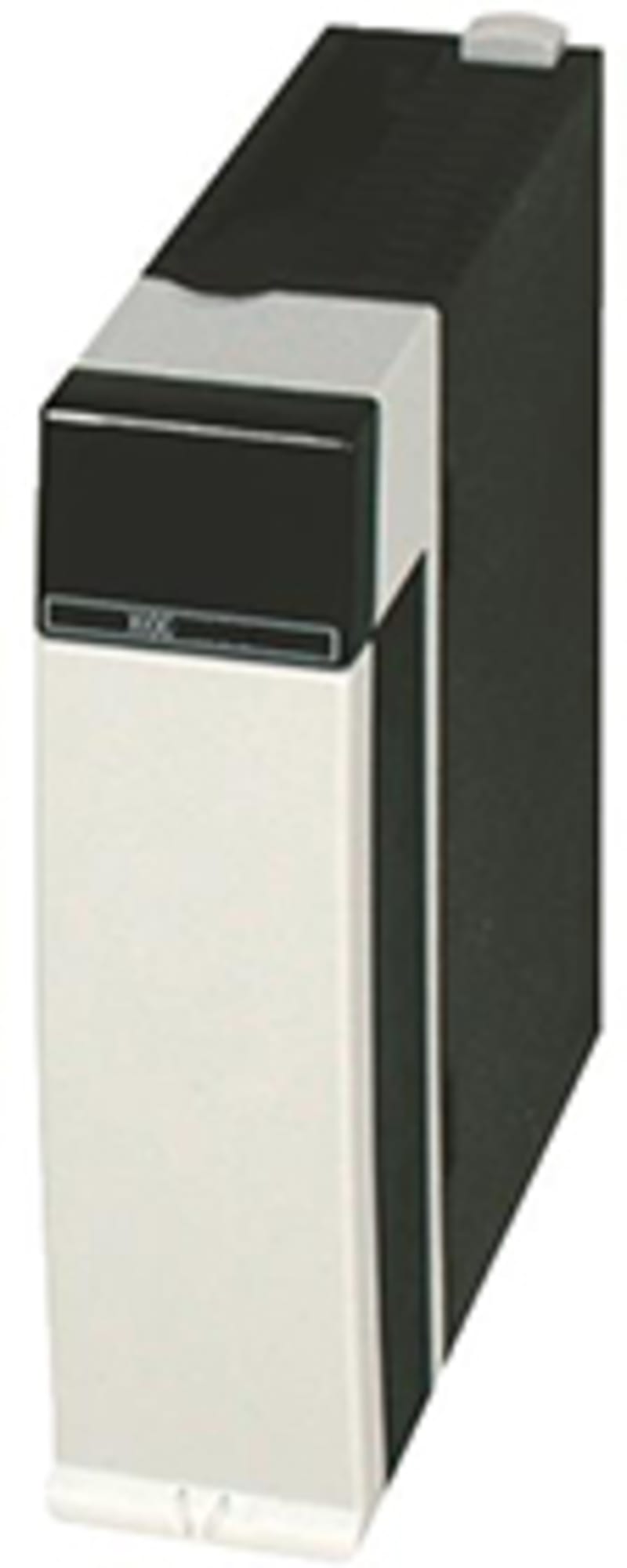

Eaton XIOC-4AI-2AO-U1 Analog I/O Module, 4 Inputs + 2 Outputs

Eaton XIOC-4AI-2AO-U1 analog I/O expansion module with four analog inputs and two analog outputs for XC100/200 PLC systems.

Manufacturer part number (MPN)

XIOC-4AI-2AO-U1

EAN / GTIN

4015082624057

Sales unit

pcs

Eaton catalogue number

262405

Depth

100 mm

Height

95 mm

Width

30 mm

Weight

0.115 kg

Certifications

UL508; CSA; IEC/EN 61131-2; CSA Class No.: 2252-01; UL File No.: E135462; CSA File No.: 012528; CSA-C22.2 No. 0-M; UL Category Control No.: NRAQ; EN 50178; CSA-C22.2 No. 142-M; CE; UL

Impact resistance

500 g/⌀ 50 mm ±25 g

Shock resistance

15 g, Mechanical, Shock duration 11 ms

Vibration resistance

10 - 57 Hz, ± 0.075 mm; 57 - 150 Hz ± 1.0 mm

Ambient operating temperature - max

55 °C

Ambient storage temperature - max

70 °C

Ambient operating temperature - min

0 °C

Ambient storage temperature - min

-25 °C

Connection type

Plug-in terminal block, Outputs

Interfaces

Terminating resistor: ≤ 2 kΩ

Static heat dissipation, non-current-dependent Pvs

1 W

Power loss

Max. 1 W

Rated operational voltage

24 (12) V DC

Short-circuit protection

Yes, Short-circuit rating, Outputs

Emitted interference

Class A (according to DIN/EN 55011/22)

Voltage dips

10 ms

Electric connection type

Screw-/spring clamp connection

Features

Input, voltage; Analog outputs configurable; Output, voltage; Analog inputs configurable

Admissible range

20.4 – 28.8 V (11.8 – 14.4 V), Power supply

Current consumption

100 mA (typ.), internal (5 V DC), Inputs; 200 mA, external, Outputs

Degree of protection

IP20

Overvoltage category

II

Pollution degree

2

Protection class

1

Repetition rate

1 s

Residual ripple

≤ 5 %

Resolution

12 Bit 14 Bit (Analog outputs, current)

Type

Analog module

Used with

XC100/200 (expandable with up to 15 XI/OC modules)

Number of channels

4, Input

Conversions

1 ms; < 1 ms

Input

4 Inputs (0 - 10 V)

Input impedance

40 kΩ

Input voltage

0 - 10 V DC (Input modules)

Number of inputs (analog)

4

Number of outputs (analog)

2

Output

2 Outputs (0 - 10 V)

Output voltage

0 - 10 V DC

Total error

Normally 0.4 %, Inputs/Outputs

Explosion safety category for dust

None

Explosion safety category for gas

None

Potential isolation

Analog outputs: no; Between Inputs and Outputs: no; Analog inputs: no

Terminals

Optionally, screw terminals or spring-loaded terminals for digital/analog modules Plug-in terminal block

Number of analogue inputs

4

Number of analogue outputs

2

Analogue inputs configurable

Yes

Analogue outputs configurable

Yes

Input, current

No

Input, resistor

No

Input, resistance thermometer

No

Input, thermocouple

No

Input signal, configurable

No

Resolution of the analogue inputs

14 Bit

Output, current

No

Output signal configurable

No

Resolution of the analogue outputs

12 Bit

Type of electric connection

Screw-/spring clamp connection

Suitable for safety functions

No

SIL according to IEC 61508

None

Performance level according to EN ISO 13849-1

None

Appendant operation agent (Ex ia)

No

Country of origin

Germany

HS Code

8538.90
