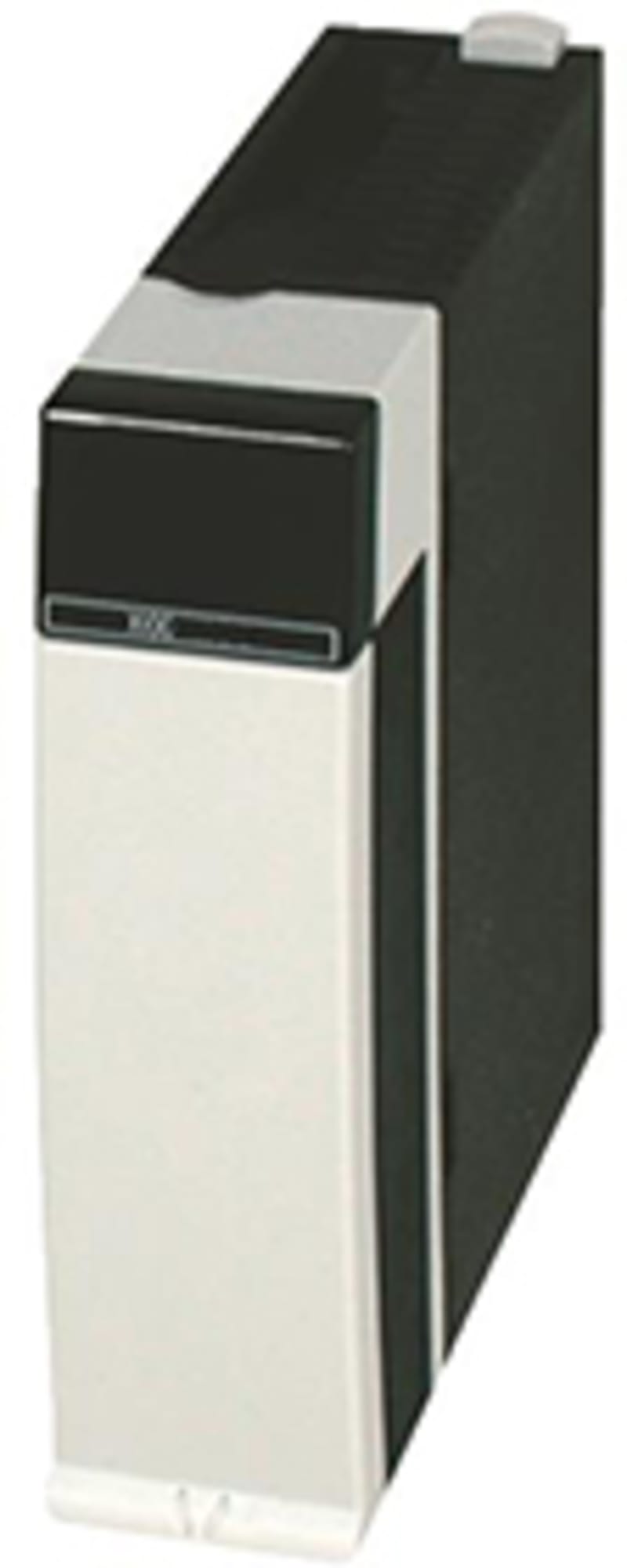

Eaton XIOC-8AI-U2 Analog Input Module, 8 Inputs +/-10 V

Eaton XIOC-8AI-U2 analog input expansion module with eight configurable +/-10 V voltage inputs for XC100/200 PLC systems.

Manufacturer part number (MPN)

XIOC-8AI-U2

EAN / GTIN

4015082579005

Sales unit

pcs

Eaton catalogue number

257900

Depth

100 mm

Height

95 mm

Width

30 mm

Weight

0.135 kg

Certifications

UL508; CSA-C22.2 No. 142-M; CSA; UL Category Control No.: NRAQ; IEC/EN 61131-2; UL File No.: E135462; CSA Class No.: 2252-01; EN 50178; CE; CSA File No.: 012528; CSA-C22.2 No. 0-M; UL

Impact resistance

500 g/⌀ 50 mm ±25 g

Shock resistance

15 g, Mechanical, Shock duration 11 ms

Vibration resistance

10 - 57 Hz, ± 0.075 mm; 57 - 150 Hz ± 1.0 mm

Ambient operating temperature - max

55 °C

Ambient storage temperature - max

70 °C

Ambient operating temperature - min

0 °C

Ambient storage temperature - min

-25 °C

Connection type

2-core screened cable (≤ 20 m)

Static heat dissipation, non-current-dependent Pvs

4.8 W

Power loss

Max. 0.5 W

Power supply

24 V DC (-15/+20 %), approx. 150 mA

Rated operational voltage

24 (12) V DC

Emitted interference

Class A (according to DIN/EN 55011/22)

Voltage dips

10 ms

Electric connection type

Screw-/spring clamp connection

Features

Input, voltage; Analog outputs configurable; Analog inputs configurable

Admissible range

20.4 – 28.8 V (11.8 – 14.4 V), Power supply

Current consumption

100 mA (typ.), internal (5 V DC), Inputs

Degree of protection

IP20

Overvoltage category

II

Pollution degree

2

Protection class

1

Repetition rate

1 s

Residual ripple

≤ 5 %

Resolution

12 Bit (digital)

Type

Analog module

Used with

XC100/200 (expandable with up to 15 XI/OC modules)

Number of channels

8, Input

Conversions

≤ 5 ms

Input

8 Inputs (±10 V)

Input impedance

100 kΩ

Input voltage

-10 - 10 V DC (Input modules)

Number of inputs (analog)

8

Number of outputs (analog)

0

Total error

≤ ±1 % (of the full-scale value), Inputs

Explosion safety category for dust

None

Explosion safety category for gas

None

Potential isolation

Analog inputs: Opto-isolated; Analog outputs: no

Terminals

Optionally, screw terminals or spring-loaded terminals for digital/analog modules Plug-in terminal block

Number of analogue inputs

8

Analogue inputs configurable

Yes

Analogue outputs configurable

Yes

Input, current

No

Input, resistor

No

Input, resistance thermometer

No

Input, thermocouple

No

Input signal, configurable

No

Resolution of the analogue inputs

12 Bit

Output, current

No

Output, voltage

No

Output signal configurable

No

Type of electric connection

Screw-/spring clamp connection

Suitable for safety functions

No

SIL according to IEC 61508

None

Performance level according to EN ISO 13849-1

None

Appendant operation agent (Ex ia)

No

Country of origin

Japan

HS Code

8537.10

• EAN 4015082579005
• SAP 1200303730
• Code 82277372
