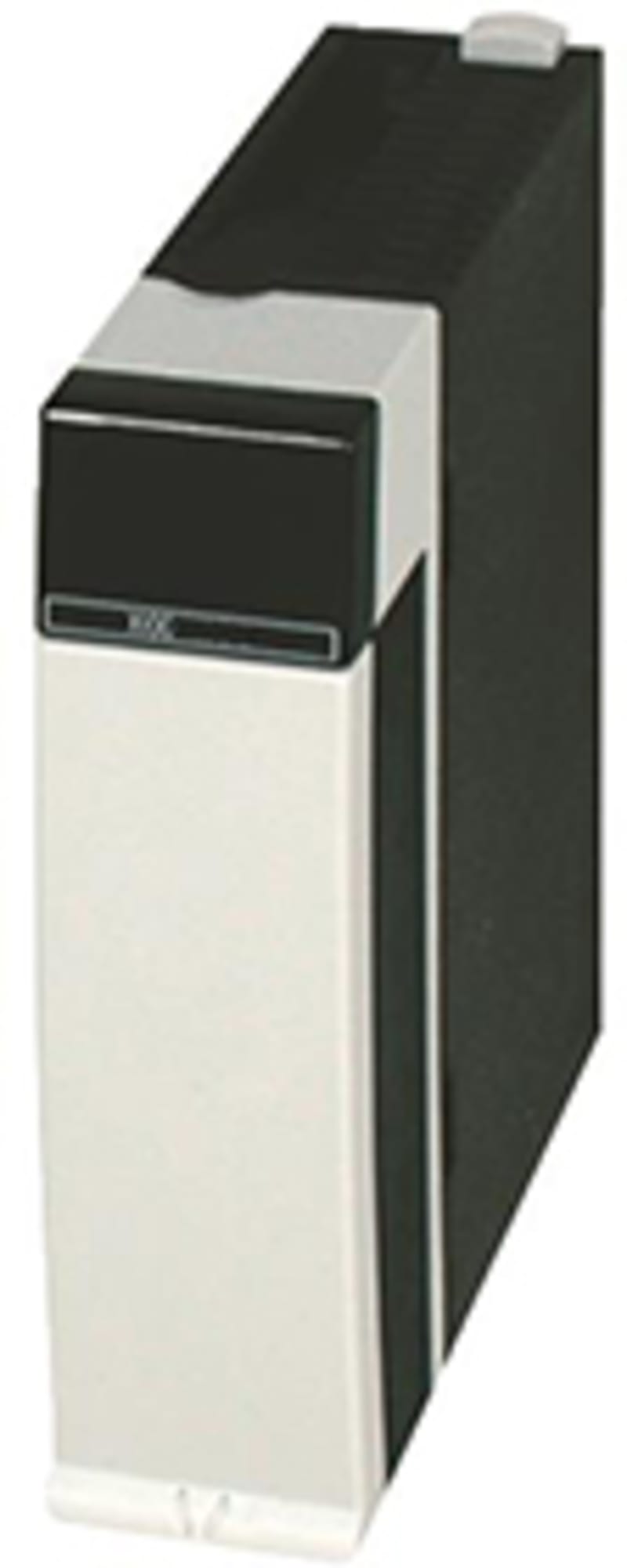

12 DIG.OUTPUT Relay (257897)

Eaton 12 DIG.OUTPUT Relay (257897) is listed under Control & Automation / I/O Modules. HS code: 8536.90; Sales unit: pcs; Eaton catalogue number: 257897; Depth: 100 mm; Height: 95 mm; Width: 30 mm.

Manufacturer part number (MPN)

257897

EAN / GTIN

4015082578978

HS code

8536.90

Sales unit

pcs

Eaton catalogue number

257897

Depth

100 mm

Height

95 mm

Width

30 mm

Weight

0.175 kg

Certifications

EN 50178; CSA; IEC/EN 61131-2; UL508; UL Category Control No.: NRAQ; CSA-C22.2 No. 142-M; CSA Class No.: 2252-01; CE; CSA File No.: 012528; CSA-C22.2 No. 0-M; UL File No.: E135462; UL

Impact resistance

500 g/⌀ 50 mm ±25 g

Shock resistance

15 g, Mechanical, Shock duration 11 ms

Vibration resistance

57 - 150 Hz ± 1.0 mm; 10 - 57 Hz, ± 0.075 mm

Ambient operating temperature - max

55 °C

Ambient storage temperature - max

70 °C

Ambient operating temperature - min

0 °C

Ambient storage temperature - min

-25 °C

Connection type

Plug-in terminal block, Power supply

LED indicator

Status indication: Green LED

Equipment heat dissipation, current-dependent Pvid

0 W

Heat dissipation capacity Pdiss

0 W

Heat dissipation per pole, current-dependent Pvid

0 W

Rated operational current for specified heat dissipation (In)

0 A

Static heat dissipation, non-current-dependent Pvs

0.2 W

Leakage current

0.1 A

Mains voltage tolerance

24 V DC (-15/+20 %, max. 70 mA)

Power loss

Max. 0.2 W

Rated control voltage (Uc)

100/240 V AC

Rated operational current (Ie)

5 A at AC-3, 230 V; 2 A at DC-13, 110 V

Rated operational voltage

24 (12) V DC

Short-circuit protection

Fuse, Outputs, External

Supply voltage at AC, 50 Hz - min

0 VAC

Supply voltage at DC - max

28.8 VDC

Supply voltage at DC - min

20.4 VDC

Emitted interference

Class A (according to DIN/EN 55011/22)

Voltage dips

10 ms

Electric connection type

Screw-/spring clamp connection

Functions

Overvoltage protection (external)

Admissible range

20.4 – 28.8 V (11.8 – 14.4 V), Power supply

Current consumption

40 mA, Internal current consumption (5 V DC), Outputs

Degree of protection

IP20

Overvoltage category

II

Pollution degree

2

Protection

Protection class: 1

Repetition rate

1 s

Residual ripple

≤ 5 %

Type

Digital module

Used with

XC100/200 (expandable with up to 15 XI/OC modules)

Voltage type

DC; AC/DC

Number of channels

12, Output

Delay time

10 ms typ., Outputs, Delay time from 1 to 0, Debounce OFF; 10 ms, Outputs, Off -> On, Debounce OFF

Input current at signal 1

0 mA

Load current

Min. 1 mA

Number of inputs (digital)

0

Number of outputs (digital)

12

Output

12 Relay Outputs; Relay

Output current

2 A

Output voltage

24 V DC

Explosion safety category for dust

None

Explosion safety category for gas

None

Potential isolation

Outputs: Opto-isolated

Terminals

Optionally, screw terminals or spring-loaded terminals for digital/analog modules

HS Code

8536.90
