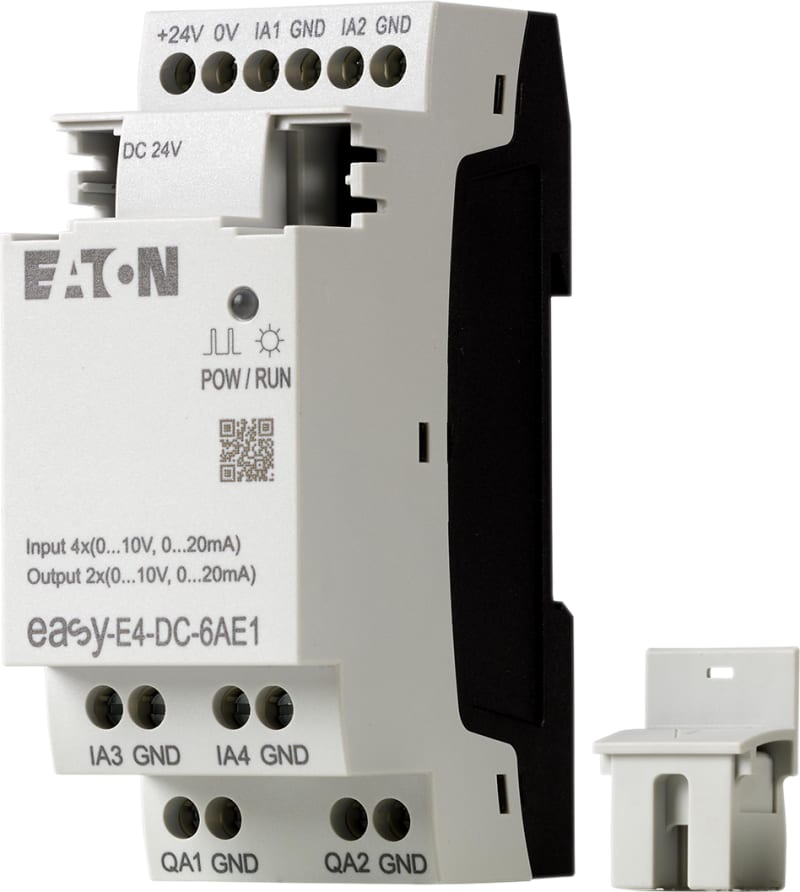

In/O extension for EASYE4 (EASY-E4-DC-6AE1)

Eaton In/O extension for EASYE4 (EASY-E4-DC-6AE1) is listed under Control & Automation / PLCs. Sales unit: pcs; Eaton catalogue number: 197223; Depth: 58 mm; Height: 90 mm; Width: 36 mm; Weight: 0.1 kg.

Manufacturer part number (MPN)

EASY-E4-DC-6AE1

EAN / GTIN

4015080892847

Sales unit

pcs

Eaton catalogue number

197223

Depth

58 mm

Height

90 mm

Width

36 mm

Weight

0.1 kg

Drop and topple

50 mm Drop height, Drop to IEC/EN 60068-2-31

Height of fall (IEC/EN 60068-2-32) - max

0.3 m

Mounting position

Horizontal; Vertical

Shock resistance

15 g, Mechanical, according to IEC/EN 60068-2-27, Half-sinusoidal shock 11 ms, 18 Impacts

Vibration resistance

57 - 150 Hz, 2 g constant acceleration; 10 - 57 Hz, 0.15 mm constant amplitude; According to IEC/EN 60068-2-6

Cable length

≤ 30 m, screened, Analog outputs; ≤ 30 m, screened, Analog inputs; 10 m, screened, Analog inputs

Air pressure

795 - 1080 hPa (operation)

Ambient operating temperature - max

55 °C

Ambient storage temperature - max

70 °C

Ambient operating temperature - min

-25 °C

Ambient storage temperature - min

-40 °C

Environmental conditions

Clearance in air and creepage distances according to EN 50178, EN 61010-2-201, UL61010-2-201

CSA-C22.2 NO. 61010-2-201; Condensation

prevent with appropriate measures

Relative humidity

5 - 95 % (IEC 60068-2-30, IEC 60068-2-78)

Connection type

Screw terminal

Static heat dissipation, non-current-dependent Pvs

2.5 W

Heat dissipation

3.4 W (at 24 V DC)

Inrush current

12.5 A (for 6 ms)

Power consumption

2.5 W

Rated operational voltage

20.4 - 28.8 V DC; 24 V DC (-15 %/+ 20 % - power supply)

Supply voltage at DC - max

28.8 VDC

Supply voltage at DC - min

20.4 VDC

Air discharge

8 kV

Burst impulse

According to IEC/EN 61000-4-4; 2 kV, Supply cable; 2 kV, Signal cable

Contact discharge

6 kV

Electromagnetic fields

3 V/m at 1.4 - 2 GHz (according to IEC EN 61000-4-3); 1 V/m at 2.0 - 2.7 GHz (according to IEC EN 61000-4-3); 10 V/m at 0.8 - 1.0 GHz (according to IEC EN 61000-4-3)

Immunity to line-conducted interference

10 V (according to IEC/EN 61000-4-6)

Radio interference class

Class B (EN 61000-6-3)

Surge rating

0.5 kV, Supply cables, symmetrical, power pulses (Surge), EMC; According to IEC/EN 61000-4-5, power pulses (Surge), EMC; 1 kV, Supply cables, asymmetrical, power pulses (Surge), EMC

Voltage dips

20 ms; ≤ 10 ms, Bridging voltage dips

Features

Expandable; Expansion device

Degree of protection

IP20

Insulation resistance

According to EN 50178, EN 61010-2-201, UL61010-2-201, CSA-C22.2 NO. 61010-2-201

Mounting method

Front build in possible; Rail mounting possible; Wall mounting/direct mounting; Top-hat rail fixing (according to IEC/EN 60715, 35 mm); Screw fixing using fixing brackets ZB4-101-GF1 (accessories)

Overvoltage category

III

Pollution degree

2

Product category

Control relays easyE4

Protocol

TCP/IP; MODBUS

Residual ripple

≤ 5 %

Resolution

12 Bit (value 0 - 4095, Analog inputs) 12 Bit (value 0 - 4095, Analog outputs)

Software

EASYSOFT-SWLIC/easySoft

Type

easyE4 extension

Voltage type

DC

Accuracy

1 %, Analog inputs at -25 °C - 55 °C

Input

Voltage; Current

Input impedance

11.2 kΩ

Number of inputs (analog)

4

Number of inputs (digital)

0

Number of outputs (analog)

2

Number of outputs (digital)

0

Output

Current; Voltage

Signal range

4 - 20 mA, Analog outputs; 0 - 20 mA, Analog inputs; 0 - 10 V DC, Analog inputs; 0 - 10 V DC, Analog outputs; 4 - 20 mA, Analog inputs; 0 - 20 mA, Analog outputs

Explosion safety category for dust

None

Explosion safety category for gas

None

Potential isolation

Between Analog inputs and Power supply: no; Between Analog inputs and Inputs/Outputs: no; Between Analog outputs and Inputs/Outputs: no; Between Analog inputs and expansion devices: yes; Between Analog outputs and Power supply: no; Between Analog outputs and expansion devices: no

Protection against polarity reversal

Yes, for supply voltage (Siemens MPI optional)

Short-circuit protection

≥ 1A (T), Fuse, Power supply

Screwdriver size

3.5 x 0.8 mm, Terminal screw

Terminal capacity

0.2 - 2.5 mm² (22 - 12 AWG), flexible with ferrule; 0.2 - 4 mm² (AWG 22 - 12), solid

Tightening torque

0.6 Nm, Screw terminals

Certified for UL hazardous location division 1

No

Certified for UL hazardous location division 2

Yes

Certified for UL hazardous location group A (acetylene)

Yes

Certified for UL hazardous location group B (hydrogen)

Yes

Certified for UL hazardous location group C (ethylene)

Yes

Certified for UL hazardous location group D (propane)

Yes

Certified for UL hazardous location group E (metal dusts)

No

Certified for UL hazardous location class I

Yes

Certified for UL hazardous location class II

No

Certified for UL hazardous location class III

No

Supporting protocol for EtherCAT

No

Supply voltage DC

20.4–28.8 V

Switching current

0.5 A

Number of analogue inputs

4

Number of analogue outputs

2

With relay output

No

With optical interface

No

Supporting protocol for TCP/IP

Yes

Supporting protocol for PROFIBUS

No

Supporting protocol for CAN

No

Supporting protocol for INTERBUS

No

Supporting protocol for ASI

No

Supporting protocol for KNX

No

Supporting protocol for Modbus

Yes

Supporting protocol for Data-Highway

No

Supporting protocol for DeviceNet

No

Supporting protocol for SUCONET

No

Supporting protocol for LON

No

Supporting protocol for PROFINET IO

No

Supporting protocol for PROFINET CBA

No

Supporting protocol for SERCOS

No

Supporting protocol for Foundation Fieldbus

No

Supporting protocol for EtherNet/IP

No

Supporting protocol for AS-Interface Safety at Work

No

Supporting protocol for DeviceNet Safety

No

Supporting protocol for INTERBUS-Safety

No

Supporting protocol for PROFIsafe

No

Supporting protocol for SafetyBUS p

No

Supporting protocol for other bus systems

No

Radio standard Bluetooth

No

Radio standard WLAN 802.11

No

Radio standard GPRS

No

Radio standard GSM

No

Mobile communications standard 3G (UMTS)

No

IO link master

No

Redundancy

No

With display

No

Basic device

No

Expandable

Yes

Expansion device

Yes

With time switch clock

No

Suitable for rail mounting

Yes

HS Code

4911.99
