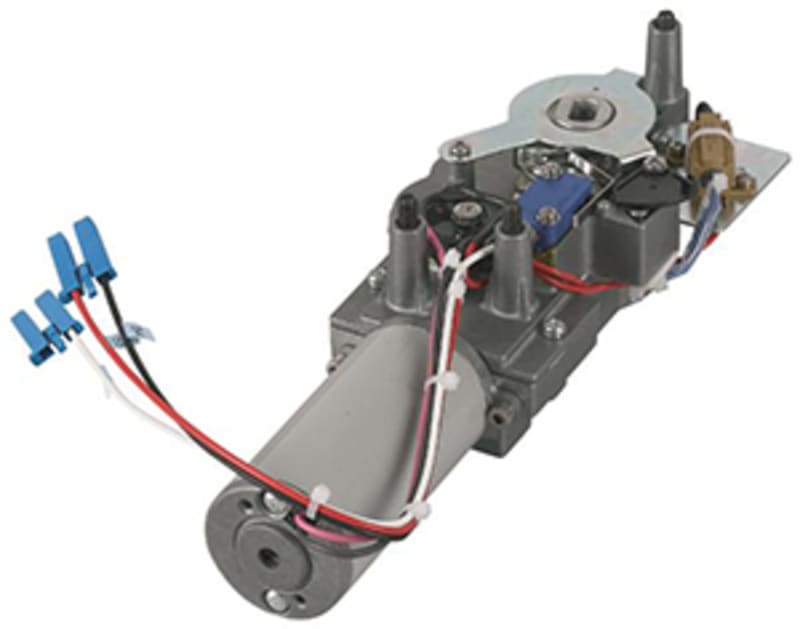

Eaton IZMX-M16-110AD-1
Pricing
Request a quote
We reply within 24 hours
Overview
Eaton IZMX-M16-110AD-1 is listed under Electrical Components / Circuit Breaker Accessories. Sales unit: pcs; Eaton catalogue number: 184252; Depth: 200 mm; Height: 100 mm; Width: 150 mm; Weight: 0.907 kg.
Technical Specifications
- Manufacturer part number (MPN)
- IZMX-M16-110AD-1
- EAN / GTIN
- 4015081784110
- Sales unit
- pcs
- Eaton catalogue number
- 184252
- Depth
- 200 mm
- Height
- 100 mm
- Width
- 150 mm
- Weight
- 0.907 kg
- Compliances
- RoHS conform
- Accessory/spare part type
- Remote switching
- Frame
- NF
- Type
- Accessory
- Used with
- INX16…; IZMX16…
- Ambient operating temperature - max
- 70 °C
- Ambient operating temperature - min
- -25 °C
- Control voltage operating range
- 110 - 125 V DC; 110 - 127 V AC (50/60 Hz); 0.85 - 1.1 x Us
- Power consumption
- 150 W DC; 280 VA AC 50/60 Hz
- Rated control supply voltage (Us) at AC, 50 Hz - max
- 127 V
- Rated control supply voltage (Us) at AC, 50 Hz - min
- 110 V
- Rated control supply voltage (Us) at AC, 60 Hz - max
- 127 V
- Rated control supply voltage (Us) at AC, 60 Hz - min
- 110 V
- Rated control supply voltage (Us) at DC - max
- 125 V
- Rated control supply voltage (Us) at DC - min
- 110 V
- Rated operational current
- 2 A AC 50/60 Hz; 1 A DC
- Starting current rating
- 6 A AC 50/60 Hz, 5 A DC
- Voltage rating
- 120 V
- Voltage type
- AC/DC
- Number of actuation per minute - max
- 3
- Switch drive type
- Motor drive
- Rated control supply voltage AC 50 Hz
- 110–127 V
- Rated control supply voltage AC 60 Hz
- 110–127 V
- Rated control supply voltage DC
- 110–125 V
- Type of switch drive
- Motor drive
- Voltage type for actuating
- AC/DC
- Country of origin
- China
Standards & Compliance
- HS Code
- 8538.90
Cross References
- EAN 4015081784110
- SAP 1200598977
- Code 82978067
Product Documentation
