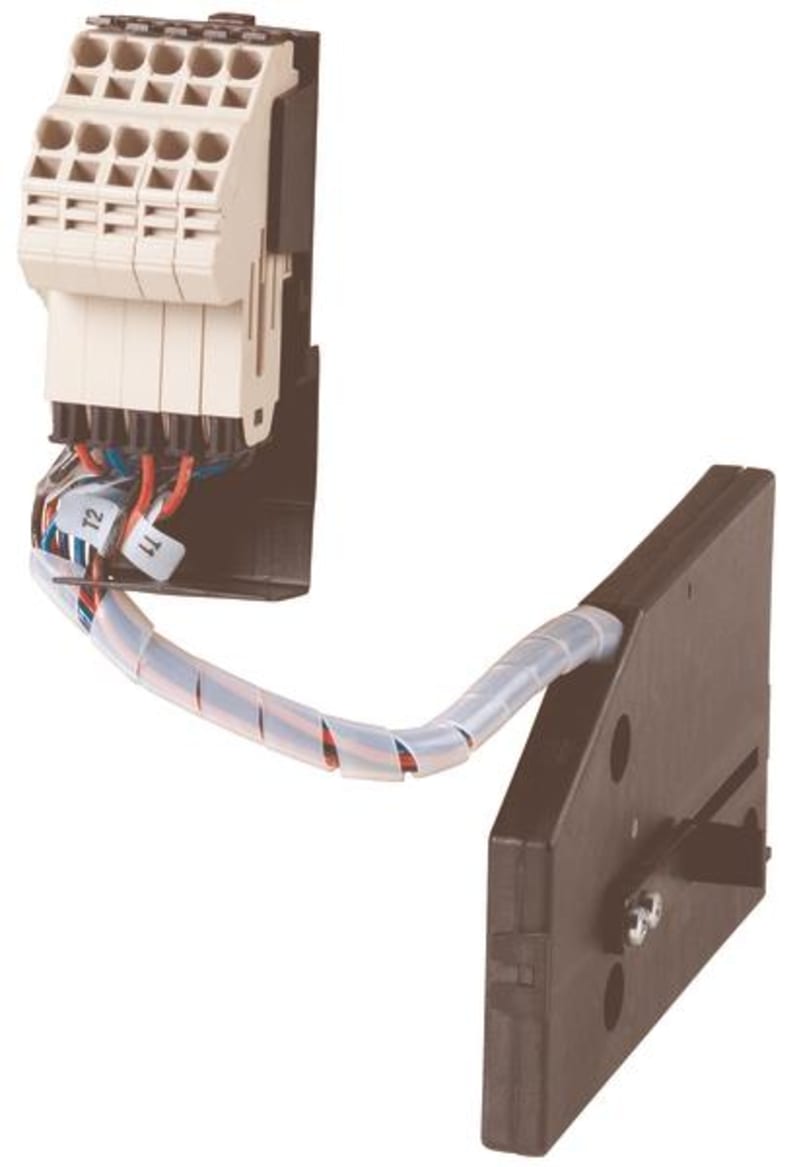

Eaton IZMX-CS40-1
Pricing
Request a quote
We reply within 24 hours
Overview
Eaton IZMX-CS40-1 is listed under Electrical Components / Circuit Breaker Accessories. Sales unit: pcs; Eaton catalogue number: 184196; Depth: 125 mm; Height: 100 mm; Width: 10 mm; Weight: 0.1 kg.
Technical Specifications
- Manufacturer part number (MPN)
- IZMX-CS40-1
- EAN / GTIN
- 4015081783625
- Sales unit
- pcs
- Eaton catalogue number
- 184196
- Depth
- 125 mm
- Height
- 100 mm
- Width
- 10 mm
- Weight
- 0.1 kg
- Compliances
- RoHS conform
- Accessory/spare part type
- Withdrawable units
- Model
- Integrable
- Special features
- One changeover contact each for the Disconnected, Test, and Connected positions. for fitting to left or right The retrofit kit includes the required SEC control cable terminals.
- Type
- Accessory
- Used with
- IZMX-CAS40…
- Ambient operating temperature - max
- 70 °C
- Ambient operating temperature - min
- -25 °C
- Electric connection type
- Flat plug-in connection
- Rated breaking capacity (inductive load)
- 0.5 A (125 V DC); 0.25 A (250 V DC); 10 A (250 V AC)
- Rated operational current (Ie) at AC-15, 220 V, 230 V, 240 V
- 10 A
- Lamp holder
- None
- Mounting Method
- Withdrawable; Floor fastening
- Number of contacts (change-over contacts)
- 1
- Number of contacts (normally closed contacts)
- 2
- Number of contacts (normally open contacts)
- 2
- Number of switches (fault signal)
- 0
- Country of origin
- Mexico
Standards & Compliance
- HS Code
- 8538.90
Cross References
- EAN 4015081783625
- SAP 1200283535
- Code 82247808
