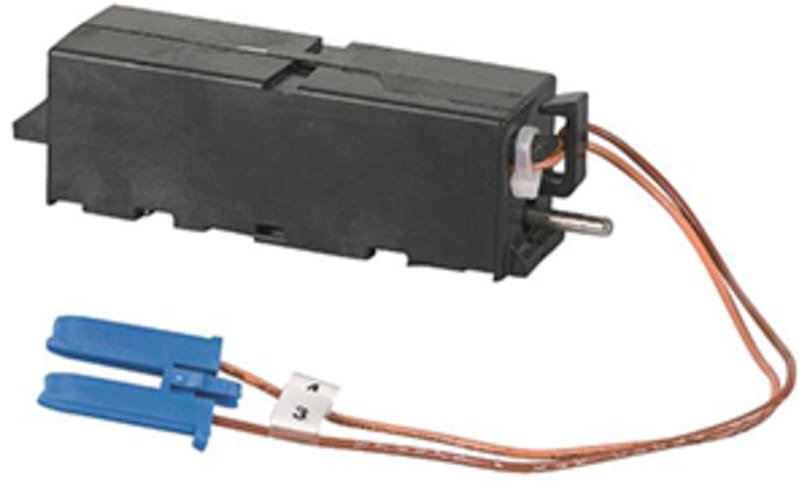

Eaton IZMX-UVR230AD-1

Eaton IZMX-UVR230AD-1 is listed under Electrical Components / Circuit Breaker Accessories. Sales unit: pcs; Eaton catalogue number: 184162; Depth: 150 mm; Height: 100 mm; Width: 100 mm; Weight: 0.091 kg.

Manufacturer part number (MPN)

IZMX-UVR230AD-1

EAN / GTIN

4015081783403

Sales unit

pcs

Eaton catalogue number

184162

Depth

150 mm

Height

100 mm

Width

100 mm

Weight

0.091 kg

Compliances

RoHS conform

Accessory/spare part type

Remote switching

Special features

Cannot be combined with a second shunt release. Retrofitting kit Limited to 3/min due to the high pick-up current for 35 ms. Please note - the circuit-breaker's switching frequency = 60/h The retrofit kit includes the required SEC control cable terminals.

Suitable for

Power circuit breaker; Off-load switch; Overload relay; Motor safety switch

Type

Accessory

Used with

INX16..., INX40...; IZMX16..., IZMX40...

Ambient operating temperature - max

70 °C

Ambient operating temperature - min

-25 °C

Circuit breaker total switching time

50 ms (Us = 100%) (IZMX16…, INX16…); 40 ms (Us = 100%) (IZMX40…, INX40…)

Control voltage operating range

0.85 - 1.1 x Us; 208 - 240 V AC (50/60 Hz); 208 - 250 V DC

Current rating - max

0.028 A (maximum holding current)

Electric connection type

Flat plug-in connection

Pick-up power consumption at 35 ms - max

910 VA/W

Power consumption

5 VA/W AC/DC

Rated control supply voltage (Us) at AC, 50 Hz - max

240 V

Rated control supply voltage (Us) at AC, 50 Hz - min

208 V

Rated control supply voltage (Us) at AC, 60 Hz - max

240 V

Rated control supply voltage (Us) at AC, 60 Hz - min

208 V

Rated control supply voltage (Us) at DC - max

250 V

Rated control supply voltage (Us) at DC - min

220 V

Rated operational current

0.028 A (maximum holding current)

Voltage type

AC/DC

Number of actuation per minute - max

3

Number of contacts (change-over contacts)

0

Number of contacts (normally closed contacts)

0

Number of contacts (normally open contacts)

0

Delayed

No

Suitable for off-load switch

Yes

Suitable for overload relay

Yes

Type of electric connection

Flat plug-in connection

Rated control supply voltage AC 50 Hz

208–240 V

Rated control supply voltage AC 60 Hz

208–240 V

Rated control supply voltage DC

220–250 V

Suitable for motor safety switch

Yes

Suitable for power circuit breaker

Yes

Voltage type for actuating

AC/DC

Country of origin

Czechia

HS Code

8538.90
