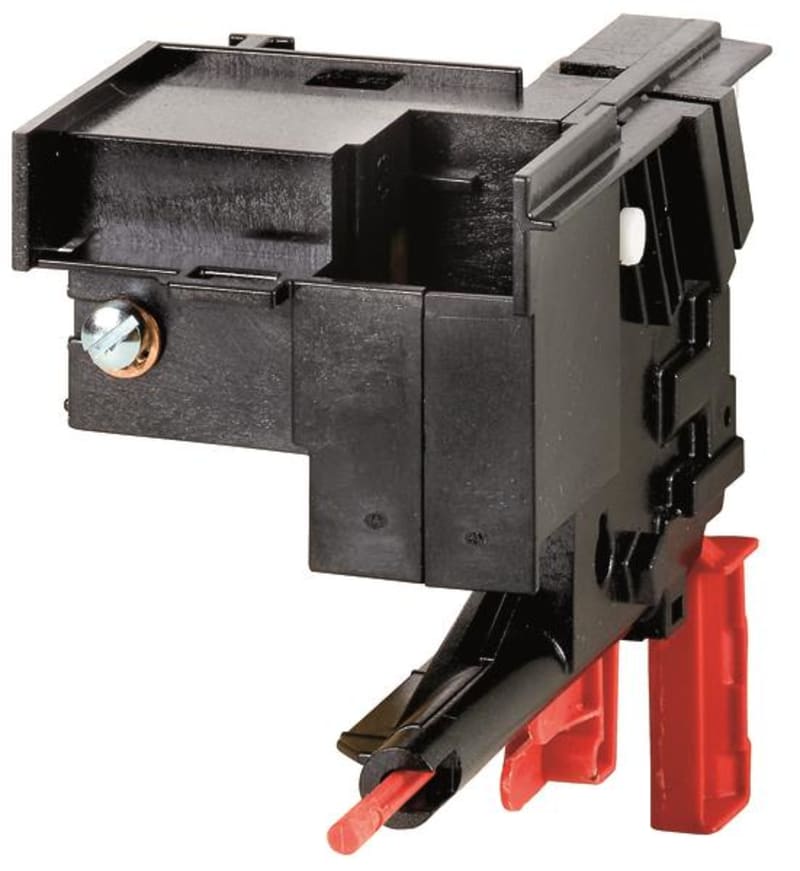

Eaton IZMX-RR110AD-40-1
Pricing
Request a quote
We reply within 24 hours
Overview
Eaton IZMX-RR110AD-40-1 is listed under Electrical Components / Circuit Breaker Accessories. Sales unit: pcs; Eaton catalogue number: 184126; Depth: 150 mm; Height: 100 mm; Width: 100 mm; Weight: 0.125 kg.
Technical Specifications
- Manufacturer part number (MPN)
- IZMX-RR110AD-40-1
- EAN / GTIN
- 4015081783243
- Sales unit
- pcs
- Eaton catalogue number
- 184126
- Depth
- 150 mm
- Height
- 100 mm
- Width
- 100 mm
- Weight
- 0.125 kg
- Compliances
- RoHS conform
- Accessory/spare part type
- Trip indication / Reset options
- Special features
- The circuit-breaker is equipped with a mechanical trip indicator (red pin). After the remote reset coil is electrically actuated, the reclosing lockout can be reset. Cannot be combined with remote reset. The retrofit kit includes the required SEC control cable terminals.
- Suitable for
- Power circuit breaker; Overload relay; Off-load switch
- Type
- Accessory
- Used with
- IZMX40…F; IZMX40…W
- Ambient operating temperature - max
- 70 °C
- Ambient operating temperature - min
- -25 °C
- Control voltage operating range
- 110 - 125 V DC; 110 - 127 V AC (50/60 Hz)
- Electric connection type
- Flat plug-in connection
- Power consumption
- 540 VA/W AC/DC
- Rated control supply voltage (Us) at AC, 50 Hz - max
- 127 V
- Rated control supply voltage (Us) at AC, 50 Hz - min
- 110 V
- Rated control supply voltage (Us) at AC, 60 Hz - max
- 127 V
- Rated control supply voltage (Us) at AC, 60 Hz - min
- 110 V
- Rated control supply voltage (Us) at DC - max
- 125 V
- Rated control supply voltage (Us) at DC - min
- 110 V
- Voltage type
- AC/DC
- Number of contacts (change-over contacts)
- 0
- Number of contacts (normally closed contacts)
- 0
- Number of contacts (normally open contacts)
- 0
- Suitable for off-load switch
- Yes
- Suitable for overload relay
- Yes
- Type of electric connection
- Flat plug-in connection
- Rated control supply voltage AC 50 Hz
- 110–127 V
- Rated control supply voltage AC 60 Hz
- 110–127 V
- Rated control supply voltage DC
- 110–125 V
- Suitable for motor safety switch
- No
- Suitable for power circuit breaker
- Yes
- Voltage type for actuating
- AC/DC
- Country of origin
- United States
Standards & Compliance
- HS Code
- 8538.90
Cross References
- EAN 4015081783243
- SAP 1200598909
- Code 82977868
Product Documentation
