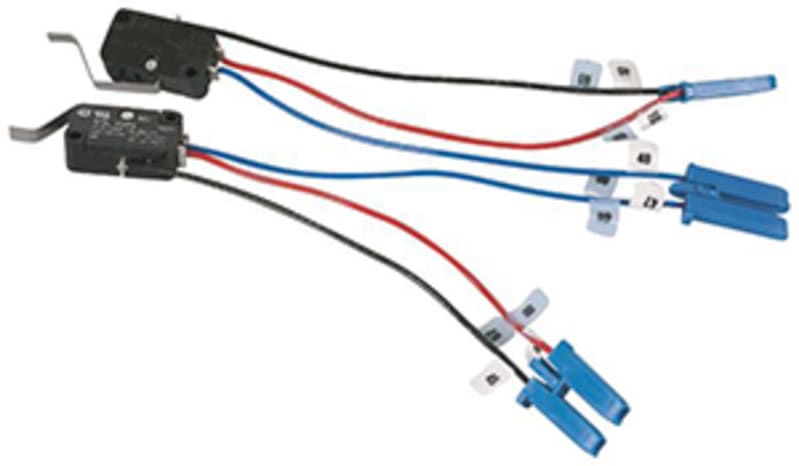

Eaton IZMX-OTS16-1
Pricing
Request a quote
We reply within 24 hours
Overview
Eaton IZMX-OTS16-1 is listed under Electrical Components / Circuit Breaker Accessories. Sales unit: pcs; Eaton catalogue number: 184117; Depth: 100 mm; Height: 100 mm; Width: 100 mm; Weight: 0.023 kg.
Technical Specifications
- Manufacturer part number (MPN)
- IZMX-OTS16-1
- EAN / GTIN
- 4015081783199
- Sales unit
- pcs
- Eaton catalogue number
- 184117
- Depth
- 100 mm
- Height
- 100 mm
- Width
- 100 mm
- Weight
- 0.023 kg
- Compliances
- RoHS conform
- Accessory/spare part type
- Trip indication / Reset options
- Model
- Integrable
- Special features
- "Triggered" signaling contact with two changeover contacts The retrofit kit includes the required SEC control cable terminals.
- Type
- Accessory
- Used with
- IZMX16...
- Ambient operating temperature - max
- 70 °C
- Ambient operating temperature - min
- -25 °C
- Electric connection type
- Flat plug-in connection
- Rated breaking capacity (inductive load)
- 10 A (250 V AC); 0.25 A (250 V DC); 0.5 A (125 V DC)
- Rated operational current (Ie) at AC-15, 220 V, 230 V, 240 V
- 10 A
- Lamp holder
- None
- Mounting Method
- Other
- Number of contacts (change-over contacts)
- 2
- Number of contacts (normally closed contacts)
- 0
- Number of contacts (normally open contacts)
- 0
- Number of switches (fault signal)
- 0
- Country of origin
- Mexico
Standards & Compliance
- HS Code
- 8538.90
Cross References
- EAN 4015081783199
- SAP 1200283532
- Code 82247799
Product Documentation
More from Eaton
Eaton

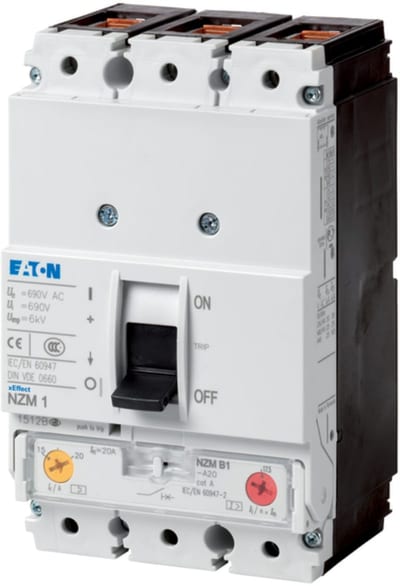

Eaton NZMH1-A80 Molded-Case Circuit Breaker 3-Pole 80A 100KA
Eaton

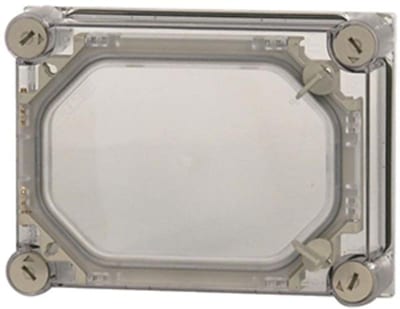

Cover H×W×D=250X187.5X50MM (D150-CI23/T)
Eaton

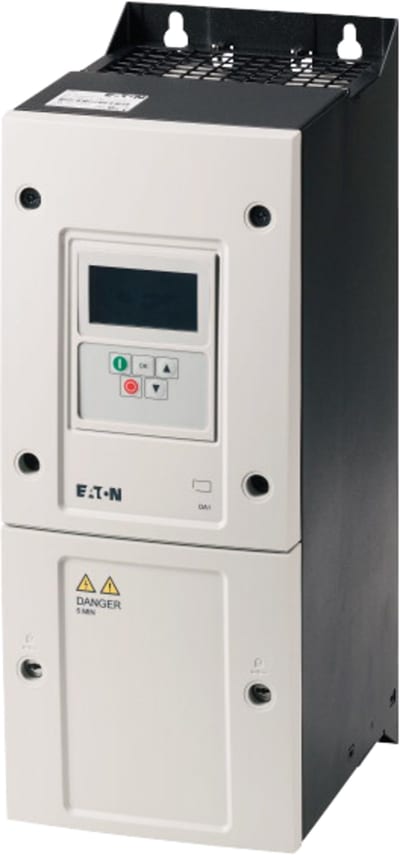

DA1 variable-frequency drive, 3-3 400V, 22 kW
DA1-34046FB-B55C
Eaton

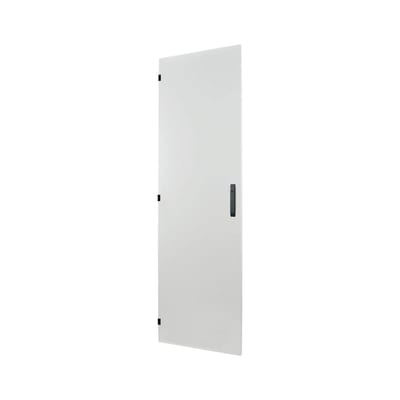

Door xE Light (XLSD5D1610)
Eaton

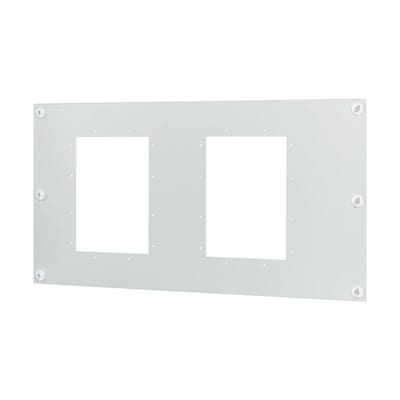

Front plate 2XIZMX16-W xE M H500 B1000
