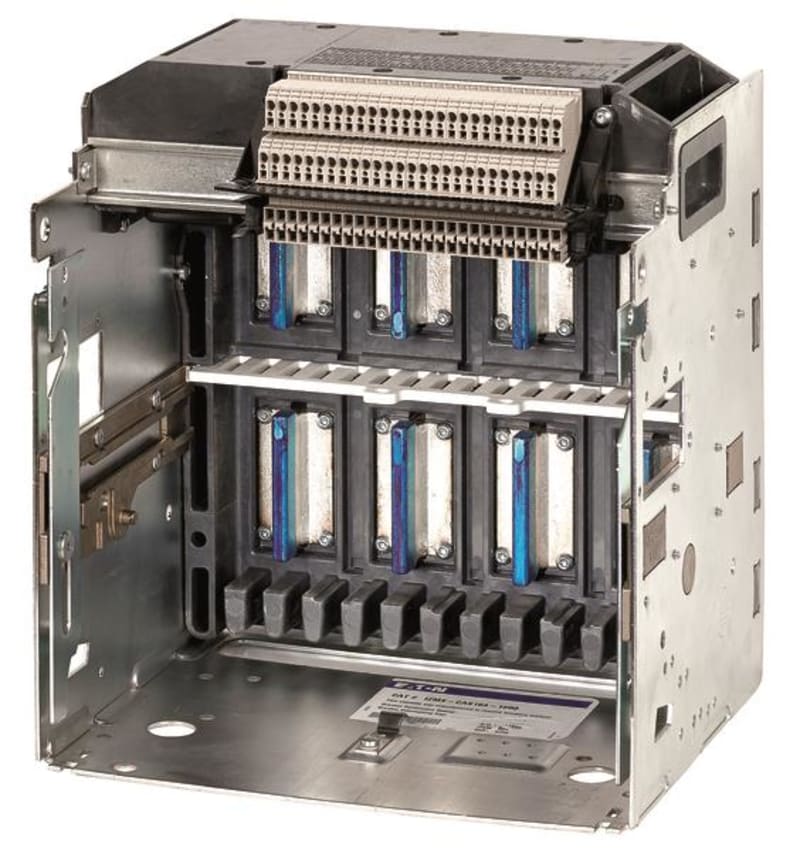

Eaton IZMX-CAS164-1600-SEC-1
Pricing
Request a quote
We reply within 24 hours
Overview
Eaton IZMX-CAS164-1600-SEC-1 is listed under Electrical Components / Circuit Breaker Accessories. Sales unit: pcs; Eaton catalogue number: 183956; Depth: 584 mm; Height: 597 mm; Width: 521 mm; Weight: 20.9 kg.
Technical Specifications
- Manufacturer part number (MPN)
- IZMX-CAS164-1600-SEC-1
- EAN / GTIN
- 4015081782796
- Sales unit
- pcs
- Eaton catalogue number
- 183956
- Depth
- 584 mm
- Height
- 597 mm
- Width
- 521 mm
- Weight
- 20.9 kg
- Compliances
- RoHS conform
- Accessory/spare part type
- Withdrawable units
- Amperage Rating
- 2500 A - 3200 A
- Features
- Version as built-in device
- Nominal current
- 1600 A
- Number of poles
- Four-pole
- Special features
- Control circuit terminal Equipment supplied: arcing chamber cover, terminal blocks fully populated Fully equipped with control circuit terminals with arcing chamber cover
- Type
- Accessory
- Used with
- Four-pole; INX16…4-…W; IZMX16…4-…W
- Ambient operating temperature - max
- 70 °C
- Ambient operating temperature - min
- -25 °C
- Electrical connection type of main circuit
- Rail connection
- Mounting Method
- Withdrawable
- Rated current In
- 1600 A
- Version as busbar adaptor
- No
- Version as built-in device
- Yes
- Type of electrical connection of main circuit
- Rail connection
- Country of origin
- China
Standards & Compliance
- HS Code
- 8538.90
Cross References
- EAN 4015081782796
- SAP 1200598843
- Code 82978390
Product Documentation
More from Eaton
Eaton

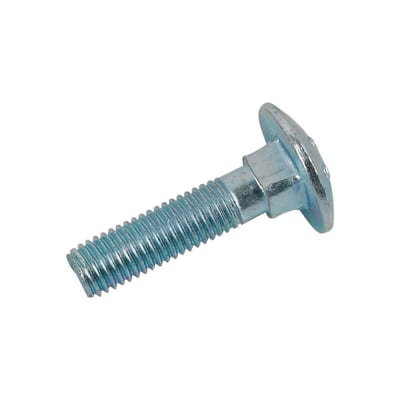

Screw M12 x 40 - 8.8
XNFRS-M12X40-8
Eaton

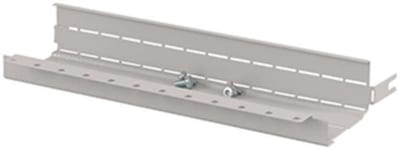

Cover plate top/bottom xE Light (XLFA65)
Eaton

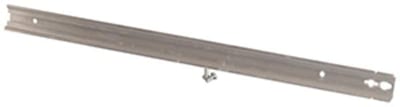

Forkortet DIN Rail B800MM (BPZ-TSK-800/80)
Eaton

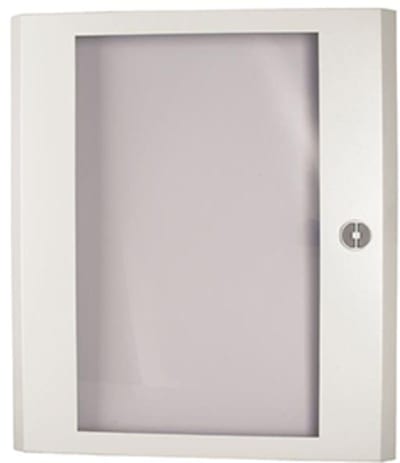

White door with inspection window (BP-DT-400/10-W)
Eaton
Eaton NZMH2-4-VX160 Molded-Case Circuit Breaker 4-Pole 160A 150KA
Eaton
Marking Strip for 20 poles
LAB-BAR_20TE
Eaton

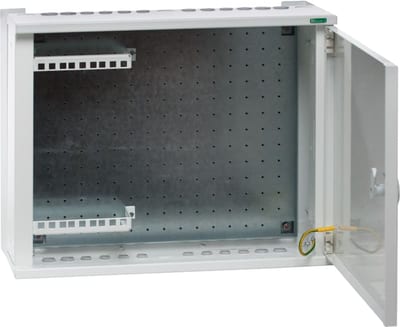

Multi-Cabinet FOR BI WITH MP-Patch (IKT-BI-3854/ENCLOSURE/MP-Patch)
IKT-BI-3854/SKAP/MP-PATCH
Eaton

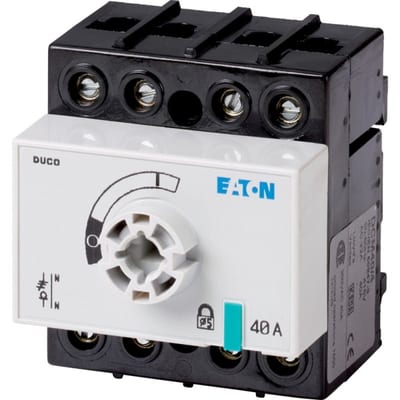

Switch-disconnector,DCM-40/4-SK
