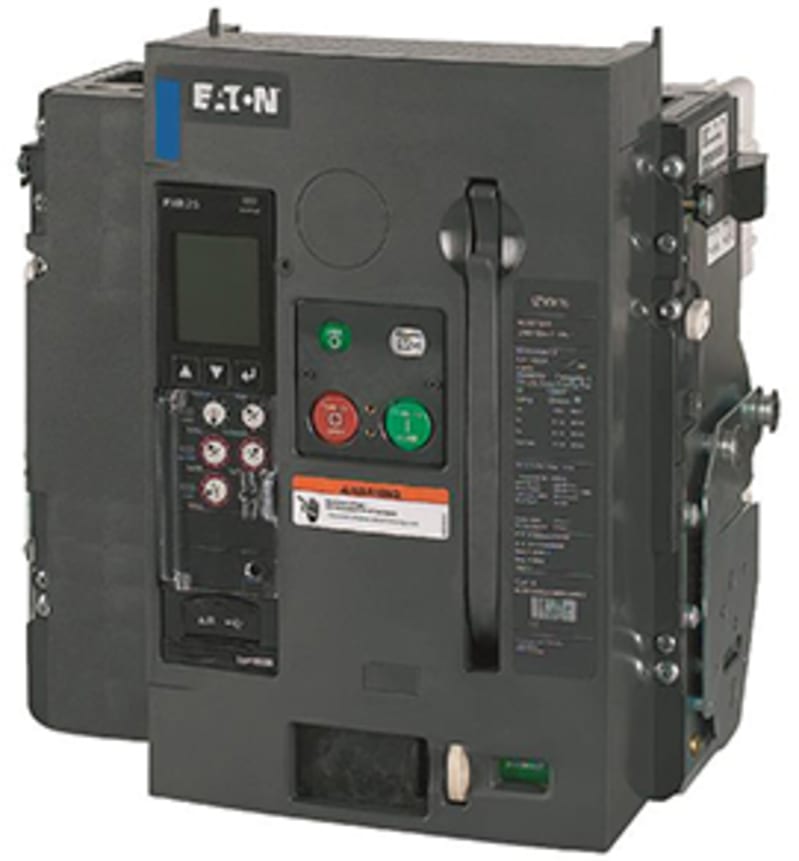

Eaton IZMX16B4-V10W-1

Eaton IZMX16B4-V10W-1 is listed under Electrical Components / Moulded Case Circuit Breakers. Sales unit: pcs; Eaton catalogue number: 183561; Depth: 584 mm; Height: 597 mm; Width: 521 mm; Weight: 32.49 kg.

Manufacturer part number (MPN)

IZMX16B4-V10W-1

EAN / GTIN

4015081792979

Sales unit

pcs

Eaton catalogue number

183561

Depth

584 mm

Height

597 mm

Width

521 mm

Weight

32.49 kg

Compliances

IEC; IEC/EN 60947; RoHS conform

Amperage Rating

1000 A

Features

Complete device with protection unit; Motor drive optional

Fitted with

Switched-off indicator

Frame

IZMX16

Number of poles

Four-pole

Release system

Electronic release

Type

Air circuit breakers/switch-disconnector Open circuit breaker

Used with

Air circuit breakers/switch-disconnector; Open circuit breaker

Ambient operating temperature - max

70 °C

Ambient storage temperature - max

70 °C

Ambient operating temperature - min

-20 °C

Ambient operating temperature details

-20 °C - 70 °C

Ambient storage temperature - min

-20 °C

Equipment heat dissipation, current-dependent

125 W

Rated operational current for specified heat dissipation (In)

1000 A

Actuator type

Push button

Adjustment range short-term delayed short-circuit release - max

10000 A

Adjustment range short-term delayed short-circuit release - min

600 A

Adjustment range undelayed short-circuit release - max

15000 A

Adjustment range undelayed short-circuit release - min

2000 A

Closing delay via spring release

30 ms

Direction of incoming supply

As required

Electrical connection type of main circuit

Rail connection

Lifespan, electrical

10000 operations (switching capacity); 20000 operations (switching cycles ON/OFF, with maintenance)

Number of standard mechanical operations per hour - max

60

Operating sequence up to 690 V, 50/60 Hz (IEC/EN 60947)

42 kA

Overload release current setting - max

1000 A

Overload release current setting - min

400 A

Overvoltage category

III

Pollution degree

3

Power of withdrawable switch with cassette

125 W

Rated impulse withstand voltage (Uimp)

12 kV AC

Rated insulation voltage (Ui)

1000 V

Rated operating voltage (Ue) - max

690 V

Rated operating voltage (Ue) - min

240 V

Rated short-circuit breaking capacity at 400 V, 50 Hz

42 kA

Rated short-circuit making capacity up to 440 V, 50/60 Hz

88 kA

Rated short-circuit making capacity up to 690 V, 50/60 Hz

88 kA

Rated short-time withstand current (t = 1 s)

42 kA

Rated uninterrupted current (Iu)

1000 A

Rated uninterrupted current (Iu) at 50°C

1000 A

Rated uninterrupted current (Iu) at 60°C

1000 A

Rated uninterrupted current (Iu) at 70°C

1000 A

Short-circuit release delayed setting - max

10000 A

Short-circuit release delayed setting - min

750 A

Short-circuit release non-delayed setting

1.5 - 10 x Ir

Short-circuit release non-delayed setting - max

15000 A

Utilization category

B

Voltage rating at AC

690 V AC

Degree of protection

IP31; IP31 with door seals; IP55 with protective cover

Device construction

Built-in device slide-in technique (withdrawable)

Lifespan, mechanical

12500 switching cycles (ON/OFF); 25000 operations (switching capacity, with maintenance)

Mounting Method

Withdrawable

Number of auxiliary contacts (change-over contacts)

2

Number of auxiliary contacts (normally closed contacts)

0

Number of auxiliary contacts (normally open contacts)

0

Position of connection for main current circuit

Back side

Protection

Selective operation

Weight of cassette version (4-pole)

21 kg

Weight of fixed withdrawable version (4-pole)

33 kg

Terminal capacity (copper bar)

5 mm x 60 mm (2x) for withdrawable units (black)

Rated permanent current Iu

1000 A

With integrated under voltage release

No

Overload release current setting

320–800 A

Number of auxiliary contacts as change-over contact

2

Rated voltage

690 V

Power loss

125 W

Motor drive integrated

No

Type of electrical connection of main circuit

Rail connection

Type of control element

Push button

With switched-off indicator

Yes

Rated short-circuit breaking capacity Icu at 400 V, 50 Hz

42 kA

Adjustment range short-term delayed short-circuit release

1500–10000 A

Adjustment range undelayed short-circuit release

2000–15000 A

Suitable for DIN rail (top hat rail) mounting

No

Integrated earth fault protection

No

Motor drive optional

Yes

DIN rail (top hat rail) mounting optional

No

Complete device with protection unit

Yes

Country of origin

China

HS Code

8536.20
