Eaton VHI20-PKZ01 early-make auxiliary contact for PKZ01

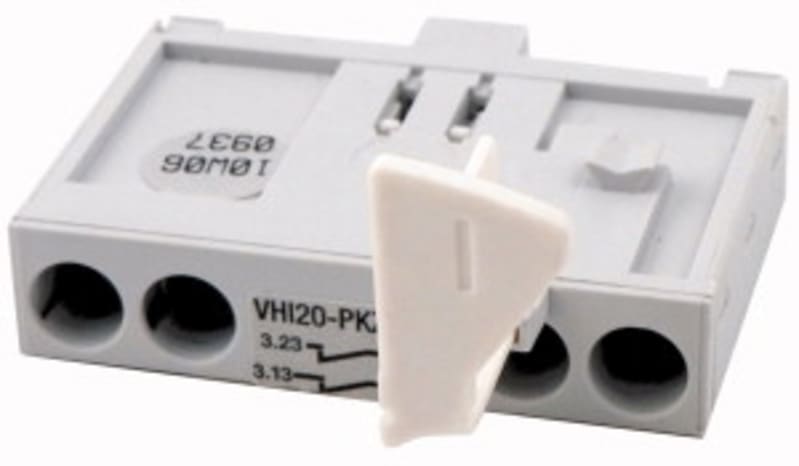

Eaton VHI20-PKZ01 early-make auxiliary contact block for the PKZ01 motor-protective circuit breaker, providing two normally-open contacts. Designed for the premature voltage application of the undervoltage release, for example in emergency-stop circuits to EN 60204. Screw connection with front fastening.

Manufacturer part number (MPN)

VHI20-PKZ01

EAN / GTIN

4015082784959

Sales unit

pcs

Package quantity

5 pcs

Eaton catalogue number

278495

Depth

28 mm

Height

40 mm

Width

45 mm

Weight

0.021 kg

Certifications

IEC/EN 60947-4-1; CE; UL Category Control No.: NLRV; CSA Class No.: 3211-05; CSA; CSA File No.: 165628; UL File No.: E36332; CSA-C22.2 No. 14; UL; UL 508

Catalog Notes

For the premature voltage application of the U-release, e.g. in EMERGENCY STOP circuits according to EN 60204.

Ambient operating temperature - max

55 °C

Ambient operating temperature - min

-25 °C

Number of contacts (change-over contacts)

0

Number of contacts (normally closed contacts)

0

Number of contacts (normally open contacts)

2

Rated operational current for specified heat dissipation (In)

1 A

Heat dissipation per pole, current-dependent Pvid

0.03 W

Rated operational current (Ie) at AC-15, 220 V, 230 V, 240 V

1 A

Rated operational current (Ie) at DC-13, 24 V

2 A

Rated operational voltage (Ue) at AC - max

440 V

Rated operational voltage (Ue) at DC - max

250 V

Safe isolation

440 V, Between auxiliary contacts and main contacts, According to EN 61140

Short-circuit protection rating without welding

10 A gG/gL, Fuse, Auxiliary contacts

Electric connection type

Screw connection

Lifespan, electrical

50,000 Operations

Lifespan, mechanical

50,000 operations

Model

Top mounting

Mounting method

Front fastening

Overvoltage category

III

Pollution degree

3

Product category

Accessories

Rated impulse withstand voltage (Uimp)

4000 V AC

Used with

Motor protective circuit-breaker

Switching capacity (auxiliary contacts, general use)

0.5 A, 300 V AC, (UL/CSA)

Switching capacity (auxiliary contacts, pilot duty)

E150, AC operated (UL/CSA)

Terminal capacity (solid/flexible with ferrule)

0.75 - 1.5 mm²

Terminal capacity (solid/stranded AWG)

18 - 16

Country of origin

Germany

HS Code

8538.90
