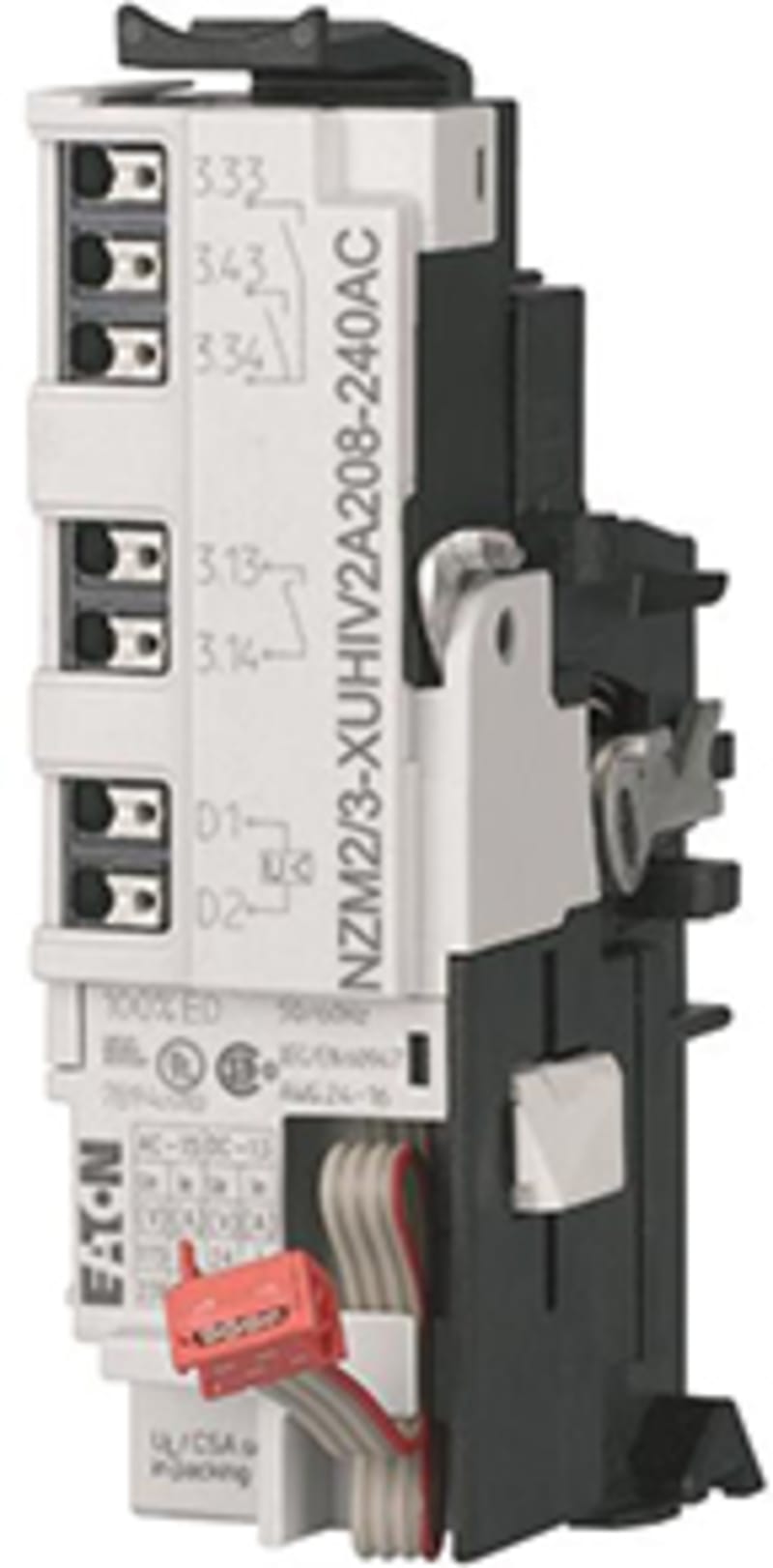

Eaton NZM2/3-XUHIV2A208-240AC

Eaton NZM2/3-XUHIV2A208-240AC is listed under Electrical Components / Circuit Breaker Accessories. HS code: 8536.20.

Manufacturer part number (MPN)

NZM2/3-XUHIV2A208-240AC EAN / GTIN: 4015081877300 Sales unit: pcs Eaton catalogue number: 189735 Depth: 115 mm Height: 65 mm Width: 75 mm Weight: 0.08 kg Compliances: UL/CSA; IEC; RoHS conform Certifications: CE marking; CSA (File No. 22086); UL (Category Control Number DIHS); CSA-C22.2 No. 5-09; UL489; IEC60947; CSA (Class No. 1437-01); UL (File No. E140305); UL listed; CSA certified Fitted with: Early-make auxiliary contact and 2 relays Frame: NZM2/3 Suitable for: Off-load switch; Motor safety switch Type: Undervoltage release with early-make auxiliary contact and two relays Used with: PXR20(25) NZM2(-4)-..X…; PXR20(25) NZM3(-4)-..X… Drop-out voltage of undervoltage release AC/DC - max: 0.7 x Us Drop-out voltage of undervoltage release AC/DC - min: 0.35 x Us Electric connection type: Screw connection minimum command time - max: 15 ms minimum command time - min: 10 ms Overvoltage category: II Pick-up power consumption at AC (undervoltage release): 1.5 VA Pick-up power consumption at DC (undervoltage release): 0.8 W Pollution degree: 2 Power consumption: 0.8 W (DC); 1.5 VA (AC) Rated control supply voltage (Us) at AC, 50 Hz - max: 240 V Rated control supply voltage (Us) at AC, 50 Hz - min: 208 V Rated control supply voltage (Us) at AC, 60 Hz - max: 240 V Rated control supply voltage (Us) at AC, 60 Hz - min: 208 V Rated control voltage (relay contacts): 24 V AC; 208 V AC; 240 V AC; 24 V DC Rated impulse withstand voltage (Uimp): 4 kV AC Rated insulation voltage (Ui): 250 V Rated operational current: 1 A (110 V AC-1, relay contacts); 1 A (230 V AC-1, relay contacts); 1 A (24 V DC-1, relay contacts); 1 A (24 V AC-1, relay contacts) Reaction time: 19 ms Switching capacity (reference value) - min: 0.1 mA / 0.1 VDC Voltage tolerance - max: 1.1 Voltage tolerance - min: 0.85 Voltage type: AC Connection type: With push in terminal Number of contacts (change-over contacts): 0 Number of contacts (normally closed contacts): 0 Number of contacts (normally open contacts): 3 Number of relays: 2 Strip length: 8 mm (relay contact connection) Terminal capacity (solid cable): 0.2 mm² - 1.5 mm² (1x) for undervoltage release; 0.2 mm² - 1.5 mm² (1x) at shunt release Delayed: No Suitable for off-load switch: Yes Suitable for overload relay: No Type of electric connection: Spring clamp connection Rated control supply voltage AC 50 Hz: 208–240 V Rated control supply voltage AC 60 Hz: 208–240 V Suitable for motor safety switch: Yes Suitable for power circuit breaker: Yes Voltage type for actuating: AC Number of contacts as normally open contact: 3 Country of origin: Romania

HS Code

8536.20

• EAN 4015081877300
• SAP 1200600672
• Code 82989214
