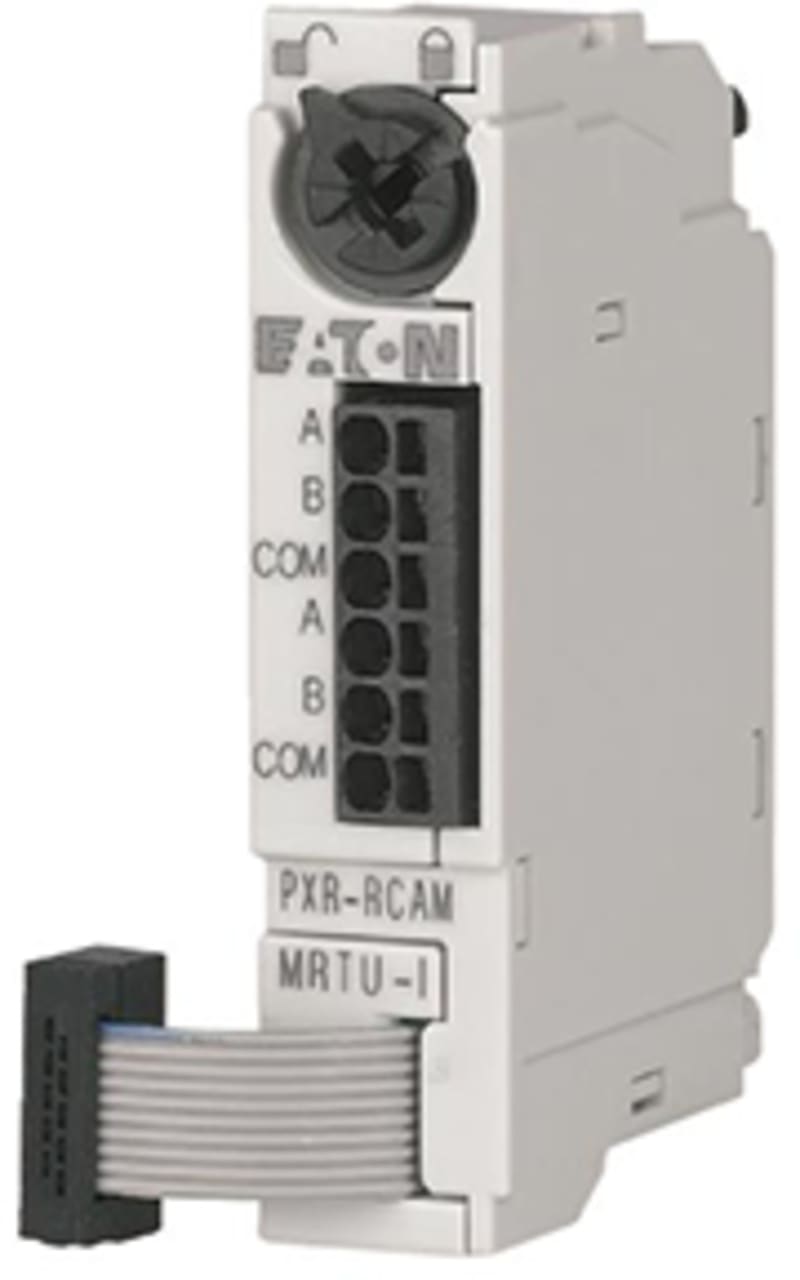

PXR-RCAM-MRTU-In

Eaton PXR-RCAM-MRTU-In is listed under Electrical Components / Circuit Breaker Accessories. Sales unit: pcs; Eaton catalogue number: 189836; Depth: 76 mm; Height: 65 mm; Width: 68 mm; Weight: 0.008 kg.

Manufacturer part number (MPN)

PXR-RCAM-MRTU-I

EAN / GTIN

4015081878314

Sales unit

pcs

Eaton catalogue number

189836

Depth

76 mm

Height

65 mm

Width

68 mm

Weight

0.008 kg

Compliances

UL/CSA; IEC; RoHS conform

Accessory/spare part type

Communication and measuring function; Communications module; Accessory

Frame

NZM2/3/4

Special features

Baud Rates 9600, 19200, 38400, 57600 (default 19200) For the Fieldbus connection. The module is mounted in the right hand accessory pocket of the circuit breaker. For connection to Modbus RTU. RS485 interface Cannot be used with the PXR10 NZM-AX electronic trip.

Type

Communications module

Used with

NZM2(3)(4)(-4)-VX(MX)(PX)(PMX)

Communication address range

001 - 247 (default 002)

Fieldbus type

Customer-wired standard Modbus connection

Interface type (fieldbus)

Modbus RTU / RS485

Parity

Even, uneven, unavailable (default)

Participant type

Slave

Stop bit

1, 2 (default 1)

Connection type

Pre-wired connection (communication, NZM connection); Push-In (supply connection, rated control voltage)

Strip length

6 mm (supply connection)

Terminal capacity (solid cable)

0.2 mm² - 0.5 mm² (1x) at supply connection

Terminal capacity (stranded cable)

AWG 24 - AWG 20 (1x) at supply connection; 0.25 mm² - 0.5 mm² (1x) at supply connection (uninsulated ferrule according to DIN46224 / 1); 0.2 mm² - 0.5 mm² (1x) at supply connection

Type of accessory/spare part

Communication and measuring function

Accessory

Yes

Spare part

No

Country of origin

Romania

HS Code

8538.90

• EAN 4015081878314
• SAP 1200600960
• Code 82989295
