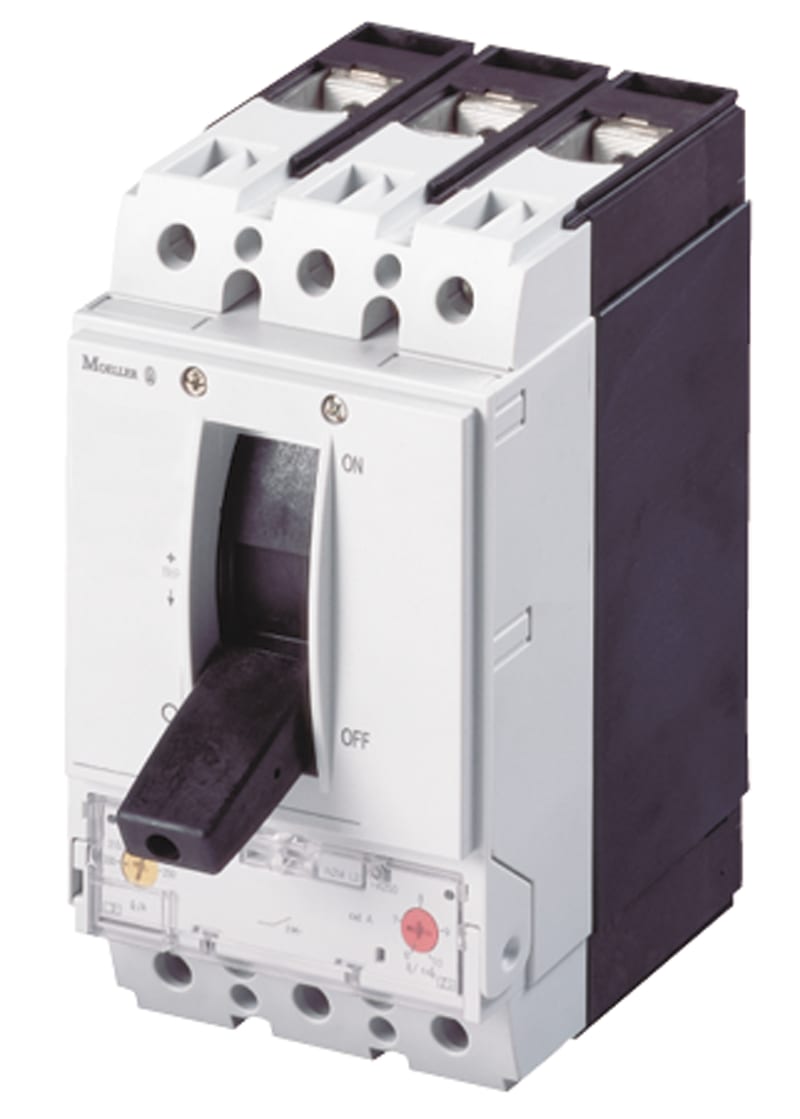

Eaton NZMH2-VE100-S1 Molded-Case Circuit Breaker 3-Pole 100A 150KA

Eaton NZM2 molded-case circuit breaker, type NZMH2-VE100-S1. 3-pole, rated current 100 A, breaking-capacity class H, frame size NZM2 (up to 250 A). Rated operational voltage 1000 V AC; rated ultimate short-circuit breaking capacity (Icu) 150 kA at 400/415 V AC to IEC/EN 60947-2. Electronic trip unit — adjustable overload and short-circuit protection. 1000 V AC circuit-breaker (NZM…-S1 range). Utilization category A, suitable for isolation.

Manufacturer part number (MPN)

NZMH2-VE100-S1

Series

Eaton NZM2 (Moeller series NZM)

Type

Molded-case circuit breaker (MCCB)

Breaking-capacity class

H (high breaking capacity)

Number of poles

3-Pole

Rated current (In)

100 A

Frame size

NZM2 (up to 250 A)

Rated operational voltage (Ue)

1000 V AC

Rated insulation voltage (Ui)

800 V

Rated ultimate short-circuit breaking capacity (Icu) at 400/415 V AC

150 kA

Trip unit / release

Electronic trip unit — adjustable overload and short-circuit protection

Utilization category

A

Suitable for isolation

Yes

Standard

IEC/EN 60947-2

Configuration

1000 V AC circuit-breaker (NZM…-S1 range)

EAN / GTIN

4015081006779

HS code

8536.20

Sales unit

pcs

Eaton catalogue number

100777

Depth

149 mm

Height

184 mm

Width

105 mm

Weight

2.46 kg

Compliances

RoHS conform

Certifications

IEC

Functions

Systems, cable, selectivity and generator protection

Amperage Rating

100 A

Circuit breaker frame type

NZM2

Features

Protection unit; Motor drive optional

Release system

Electronic release

Ambient operating temperature - max

70 °C

Ambient storage temperature - max

70 °C

Ambient operating temperature - min

-25 °C

Ambient storage temperature - min

-40 °C

Equipment heat dissipation, current-dependent

8.25 W

Rated operational current for specified heat dissipation (In)

100 A

Electrical connection type of main circuit

Screw connection

Handle type

Rocker lever

Instantaneous current setting (Ii) - max

1200 A

Instantaneous current setting (Ii) - min

1200 A

Lifespan, electrical

3000 operations at 1000 V AC-1

Number of operations per hour - max

120

Overload current setting (Ir) - max

100 A

Overload current setting (Ir) - min

50 A

Overvoltage category

III

Pollution degree

3

Rated impulse withstand voltage (Uimp) at auxiliary contacts

6000 V

Rated impulse withstand voltage (Uimp) at main contacts

8000 V

Rated short-circuit making capacity Icm at 1000 V

50/60 Hz

17 kA

Rated short-circuit making capacity Icm at 240 V

50/60 Hz

330 kA

Rated short-circuit making capacity Icm at 400/415 V

Rated short-circuit making capacity Icm at 440 V

50/60 Hz

286 kA

Rated short-circuit making capacity Icm at 525 V

50/60 Hz

105 kA

Rated short-circuit making capacity Icm at 690 V

50/60 Hz

40 kA

Rated short-time withstand current (t = 0.3 s)

1.9 kA

Rated short-time withstand current (t = 1 s)

1.9 kA

Short delay current setting (Isd) - max

1000 A

Short delay current setting (Isd) - min

100 A

Short-circuit release delayed setting - max

1000 A

Short-circuit release delayed setting - min

160 A

Short-circuit release non-delayed setting - max

1200 A

Short-circuit release non-delayed setting - min

1200 A

Voltage rating

1000 V - 1000 V

Degree of protection

IP20

Lifespan, mechanical

20000 operations

Mounting Method

Built-in device fixed built-in technique; DIN rail (top hat rail) mounting optional; Fixed

Number of auxiliary contacts (change-over contacts)

0

Number of auxiliary contacts (normally closed contacts)

0

Number of auxiliary contacts (normally open contacts)

0

Position of connection for main current circuit

Front side

Standard terminals

Screw terminal

Terminal capacity (aluminum solid conductor/cable)

16 mm² (1x) at tunnel terminal

Terminal capacity (aluminum stranded conductor/cable)

25 mm² - 185 mm² (1x) at tunnel terminal

Terminal capacity (control cable)

0.75 mm² - 2.5 mm² (1x); 0.75 mm² - 1.5 mm² (2x)

Terminal capacity (copper busbar)

Min. 16 mm x 5 mm direct at switch rear-side connection; Max. 24 mm x 8 mm direct at switch rear-side connection; M8 at rear-side screw connection

Terminal capacity (copper solid conductor/cable)

10 mm² - 16 mm² (2x) direct at switch rear-side connection; 10 mm² - 16 mm² (1x) at box terminal; 6 mm² - 16 mm² (2x) at box terminal; 16 mm² (1x) at tunnel terminal; 10 mm² - 16 mm² (1x) direct at switch rear-side connection

Terminal capacity (copper stranded conductor/cable)

25 mm² - 70 mm² (2x) at box terminal; 25 mm² - 185 mm² (1x) at box terminal; 25 mm² - 185 mm² (1x) at tunnel terminal; 25 mm² - 50 mm² (2x) direct at switch rear-side connection
