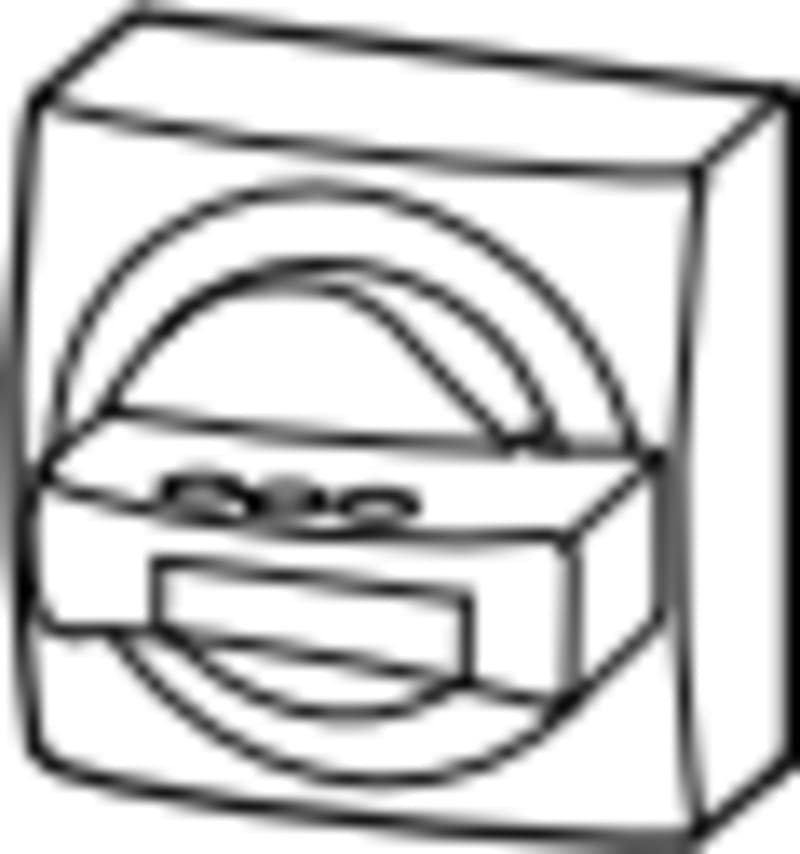

Eaton Rotary handle Lockable Black Low Type NZM2-XTVDV-0

Eaton NZM2-XTVDV-0 Rotary handle Lockable Black Low Type.

Manufacturer part number (MPN)

NZM2-XTVDV-0

EAN / GTIN

4015082793975

Sales unit

pcs

Eaton catalogue number

279397

Depth

75 mm

Height

190 mm

Width

90 mm

Weight

0.723 kg

Compliances

UL/CSA; IEC; RoHS conform

Certifications

UL489; CSA (File No. 22086); CSA certified; CE marking; UL listed; CSA-C22.2 No. 5-09; IEC60947; UL (File No. E140305); UL (Category Control Number DIHS); CSA (Class No. 1437-01)

Features

Standard: black / gray; Lockable

Fitted with

Padlock

Frame

NZM2

Suitable for

Switch disconnector; Power circuit breaker

Type

Accessory Door coupling rotary handle

Used with

NZM2(-4), PN2(-4), N(S)2(-4)

Color

Black

Cover/door type

Door interlock can be modified such that it can be defeated from the outside using a screwdriver; Door can be opened in OFF; Door interlock can be modified in the unlocked ON position; Door interlock not defeated in the locked OFF and ON positions

Degree of protection / NEMA enclosure type

IP66; 4X. 12

Lock number

Double lockable

Locking facility

With door interlock; Modifiable on handle in I position as well; Lockable on the handle on the switch using up to 3 padlocks

Colour

Black

Lockable

Yes

Padlock locking

Yes

Suitable for emergency stop

No

With extension shaft

No

With restart blockage

No

Suitable for power circuit breaker

Yes

Suitable for switch disconnector

Yes

Degree of protection (NEMA)

4X, 12

With key lock

No

Country of origin

Germany

HS Code

8538.90

• EAN 4015082793975
• SAP 1000038366
• Code 8744206
