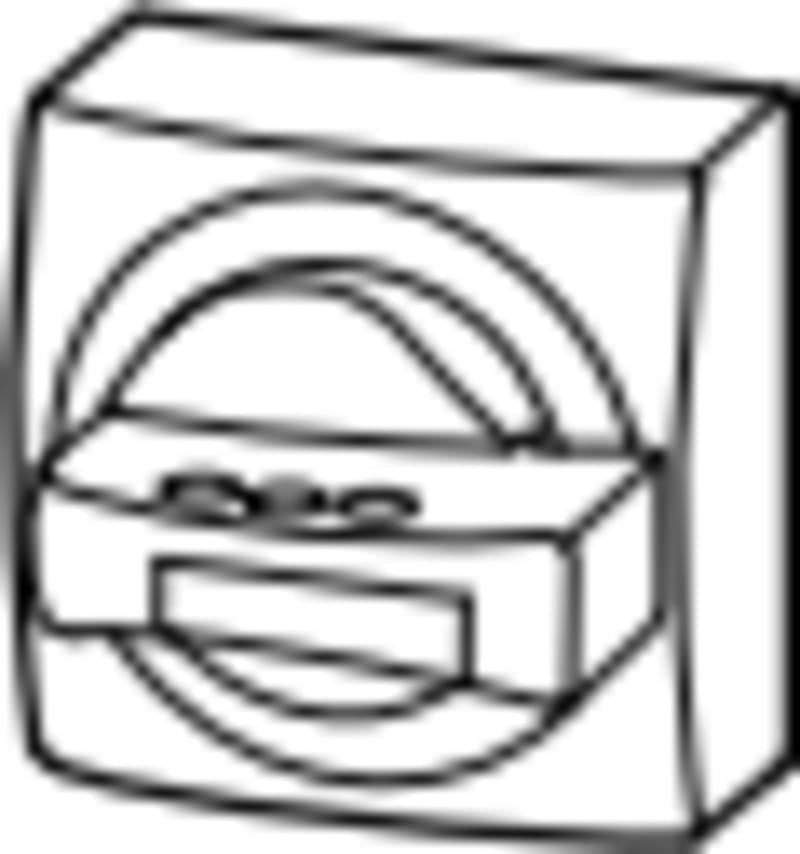

Eaton Rotary handle Lockable Black Low Type NZM1-XTVDV-0

Eaton NZM1-XTVDV-0 Rotary handle Lockable Black Low Type.

Manufacturer part number (MPN)

NZM1-XTVDV-0

EAN / GTIN

4015082793968

Sales unit

pcs

Eaton catalogue number

279396

Depth

75 mm

Height

190 mm

Width

90 mm

Weight

0.55 kg

Compliances

UL/CSA; IEC; RoHS conform

Certifications

UL (File No. E140305); IEC60947; CSA (File No. 22086); UL listed; CSA (Class No. 1437-01); CSA-C22.2 No. 5-09; CSA certified; UL (Category Control Number DIHS); UL489; CE marking

Features

Lockable; Standard: black / gray

Fitted with

Padlock

Frame

NZM1

Suitable for

Switch disconnector; Power circuit breaker

Type

Door coupling rotary handle

Used with

NZM1(-4), PN1(-4), N(S)1(-4)

Color

Black

Cover/door type

Door interlock not defeated in the locked OFF and ON positions; Door interlock can be modified such that it can be defeated from the outside using a screwdriver; Door interlock can be modified in the unlocked ON position; Door can be opened in OFF

Degree of protection / NEMA enclosure type

IP66; 4X. 12

Lock number

Double lockable

Locking facility

Modifiable on handle in I position as well; With door interlock; Lockable on the handle on the switch using up to 3 padlocks

Colour

Black

Lockable

Yes

Padlock locking

Yes

Suitable for emergency stop

No

With extension shaft

No

With restart blockage

No

Suitable for power circuit breaker

Yes

Suitable for switch disconnector

Yes

Degree of protection (NEMA)

4X, 12

With key lock

No

Country of origin

Germany

HS Code

8538.90

• EAN 4015082793968
• SAP 1000053048
• Code 8821890
