Eaton

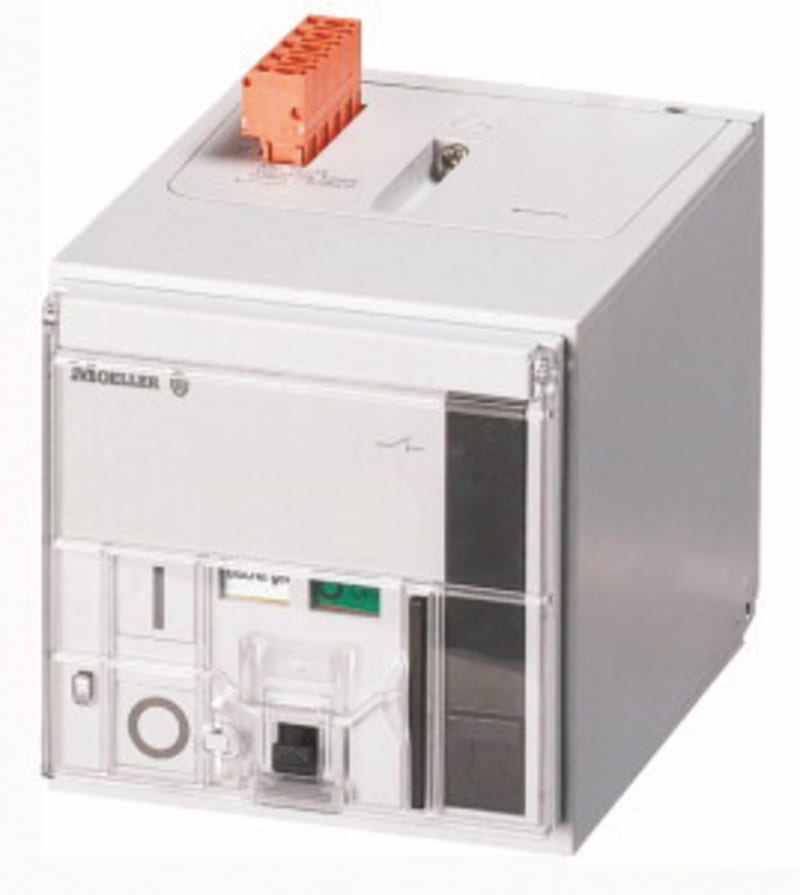

Motor Drive 230VAC (NZM4-XR208-240AC)
Part numberNZM4-XR208-240ACEAN / GTIN4015082666859HS code8538.90
Electrical Components
Circuit Breaker Accessories
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Eaton NZM4-XR208-240AC Motor Drive for size 4, 208-240VAC.
Technical Specifications
- Manufacturer part number (MPN)
- NZM4-XR208-240AC
- EAN / GTIN
- 4015082666859
- Sales unit
- pcs
- Eaton catalogue number
- 266685
- Depth
- 189 mm
- Height
- 202 mm
- Width
- 210 mm
- Weight
- 6.1 kg
- Compliances
- IEC; UL/CSA; RoHS conform
- Certifications
- CSA certified; CSA (Class No. 1437-01); UL listed; UL489; UL (File No. E140305); UL (Category Control Number DIHS); CE marking; IEC60947; CSA (File No. 22086); CSA-C22.2 No. 5-09
- Frame
- NZM4
- Number of poles
- Three-pole/Four-pole
- Special features
- Cannot be combined with switch-disconnector PN... Do not install M22-CK11(20/02) dual auxiliary contacts in the right-hand side auxiliary contact slot in NZM4-XR
- Type
- Accessory Remote operator, can be synchronized
- Used with
- N(S)4(-4); NZM4(-4)
- Breaking time
- 3000 ms
- Closing delay
- 100 ms
- Number of operations per hour - max
- 20
- Operating voltage - max
- 1.1 x Us
- Operating voltage - min
- 0.85 x Us
- Power consumption
- 350 VA (110 - 130 V AC)
- Rated control supply voltage (Us) at AC, 50 Hz - max
- 240 V
- Rated control supply voltage (Us) at AC, 50 Hz - min
- 208 V
- Rated control supply voltage (Us) at AC, 60 Hz - max
- 240 V
- Rated control supply voltage (Us) at AC, 60 Hz - min
- 208 V
- Rated operating frequency
- 50 Hz
- Signal duration of remote operator at switch off - min
- 500 ms
- Signal duration of remote operator at switch on - min
- 30 ms
- Voltage rating
- 208 - 240 V 50/60 Hz
- Voltage tolerance - max
- 1.1
- Voltage tolerance - min
- 0.85
- Voltage type
- AC
- Lifespan, mechanical
- 10000 operations
- Switch drive type
- Motor drive
- Terminal capacity (solid/flexible conductor)
- 0.75 mm² - 2.5 mm² with ferrule; 18 - 14 AWG
- Rated control supply voltage AC 50 Hz
- 208–240 V
- Rated control supply voltage AC 60 Hz
- 208–240 V
- Type of switch drive
- Motor drive
- Voltage type for actuating
- AC
- Country of origin
- Romania
Standards & Compliance
- HS Code
- 8538.90
Cross References
- EAN 4015082666859
- SAP 1000040825
- Code 8522427
Product Documentation
Document preview: MOTOR DRIVE 230VAC (NZM4-XR208-240AC) — Specification Data Sheet (OEM)
