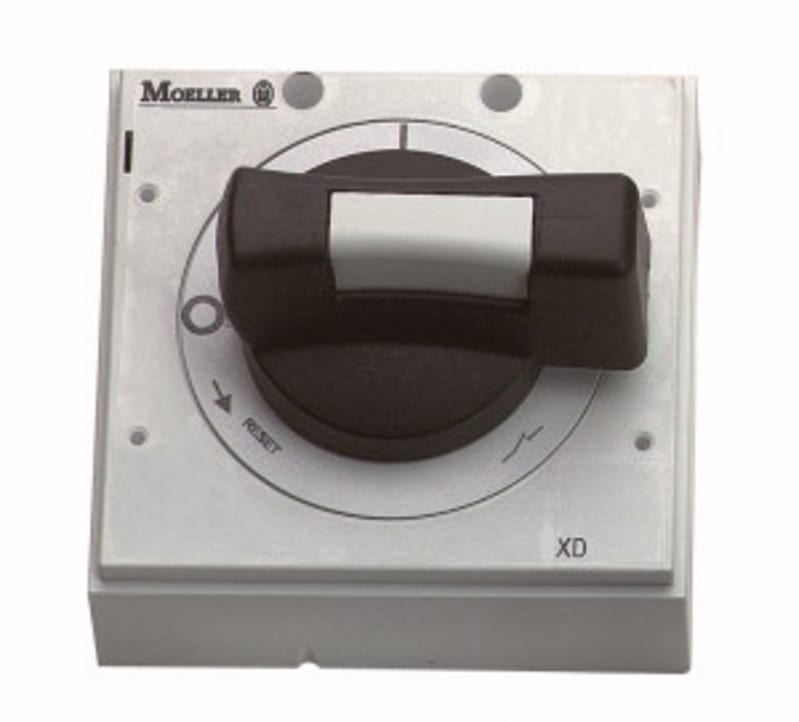

Eaton NZM4-XDV
Pricing
Request a quote
We reply within 24 hours
Overview
Eaton NZM4-XDV is listed under Electrical Components / Circuit Breaker Accessories. Sales unit: pcs; Eaton catalogue number: 266608; Depth: 150 mm; Height: 80 mm; Width: 210 mm; Weight: 1.314 kg.
Technical Specifications
- Manufacturer part number (MPN)
- NZM4-XDV
- EAN / GTIN
- 4015082666088
- Sales unit
- pcs
- Eaton catalogue number
- 266608
- Depth
- 150 mm
- Height
- 80 mm
- Width
- 210 mm
- Weight
- 1.314 kg
- Compliances
- IEC; UL/CSA; RoHS conform
- Certifications
- UL listed; CSA (Class No. 1437-01); UL (File No. E140305); CSA certified; CSA (File No. 22086); IEC60947; UL489; CSA-C22.2 No. 5-09; UL (Category Control Number DIHS); CE marking
- Features
- Lockable; Standard: black / gray
- Fitted with
- Padlock; Extension shaft
- Frame
- NZM4
- Special features
- Complete with rotary drive Cannot be combined with insulating surround MODAN handle position detection by wire release can be retrofitted Makes it possible to operate the switch with a rotational movement and provides locking facilities
- Suitable for
- Switch disconnector; Power circuit breaker
- Type
- Rotary handle on circuit-breaker
- Used with
- NZM4(-4), N(S)4(-4)
- Activation type
- Rotary handle
- Color
- Black
- Degree of protection / NEMA enclosure type
- IP20; 4X. 12
- Locking facility
- Lockable on the 0 position on the switch using up to 3 padlocks
- Colour
- Black
- Lockable
- Yes
- Padlock locking
- Yes
- Suitable for emergency stop
- No
- With extension shaft
- Yes
- With restart blockage
- No
- Suitable for power circuit breaker
- Yes
- Suitable for switch disconnector
- Yes
- Degree of protection (NEMA)
- 4X, 12
- With key lock
- No
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8538.90
Cross References
- EAN 4015082666088
- SAP 1000064607
- Code 8901171
Product Documentation
