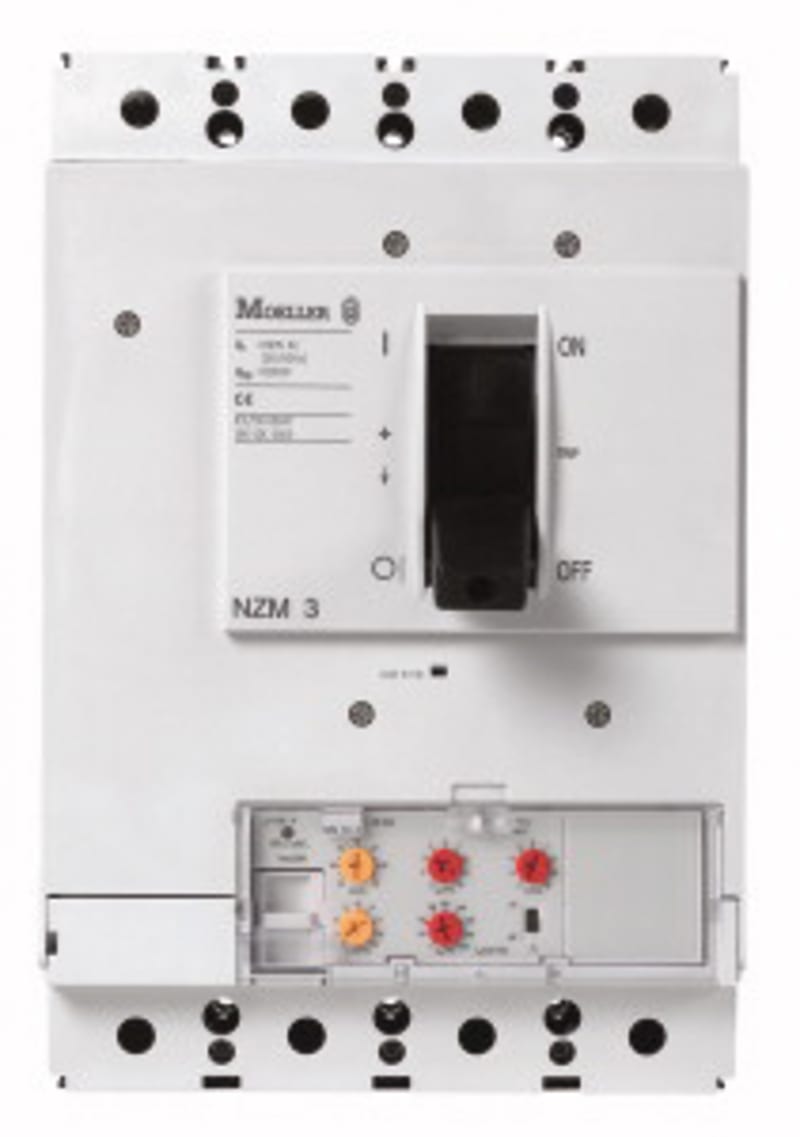

Eaton NZMN3-4-VE630 Molded-Case Circuit Breaker 4-Pole 630A 50KA
Pricing
Request a quote
We reply within 24 hours
Product Description
Eaton NZM3 molded-case circuit breaker, type NZMN3-4-VE630. 4-pole, rated current 630 A, breaking-capacity class N, frame size NZM3 (up to 630 A). Rated operational voltage 690 V AC; rated ultimate short-circuit breaking capacity (Icu) 50 kA at 400/415 V AC to IEC/EN 60947-2. Electronic trip unit — adjustable overload and short-circuit protection. Utilization category A, suitable for isolation.
Technical Specifications
- Manufacturer part number (MPN)
- NZMN3-4-VE630
- Series
- Eaton NZM3 (Moeller series NZM)
- Type
- Molded-case circuit breaker (MCCB)
- Breaking-capacity class
- N (standard breaking capacity)
- Number of poles
- 4-Pole
- Rated current (In)
- 630 A
- Frame size
- NZM3 (up to 630 A)
- Rated operational voltage (Ue)
- 690 V AC
- Rated insulation voltage (Ui)
- 800 V
- Rated ultimate short-circuit breaking capacity (Icu) at 400/415 V AC
- 50 kA
- Trip unit / release
- Electronic trip unit — adjustable overload and short-circuit protection
- Utilization category
- A
- Suitable for isolation
- Yes
- Standard
- IEC/EN 60947-2
- EAN / GTIN
- 4015082659608
- HS code
- 8536.20
- Sales unit
- pcs
- Eaton catalogue number
- 265960
- Depth
- 166 mm
- Height
- 275 mm
- Width
- 185 mm
- Weight
- 9.123 kg
- Compliances
- RoHS conform
- Certifications
- IEC/EN 60947; IEC
- Functions
- Systems, cable, selectivity and generator protection
- Amperage Rating
- 630 A
- Application
- Use in unearthed supply systems at 690 V
- Circuit breaker frame type
- NZM3
- Features
- Protection unit; Motor drive optional
- Release system
- Electronic release
- Ambient operating temperature - max
- 70 °C
- Ambient storage temperature - max
- 70 °C
- Ambient operating temperature - min
- -25 °C
- Equipment heat dissipation, current-dependent
- 178.61 W
- Rated operational current for specified heat dissipation (In)
- 630 A
- Current rating of neutral conductor
- 200% of phase conductor
- Direction of incoming supply
- As required
- Electrical connection type of main circuit
- Screw connection
- Handle type
- Rocker lever
- Instantaneous current setting (Ii) - max
- 5040 A
- Instantaneous current setting (Ii) - min
- 1260 A
- Isolation
- 300 V AC (between the auxiliary contacts); 500 V AC (between auxiliary contacts and main contacts)
- Lifespan, electrical
- 2000 operations at 415 V AC-3; 3000 operations at 690 V AC-1; 5000 operations at 400 V AC-1; 5000 operations at 415 V AC-1; 2000 operations at 690 V AC-3; 2000 operations at 400 V AC-3
- Number of operations per hour - max
- 60
- Overload current setting (Ir)
- 315 A - 630 A
- Overload current setting (Ir) - max
- 630 A
- Overload current setting (Ir) - min
- 315 A
- Overvoltage category
- III
- Pollution degree
- 3
- Rated impulse withstand voltage (Uimp) at auxiliary contacts
- 6000 V
- Rated impulse withstand voltage (Uimp) at main contacts
- 8000 V
- Rated short-circuit making capacity Icm at 240 V
- 50/60 Hz
- 187 kA
- Rated short-circuit making capacity Icm at 400/415 V
- 50/60 Hz
- 105 kA
- Rated short-circuit making capacity Icm at 440 V
- 50/60 Hz
- 74 kA
- Rated short-circuit making capacity Icm at 525 V
- 50/60 Hz
- 53 kA
- Rated short-circuit making capacity Icm at 690 V
- 50/60 Hz
- 40 kA
- Rated short-time withstand current (t = 0.3 s)
- 3.3 kA
- Rated short-time withstand current (t = 1 s)
- 3.3 kA
- Short delay current setting (Isd) - max
- 4410 A
- Short delay current setting (Isd) - min
- 472 A
- Short-circuit release delayed setting - max
- 4410 A
- Short-circuit release delayed setting - min
- 472.5 A
- Short-circuit release non-delayed setting - max
- 5040 A
- Short-circuit release non-delayed setting - min
- 1260 A
- Short-circuit total breaktime
- < 10 ms
- Voltage rating
- 690 V - 690 V
- Climatic proofing
- Damp heat, cyclic, to IEC 60068-2-30; Damp heat, constant, to IEC 60068-2-78
- Degree of protection
- IP20; IP20 (basic degree of protection, in the operating controls area)
- Degree of protection (IP), front side
- IP40 (with insulating surround); IP66 (with door coupling rotary handle)
- Degree of protection (terminations)
- IP10 (tunnel terminal); IP00 (terminations, phase insulator and strip terminal)
- Lifespan, mechanical
- 15000 operations
- Mounting Method
- Built-in device fixed built-in technique; Fixed
- Number of auxiliary contacts (change-over contacts)
- 0
- Number of auxiliary contacts (normally closed contacts)
- 0
- Number of auxiliary contacts (normally open contacts)
- 0
- Position of connection for main current circuit
- Front side
- Protection against direct contact
- Finger and back-of-hand proof to DIN EN 50274/VDE 0106 part 110
- Shock resistance
- 20 g (half-sinusoidal shock 20 ms)
- Optional terminals
- Box terminal. Connection on rear. Tunnel terminal
- Standard terminals
- Screw terminal
- Terminal capacity (aluminum solid conductor/cable)
- 16 mm² (1x) direct at switch rear-side connection; 16 mm² (1x) at tunnel terminal; 10 mm² - 16 mm² (2x) direct at switch rear-side connection
- Terminal capacity (aluminum stranded conductor/cable)
- 50 mm² - 240 mm² (2x) at 2-hole tunnel terminal; 25 mm² - 120 mm² (1x) direct at switch rear-side connection; 50 mm² - 240 mm² (1x) at 2-hole tunnel terminal; 25 mm² - 120 mm² (2x) direct at switch rear-side connection; 25 mm² - 185 mm² (1x) at tunnel terminal
- Terminal capacity (control cable)
- 0.75 mm² - 1.5 mm² (2x); 0.75 mm² - 2.5 mm² (1x)
- Terminal capacity (copper busbar)
- M10 at rear-side screw connection; Max. 10 mm x 50 mm (2x) at rear-side width extension; Max. 30 mm x 10 mm + 30 mm x 5 mm direct at switch rear-side connection; Min. 20 mm x 5 mm direct at switch rear-side connection
- Terminal capacity (copper solid conductor/cable)
- 16 mm² (2x) at box terminal; 300 mm² (2x) at rear-side width extension; 16 mm² (1x) direct at switch rear-side connection; 16 mm² (1x) at tunnel terminal; 16 mm² (2x) direct at switch rear-side connection
- Terminal capacity (copper stranded conductor/cable)
- 25 mm² - 240 mm² (1x) direct at switch rear-side connection; 50 mm² - 240 mm² (2x) at 2-hole tunnel terminal; 16 mm² - 185 mm² (1x) at 1-hole tunnel terminal; 35 mm² - 240 mm² (1x) at box terminal; 25 mm² - 120 mm² (2x) at box terminal; 25 mm² - 240 mm² (2x) direct at switch rear-side connection
