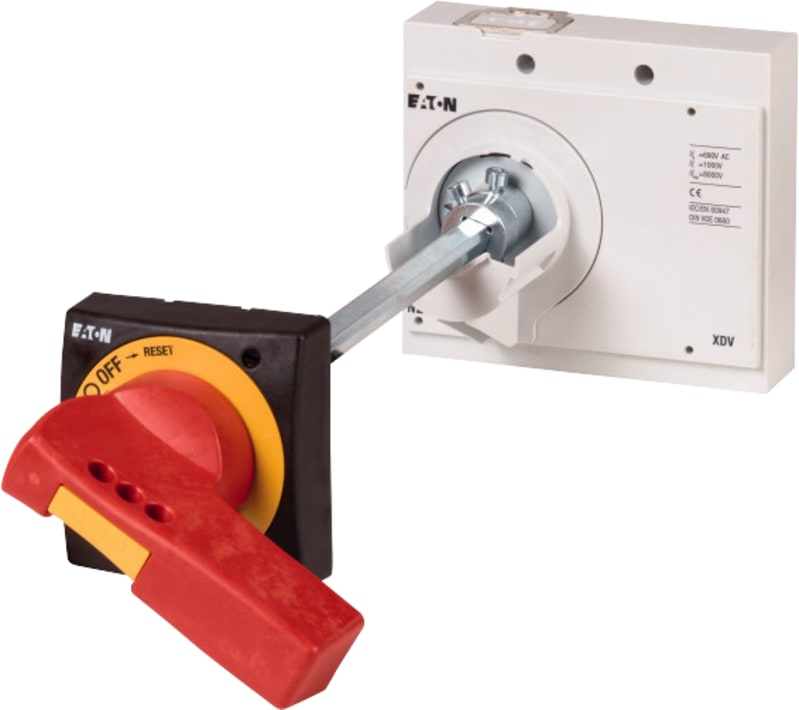

Eaton NZM3-XTVDVR Door-Coupling Rotary Handle Lockable Red
Pricing
Request a quote
We reply within 24 hours
Product Description
Eaton NZM3-XTVDVR lockable red-yellow door-coupling rotary handle for NZM3, PN3 and N(S)3 series switches, suitable for emergency-stop applications. Complete with rotary drive and coupling parts; extension shaft required separately. IP66 with door closed; door interlock cannot be defeated in the locked OFF position.
Technical Specifications
- Manufacturer part number (MPN)
- NZM3-XTVDVR
- EAN / GTIN
- 4015082601829
- Sales unit
- pcs
- Eaton catalogue number
- 260182
- Depth
- 100 mm
- Height
- 230 mm
- Width
- 120 mm
- Weight
- 1.434 kg
- Compliances
- UL/CSA; IEC; RoHS conform
- Certifications
- IEC60947; CSA certified; UL (Category Control Number DIHS); CSA (Class No. 1437-01); CSA (File No. 22086); CSA-C22.2 No. 5-09; UL listed; UL489; UL (File No. E140305); CE marking
- Features
- Lockable; Red-yellow for emergency switching off
- Fitted with
- Padlock
- Frame
- NZM3
- Special features
- Door coupling rotary handle for operating the switch through a closed control panel door External warning plate/designation label can be clipped on. Complete including rotary drive and coupling parts Extension shaft additionally required.
- Suitable for
- Switch disconnector; Power circuit breaker; Emergency stop
- Type
- Accessory Door coupling rotary handle
- Used with
- NZM3(-4), PN3(-4), N(S)3(-4)
- Color
- Red
- Cover/door type
- Door interlock not defeated in the locked OFF position.; Door interlock can be modified in the unlocked ON position; Door interlock can be modified such that it can be defeated from the outside using a screwdriver; Door can be opened in OFF
- Degree of protection / NEMA enclosure type
- IP66; 4X. 12
- Lock number
- Double lockable
- Locking facility
- Lockable on the handle on the switch using up to 3 padlocks; With door interlock
- Colour
- Black
- Lockable
- Yes
- Padlock locking
- Yes
- Suitable for emergency stop
- Yes
- With extension shaft
- No
- With restart blockage
- No
- Suitable for power circuit breaker
- Yes
- Suitable for switch disconnector
- Yes
- Degree of protection (NEMA)
- 4X, 12
- With key lock
- No
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8538.90
Cross References
- EAN 4015082601829
- SAP 1000081949
- Code 8828329
Product Documentation
More from Eaton
Eaton
Terminal cover SS-IP20-R
Eaton
Eaton FAZT-D2/3N Miniature Circuit Breaker — 3P+N, Type D, 2 A, 25 kA
Eaton
variable-frequency drive DM1-34012EB-S20S-EM
Eaton
Eaton DILMT9(230V50HZ/240V60HZ) Contactor, 3-Pole, 4 kW, 230 V AC
Eaton
Contactor 4P. 190-230V 50/60Hz (DILMP200(RAC240))
Eaton
Contactor DILMC150(RAC240)
Eaton
Marking Tag, RMQ (M22-XCK3)
Eaton
Main switch,P1-40/V/SVB-SW/HI11
Catalogue entry last verified: 2026-09-29. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
