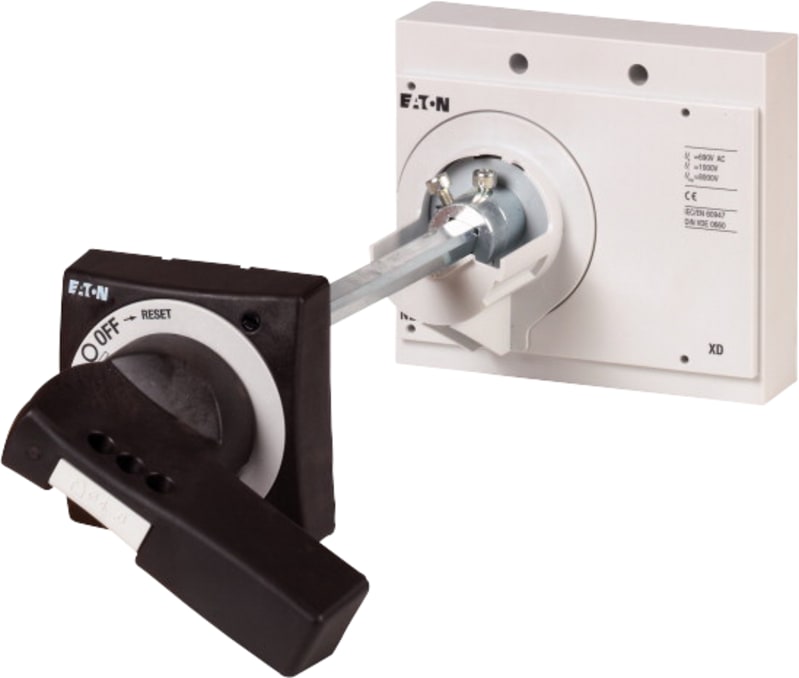

Eaton NZM3 Extended Rotary Door-Coupling Handle, Black, Lockable
Pricing
Request a quote
We reply within 24 hours
Product Description
Eaton NZM3-XTVD door-coupling rotary handle in black for through-door operation of NZM3, PN3 and N(S)3 switch disconnectors and moulded-case circuit breakers. Lockable in the 0 position with up to three padlocks, IP66 / NEMA 4X and 12 protection, complete with rotary drive and coupling parts; extension shaft ordered separately. 120 x 230 x 100 mm envelope, RoHS-compliant, UL and CSA listed to UL 489.
Technical Specifications
- Manufacturer part number (MPN)
- NZM3-XTVD
- EAN / GTIN
- 4015082601706
- Sales unit
- pcs
- Eaton catalogue number
- 260170
- Depth
- 100 mm
- Height
- 230 mm
- Width
- 120 mm
- Weight
- 1.373 kg
- Compliances
- IEC; UL/CSA; RoHS conform
- Certifications
- UL (Category Control Number DIHS); CSA-C22.2 No. 5-09; CSA (Class No. 1437-01); CE marking; UL listed; IEC60947; UL (File No. E140305); CSA (File No. 22086); CSA certified; UL489
- Features
- Lockable; Standard: black / gray
- Fitted with
- Padlock
- Frame
- NZM3
- Special features
- Door coupling rotary handle for operating the switch through a closed control panel door External warning plate/designation label can be clipped on. Complete including rotary drive and coupling parts Extension shaft additionally required.
- Suitable for
- Switch disconnector; Power circuit breaker
- Type
- Accessory Door coupling rotary handle
- Used with
- NZM3(-4), PN3(-4), N(S)3(-4)
- Color
- Black
- Cover/door type
- Door can be opened in OFF; Door interlock not defeated in the locked OFF and ON positions; Door interlock can be modified such that it can be defeated from the outside using a screwdriver; Door interlock can be modified in the unlocked ON position
- Degree of protection / NEMA enclosure type
- IP66; 4X. 12
- Lock number
- Single lockable
- Locking facility
- Lockable on the 0 position on the handle using up to 3 padlocks; With door interlock
- Colour
- Black
- Lockable
- Yes
- Padlock locking
- Yes
- Suitable for emergency stop
- No
- With extension shaft
- No
- With restart blockage
- No
- Suitable for power circuit breaker
- Yes
- Suitable for switch disconnector
- Yes
- Degree of protection (NEMA)
- 4X, 12
- With key lock
- No
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8538.90
Cross References
- EAN 4015082601706
- SAP 1000082494
- Code 8829492
