Eaton

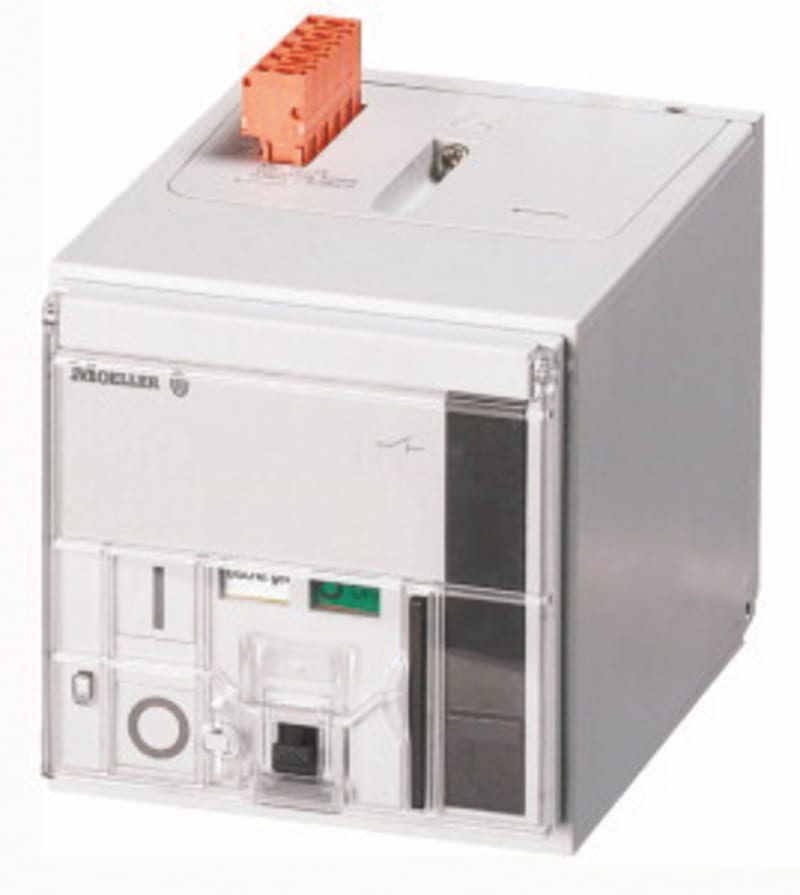

Motor Drive 230V AC (NZM2-XR208-240AC)
Part numberNZM2-XR208-240ACEAN / GTIN4015082598327HS code8538.90
Electrical Components
Circuit Breaker Accessories
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Eaton NZM2-XR208-240AC Motor Drive 230V AC.
Technical Specifications
- Manufacturer part number (MPN)
- NZM2-XR208-240AC
- EAN / GTIN
- 4015082598327
- Sales unit
- pcs
- Eaton catalogue number
- 259832
- Depth
- 150 mm
- Height
- 105 mm
- Width
- 105 mm
- Weight
- 1.833 kg
- Compliances
- IEC; UL/CSA; RoHS conform
- Certifications
- UL489; CSA (File No. 22086); UL (Category Control Number DIHS); CSA-C22.2 No. 5-09; UL listed; CSA (Class No. 1437-01); CSA certified; UL (File No. E140305); CE marking; IEC60947
- Frame
- NZM2
- Number of poles
- Three-pole/Four-pole
- Special features
- Cannot be combined with switch-disconnector PN... Do not install M22-CK11(20/02) dual auxiliary contacts in the center auxiliary contact slot in NZM2-XRD
- Type
- Accessory Remote operator, can be synchronized
- Used with
- N(S)2(-4); NZM2(-4)
- Breaking time
- 300 ms
- Closing delay
- 60 ms
- Number of operations per hour - max
- 120
- Operating voltage - max
- 1.1 x Us
- Operating voltage - min
- 0.85 x Us
- Power consumption
- 350 VA (110 - 130 V AC)
- Rated control supply voltage (Us) at AC, 50 Hz - max
- 240 V
- Rated control supply voltage (Us) at AC, 50 Hz - min
- 208 V
- Rated control supply voltage (Us) at AC, 60 Hz - max
- 240 V
- Rated control supply voltage (Us) at AC, 60 Hz - min
- 208 V
- Rated operating frequency
- 50 Hz
- Signal duration of remote operator at switch off - min
- 150 ms
- Signal duration of remote operator at switch on - min
- 30 ms
- Voltage rating
- 208 - 240 V 50/60 Hz
- Voltage tolerance - max
- 1.1
- Voltage tolerance - min
- 0.85
- Voltage type
- AC
- Lifespan, mechanical
- 20000 operations
- Switch drive type
- Motor drive
- Terminal capacity (solid/flexible conductor)
- 0.75 mm² - 2.5 mm² with ferrule; 18 - 14 AWG
- Rated control supply voltage AC 50 Hz
- 208–240 V
- Rated control supply voltage AC 60 Hz
- 208–240 V
- Type of switch drive
- Motor drive
- Voltage type for actuating
- AC
- Country of origin
- Romania
Standards & Compliance
- HS Code
- 8538.90
Cross References
- EAN 4015082598327
- SAP 1000008350
- Code 866511
Product Documentation
Document preview: MOTOR DRIVE 230V AC (NZM2-XR208-240AC) — Specification Data Sheet (OEM)
