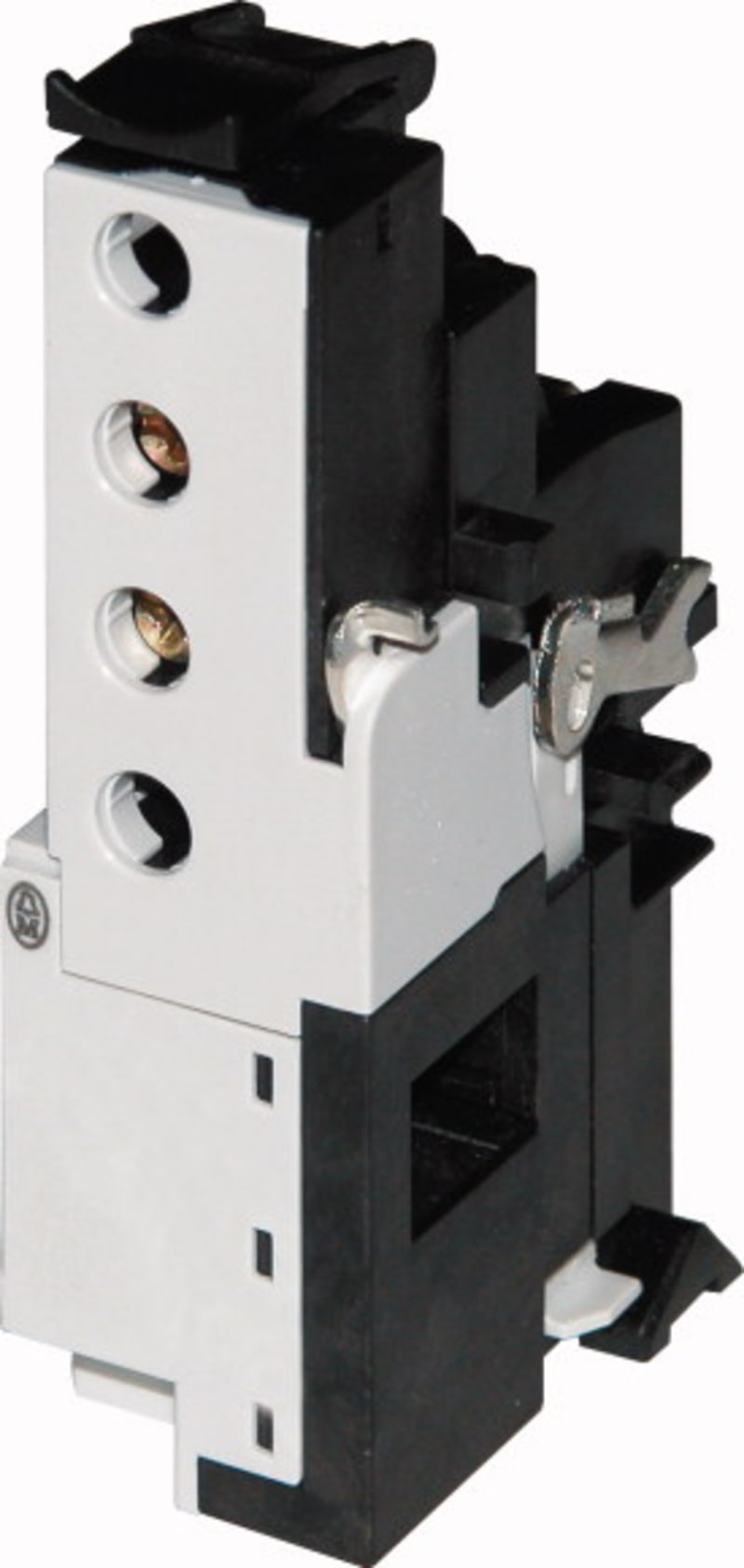

Eaton NZM2/3-XUHIV208-240AC Undervoltage release
Part numberNZM2/3-XUHIV208-240ACEAN / GTIN4015082595913HS code8538.90
Electrical Components
Circuit Breaker Accessories
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Eaton NZM2/3-XUHIV208-240AC Nzm2/3-Xuhiv208-240AC Undervoltage release.
Technical Specifications
- Manufacturer part number (MPN)
- NZM2/3-XUHIV208-240AC EAN / GTIN: 4015082595913 Sales unit: pcs Eaton catalogue number: 259591 Depth: 42 mm Height: 90 mm Width: 30 mm Weight: 0.101 kg Compliances: UL/CSA; IEC; RoHS conform Certifications: CSA (File No. 22086); CSA (Class No. 1437-01); CSA certified; UL489; CSA-C22.2 No. 5-09; UL (File No. E140305); UL (Category Control Number DIHS); IEC60947; UL listed; CE marking Connection: Screw Fitted with: Two early-make auxiliary contacts Frame: NZM2/3 Suitable for: Off-load switch Type: Accessory Undervoltage release with early-make auxiliary contact Used with: NZM3(-4), N(S)3(-4); NZM2(-4), N(S)2(-4) Drop-out voltage of undervoltage release AC/DC - max: 0.7 x Us Drop-out voltage of undervoltage release AC/DC - min: 0.35 x Us Electric connection type: Screw connection minimum command time - max: 15 ms minimum command time - min: 10 ms Pick-up power consumption at AC (undervoltage release): 1.5 VA Pick-up power consumption at DC (undervoltage release): 0.8 W Power consumption: 0.8 W (DC); 1.5 VA (AC) Rated control supply voltage: 208 - 240 V 50/60 Hz Rated control supply voltage (Us) at AC, 50 Hz - max: 240 V Rated control supply voltage (Us) at AC, 50 Hz - min: 208 V Rated control supply voltage (Us) at AC, 60 Hz - max: 240 V Rated control supply voltage (Us) at AC, 60 Hz - min: 208 V Rated control voltage (relay contacts): 240 V AC; 208 V AC Reaction time: 19 ms Voltage tolerance - max: 1.1 Voltage tolerance - min: 0.85 Voltage type: AC Connection type: With bolt connection Number of contacts (change-over contacts): 0 Number of contacts (normally closed contacts): 0 Number of contacts (normally open contacts): 2 Delayed: No Suitable for off-load switch: Yes Suitable for overload relay: No Type of electric connection: Screw connection Rated control supply voltage AC 50 Hz: 208–240 V Rated control supply voltage AC 60 Hz: 208–240 V Suitable for motor safety switch: No Suitable for power circuit breaker: No Voltage type for actuating: AC Number of contacts as normally open contact: 2 Country of origin: Romania
Standards & Compliance
- HS Code
- 8538.90
Cross References
- EAN 4015082595913
- SAP 1000061349
- Code 8548105
Product Documentation
Document preview: Eaton Undervoltage release Supplied for general industrial and marine service under the applicable OEM specification — Specification Data Sheet (OEM)
