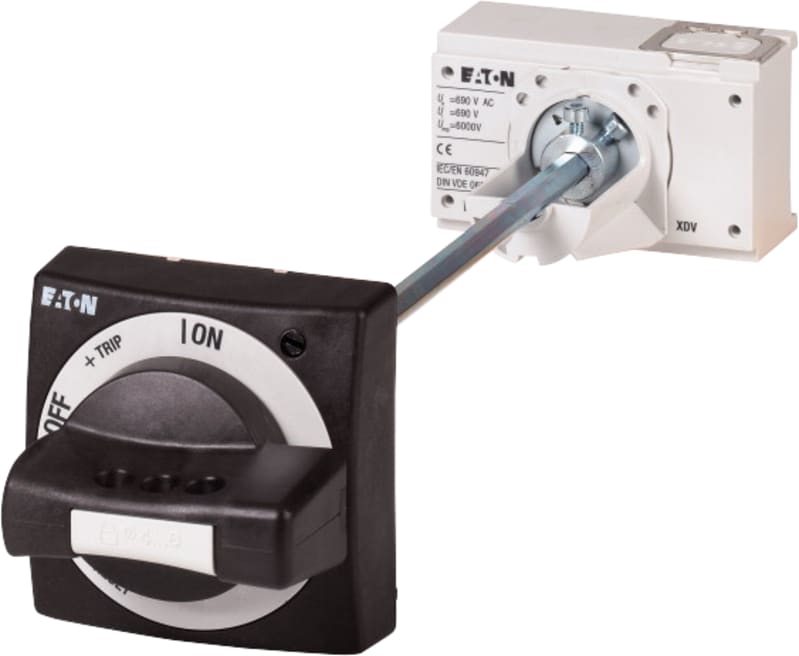

Eaton NZM1-XTVD Rotary Handle Black, Lockable, for Door Coupling
Pricing
Request a quote
We reply within 24 hours
Product Description
Eaton NZM1-XTVD is a door coupling rotary handle for NZM1, PN1 and N(S)1 switch disconnectors and circuit breakers, black, lockable with up to three padlocks in the OFF position. Enables operation through a closed control panel door with IP66 / NEMA 4X and 12 sealing. Extension shaft ordered separately.
Technical Specifications
- Manufacturer part number (MPN)
- NZM1-XTVD
- EAN / GTIN
- 4015082601669
- Sales unit
- pcs
- Eaton catalogue number
- 260166
- Depth
- 75 mm
- Height
- 190 mm
- Width
- 90 mm
- Weight
- 0.595 kg
- Compliances
- IEC; UL/CSA; RoHS conform
- Certifications
- UL489; CE marking; UL (Category Control Number DIHS); IEC60947; CSA certified; CSA (File No. 22086); CSA-C22.2 No. 5-09; UL (File No. E140305); CSA (Class No. 1437-01); UL listed
- Features
- Standard: black / gray; Lockable
- Fitted with
- Padlock
- Frame
- NZM1
- Special features
- Door coupling rotary handle for operating the switch through a closed control panel door External warning plate/designation label can be clipped on. Complete including rotary drive and coupling parts Extension shaft additionally required.
- Suitable for
- Switch disconnector; Power circuit breaker
- Type
- Accessory Door coupling rotary handle
- Used with
- NZM1(-4), PN1(-4), N(S)1(-4)
- Color
- Black
- Cover/door type
- Door interlock can be modified such that it can be defeated from the outside using a screwdriver; Door interlock not defeated in the locked OFF and ON positions; Door can be opened in OFF; Door interlock can be modified in the unlocked ON position
- Degree of protection / NEMA enclosure type
- IP66; 4X. 12
- Lock number
- Single lockable
- Locking facility
- Lockable on the 0 position on the handle using up to 3 padlocks; With door interlock
- Colour
- Black
- Lockable
- Yes
- Padlock locking
- Yes
- Suitable for emergency stop
- No
- With extension shaft
- No
- With restart blockage
- No
- Suitable for power circuit breaker
- Yes
- Suitable for switch disconnector
- Yes
- Degree of protection (NEMA)
- 4X, 12
- With key lock
- No
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8538.90
Cross References
- EAN 4015082601669
- SAP 1000009763
- Code 879387
Product Documentation
More from Eaton
Eaton
Plinth xE Light (XLSPH21353)
Eaton
Cover plate top/bottom P+ xE H2000
XVTL-BP-W-2/20-TB
Eaton
Front, transparent, lockable (D125-CI23-DVZ)
Eaton
Direct-on-line starter,MSC-D-10-M9(24VDC)-PI
Eaton
NH3/2 Switch-disconnector 1P 630 (XNH32-1-A630)
Eaton
Hex socket screw M10X140 8.8 xE Main
XNNSKS-M10X140-8
Eaton
Eaton EMA91 Display Module for S8x1+ Soft Starter
Eaton
LED Steady light, Blue, 24V (SL4-L24-B)
Catalogue entry last verified: 2026-09-29. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy NZM1-XTVD?
- NZM1-XTVD can be ordered from cballast.com as a Eaton catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Eaton product?
- The manufacturer part number is NZM1-XTVD.
- What is the HS code for NZM1-XTVD?
- The customs tariff (HS) code for NZM1-XTVD is 8538.90.
- Who manufactures NZM1-XTVD?
- NZM1-XTVD is a Eaton product in the Electrical Components range.
- Is a datasheet available for NZM1-XTVD?
- Yes — the NZM1-XTVD datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for NZM1-XTVD?
- The minimum order quantity is 1.
- Is NZM1-XTVD available?
- Yes — NZM1-XTVD is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
