Eaton

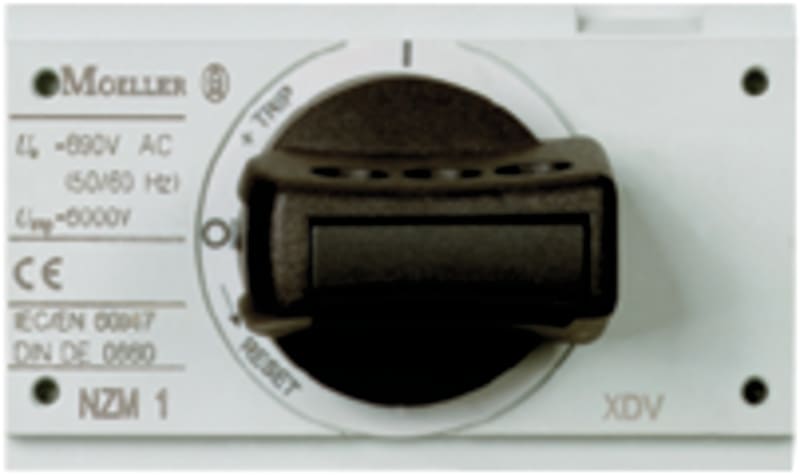

Rotary handle Lockablet Black (NZM1-XDV)
Part numberNZM1-XDVEAN / GTIN4015082601256HS code8538.90
Electrical Components
Circuit Breaker Accessories
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Eaton NZM1-XDV Rotary handle Lockable Black.
Technical Specifications
- Manufacturer part number (MPN)
- NZM1-XDV
- EAN / GTIN
- 4015082601256
- Sales unit
- pcs
- Eaton catalogue number
- 260125
- Depth
- 80 mm
- Height
- 54 mm
- Width
- 90 mm
- Weight
- 0.195 kg
- Compliances
- IEC; UL/CSA; RoHS conform
- Certifications
- CSA (Class No. 1437-01); UL489; UL (Category Control Number DIHS); UL (File No. E140305); UL listed; CE marking; IEC60947; CSA-C22.2 No. 5-09; CSA certified; CSA (File No. 22086)
- Features
- Lockable; Standard: black / gray
- Fitted with
- Padlock
- Frame
- NZM1
- Special features
- Complete with rotary drive Can be combined with insulating surround MODAN handle position detection by wire release can be retrofitted Makes it possible to operate the switch with a rotational movement and provides locking facilities
- Suitable for
- Power circuit breaker; Switch disconnector
- Type
- Accessory Rotary handle on circuit-breaker
- Used with
- NZM1(-4), PN1(-4), N(S)1(-4)
- Activation type
- Rotary handle
- Color
- Black
- Degree of protection / NEMA enclosure type
- IP20; 4X. 12
- Locking facility
- Lockable on the 0 position on the switch using up to 3 padlocks
- Colour
- Black
- Lockable
- Yes
- Padlock locking
- Yes
- Suitable for emergency stop
- No
- With extension shaft
- No
- With restart blockage
- No
- Suitable for power circuit breaker
- Yes
- Suitable for switch disconnector
- Yes
- Degree of protection (NEMA)
- 4X, 12
- With key lock
- No
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8538.90
Cross References
- EAN 4015082601256
- SAP 1000051032
- Code 8823901
Product Documentation
Document preview: VRIGREP LOCKABLET BLACK (NZM1-XDV) — Specification Data Sheet (OEM)
