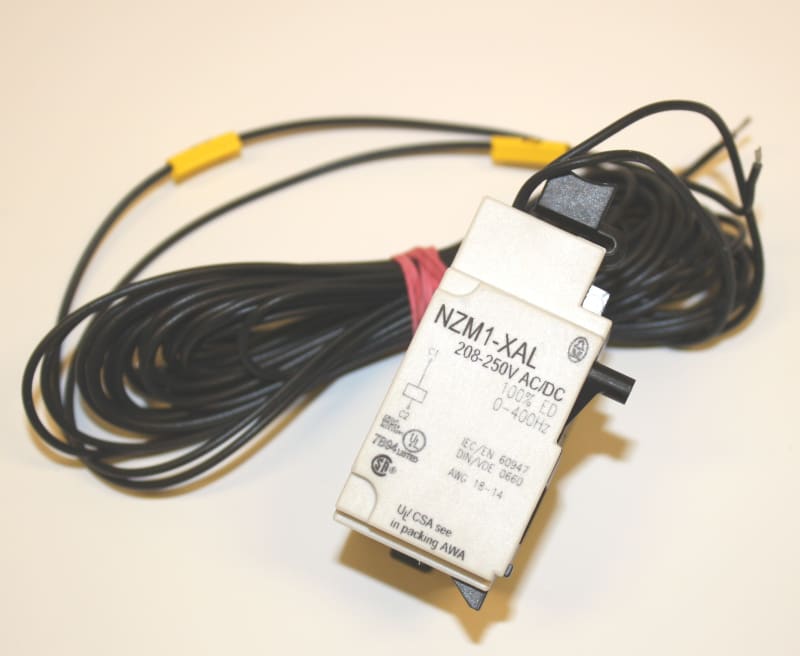

Eaton NZM1 Shunt Trip 208-250 V AC/DC NZM1-XAL208-250AC
Pricing
Request a quote
We reply within 24 hours
Product Description
Eaton NZM1-XAL208-250AC is a shunt-trip release accessory for NZM1 moulded-case circuit breakers, wired via screw terminals and rated 208-250 V AC (50/60 Hz) or DC. Applying voltage to the coil trips the breaker on command, enabling remote or interlocked disconnection from PLC, fire-alarm or emergency-stop circuits. Made in Romania; supplied per piece.
Technical Specifications
- Manufacturer part number (MPN)
- NZM1-XAL208-250AC
- EAN / GTIN
- 4015082597443
- Sales unit
- pcs
- Suitable for off-load switch
- Yes
- Suitable for overload relay
- No
- Type of electric connection
- Screw connection
- Rated control supply voltage AC 50 Hz
- 208–250 V
- Rated control supply voltage AC 60 Hz
- 208–250 V
- Rated control supply voltage DC
- 208–250 V
- Suitable for motor safety switch
- No
- Suitable for power circuit breaker
- No
- Voltage type for actuating
- AC
- Country of origin
- Romania
Standards & Compliance
- HS Code
- 8538.90
Cross References
- EAN 4015082597443
- SAP 1000071201
- Code 8784447
Product Documentation
More from Eaton
Eaton
White left-hand door with window (BP-DT-400/10-L-W)
Eaton
Eaton UPS 5SC1000I 1000VA/700W Tower
Eaton
CONTACTOR,17A AC-3, DC Coil (DILM17-01(RDC24))
Eaton
CONTACTOR,17A AC-3, AC Coil (DILM17-01(24V50HZ))
Eaton
Eaton NZMH2-VX250-T Molded-Case Circuit Breaker 3-Pole 250A 150KA
Eaton
Eaton xComfort DIN-Rail Cover Adapter for Wiring Systems 4x0.5 m 220E3042
Eaton
Front plate sealed H250 B800 xE Basic (EP-502186)
Eaton
Enclosure H×W×D=250X187.5X150M (CI23X-125-NA)
Catalogue entry last verified: 2026-09-29. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy NZM1-XAL208-250AC?
- NZM1-XAL208-250AC can be ordered from cballast.com as a Eaton catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Eaton product?
- The manufacturer part number is NZM1-XAL208-250AC.
- What is the HS code for NZM1-XAL208-250AC?
- The customs tariff (HS) code for NZM1-XAL208-250AC is 8538.90.
- Who manufactures NZM1-XAL208-250AC?
- NZM1-XAL208-250AC is a Eaton product in the Electrical Components range.
- Is a datasheet available for NZM1-XAL208-250AC?
- Yes — the NZM1-XAL208-250AC datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for NZM1-XAL208-250AC?
- The minimum order quantity is 1.
- Is NZM1-XAL208-250AC available?
- Yes — NZM1-XAL208-250AC is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
