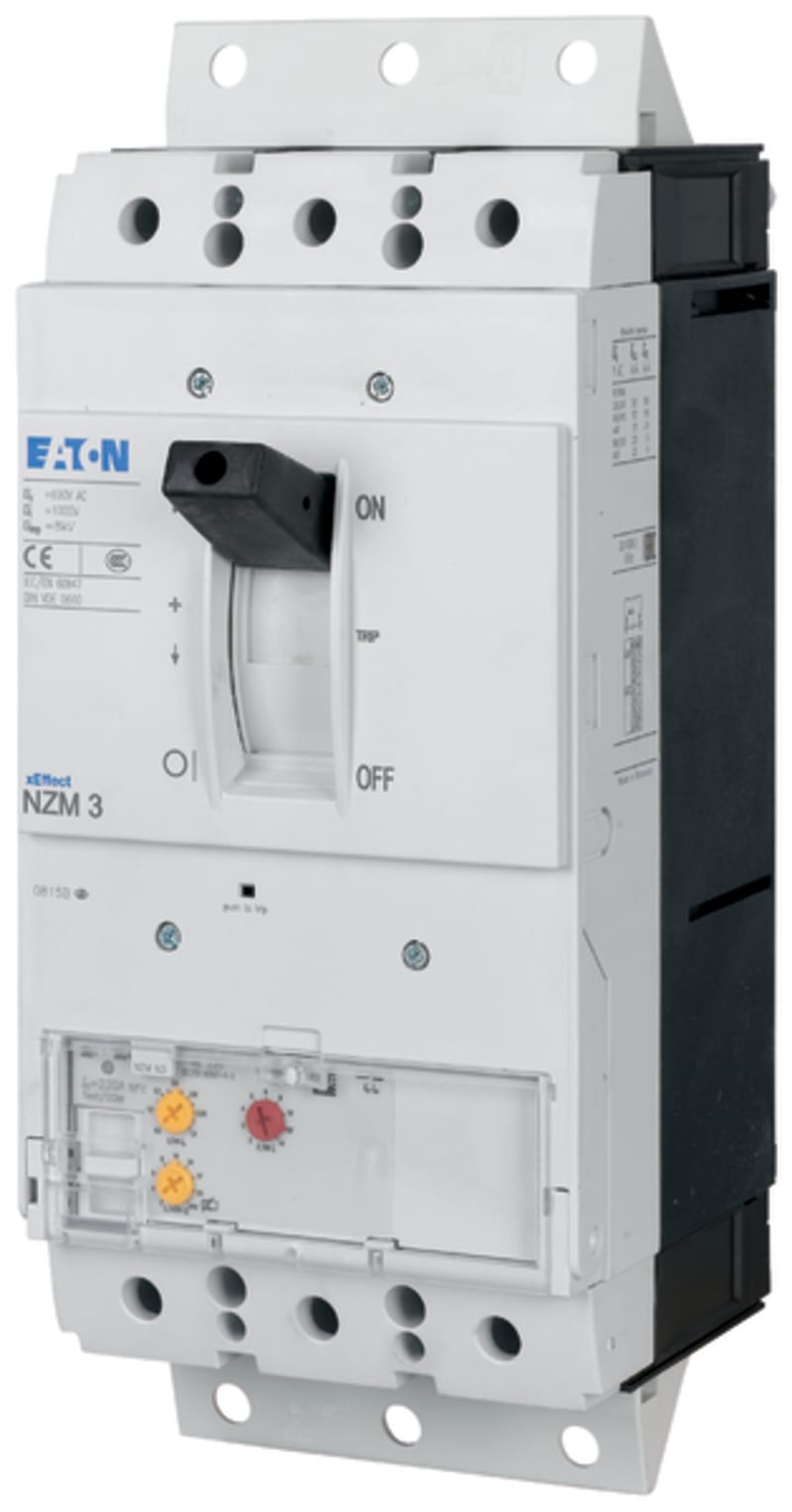

Eaton Pluggable circuit breaker 220A/3P NZMH3-ME220-SVE
Part numberNZMH3-ME220-SVEEAN / GTIN4015081654055HS code8536.90
Electrical Components
Motor Protection Circuit Breakers
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Eaton NZMH3-ME220-SVE Pluggable circuit breaker 220A/3p.
Technical Specifications
- Manufacturer part number (MPN)
- NZMH3-ME220-SVE
- EAN / GTIN
- 4015081654055
- HS code
- 8536.90
- Sales unit
- pcs
- Eaton catalogue number
- 168910
- Depth
- 335 mm
- Height
- 215.2 mm
- Width
- 140 mm
- Weight
- 7.72 kg
- Compliances
- RoHS conform
- Functions
- Phase failure sensitive
- Amperage Rating
- 220 A
- Fitted with
- Thermal protection
- Number of poles
- Three-pole
- Type
- Circuit breaker
- Equipment heat dissipation, current-dependent
- 14.52 W
- Rated operational current for specified heat dissipation (In)
- 220 A
- Direction of incoming supply
- As required
- Electrical connection type of main circuit
- Other
- Handle type
- Rocker lever
- Instantaneous current setting (Ii) - max
- 3080 A
- Instantaneous current setting (Ii) - min
- 440 A
- Overload current setting (Ir) - max
- 220 A
- Overload current setting (Ir) - min
- 110 A
- Rated operating power at AC-3, 230 V
- 55 kW
- Rated operating power at AC-3, 400 V
- 110 kW
- Voltage rating
- 690 V - 690 V
- Degree of protection
- IP20
- Mounting Method
- Built-in device plug-in technique
- Switch off technique
- Electronic
- Document Name
- Description Action
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 4015081654055
- SAP 1200295746
- Code 82266919
Product Documentation
Document preview: Eaton Pluggable circuit breaker 220A/3p — Specification Data Sheet (OEM)
More from Eaton
Eaton
Eaton FAZ-B3/2 Miniature Circuit Breaker — 2P, Type B, 3 A, 15 kA
Eaton
Eaton NZMH2-4-A100-SVE Molded-Case Circuit Breaker 4-Pole 100A 150KA
Eaton
NH-2 500V gG/gL 425A
425NHG2B
Eaton
Contactor, DILM9-01(110V50HZ)-PI (DILM9-01(110V50HZ,120V60HZ)-PI)
Eaton
Cabinet H×W×D 1800X800X500 IP40
XVTL-BF-8/5/18
Eaton
Cable Trunking 200mm H1950 B200 xE Basic
EP-502494
Eaton
Eaton FAZ-C3.5/3N Miniature Circuit Breaker — 3P+N, Type C, 3.5 A, 15 kA
Eaton
Rear Wall ventilated xE Light (XLSR31885)
Catalogue entry last verified: 2026-09-29. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy NZMH3-ME220-SVE?
- NZMH3-ME220-SVE can be ordered from cballast.com as a Eaton catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Eaton product?
- The manufacturer part number is NZMH3-ME220-SVE.
- What is the HS code for NZMH3-ME220-SVE?
- The customs tariff (HS) code for NZMH3-ME220-SVE is 8536.90.
- Who manufactures NZMH3-ME220-SVE?
- NZMH3-ME220-SVE is a Eaton product in the Electrical Components range.
- Is a datasheet available for NZMH3-ME220-SVE?
- Yes — the NZMH3-ME220-SVE datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for NZMH3-ME220-SVE?
- The minimum order quantity is 1.
- Is NZMH3-ME220-SVE available?
- Yes — NZMH3-ME220-SVE is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
