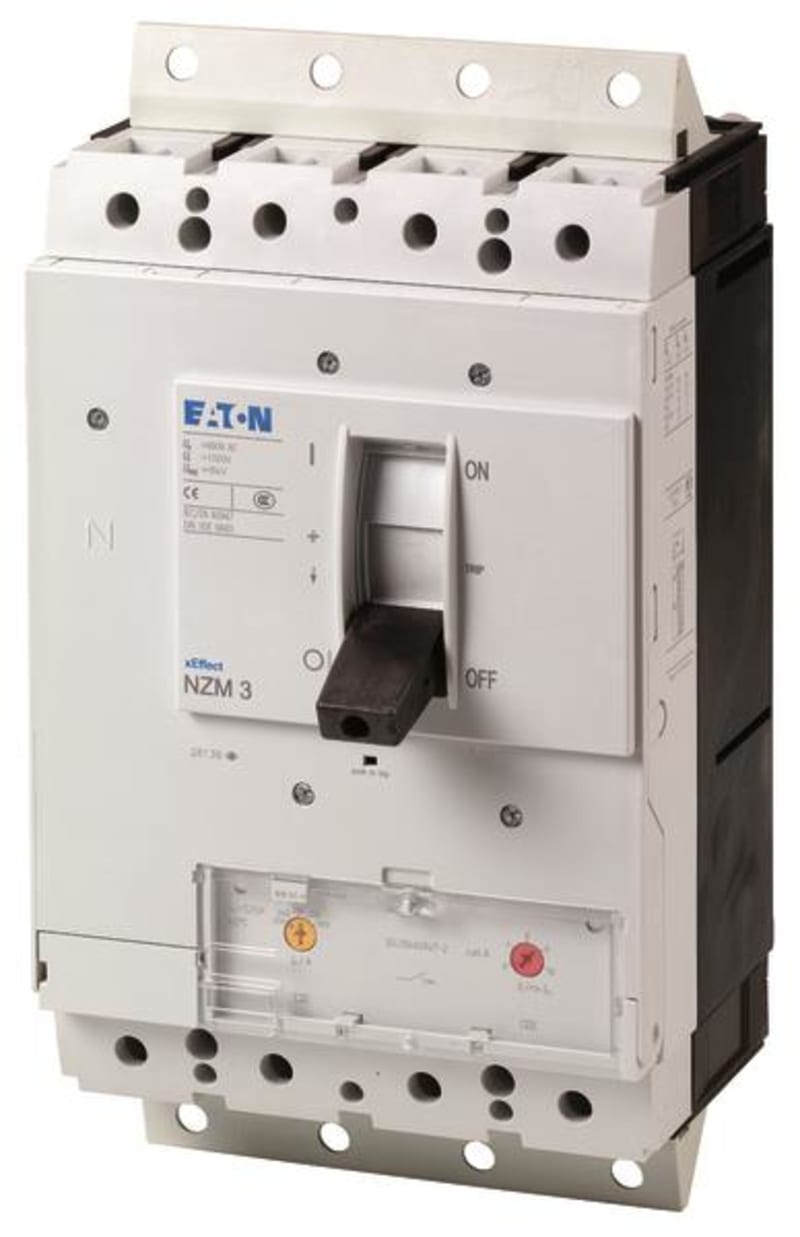

Eaton NZMH3-4-A500/320-SVE Molded-Case Circuit Breaker 4-Pole 500A 150KA

Eaton NZM3 molded-case circuit breaker, type NZMH3-4-A500/320-SVE. 4-pole, rated current 500 A, breaking-capacity class H, frame size NZM3 (up to 630 A). Rated operational voltage 690 V AC; rated ultimate short-circuit breaking capacity (Icu) 150 kA at 400/415 V AC to IEC/EN 60947-2. Thermomagnetic release — adjustable thermal overload and electromagnetic short-circuit protection. Plug-in (withdrawable) version. Utilization category A, suitable for isolation.

Manufacturer part number (MPN)

NZMH3-4-A500/320-SVE

Series

Eaton NZM3 (Moeller series NZM)

Type

Molded-case circuit breaker (MCCB)

Breaking-capacity class

H (high breaking capacity)

Number of poles

4-Pole

Rated current (In)

500 A

Frame size

NZM3 (up to 630 A)

Rated operational voltage (Ue)

690 V AC

Rated insulation voltage (Ui)

800 V

Rated ultimate short-circuit breaking capacity (Icu) at 400/415 V AC

150 kA

Trip unit / release

Thermomagnetic release — adjustable thermal overload and electromagnetic short-circuit protection

Utilization category

A

Suitable for isolation

Yes

Standard

IEC/EN 60947-2

Configuration

Plug-in (withdrawable) version

EAN / GTIN

4015081653850

HS code

8536.20

Sales unit

pcs

Eaton catalogue number

168894

Depth

335 mm

Height

215.2 mm

Width

185 mm

Weight

8.81 kg

Compliances

RoHS conform

Certifications

IEC

Functions

System and cable protection

Amperage Rating

500 A

Features

Protection unit; Motor drive optional

Special features

Rated current = rated uninterrupted current: 500 A

Ambient operating temperature - max

70 °C

Ambient storage temperature - max

70 °C

Ambient operating temperature - min

-25 °C

Equipment heat dissipation, current-dependent

130.5 W

Rated operational current for specified heat dissipation (In)

500 A

Current rating of neutral conductor

60% of phase conductor

Electrical connection type of main circuit

Screw connection

Handle type

Rocker lever

Instantaneous current setting (Ii) - max

10 A

Instantaneous current setting (Ii) - min

6 A

Overload current setting (Ir)

250 A - 320 A

Overload current setting (Ir) - max

500 A

Overload current setting (Ir) - min

400 A

Rated short-circuit breaking capacity Ics (IEC/EN 60947) at 500 V DC

70 kA

Rated short-circuit breaking capacity Ics (IEC/EN 60947) at 750 V DC

70 kA

Short-circuit release non-delayed setting - max

5000 A

Short-circuit release non-delayed setting - min

3000 A

Voltage rating

690 V - 690 V

Degree of protection

IP20

Mounting Method

Built-in device plug-in technique

Number of auxiliary contacts (change-over contacts)

0

Number of auxiliary contacts (normally closed contacts)

0

Number of auxiliary contacts (normally open contacts)

0

Position of connection for main current circuit

Front side
