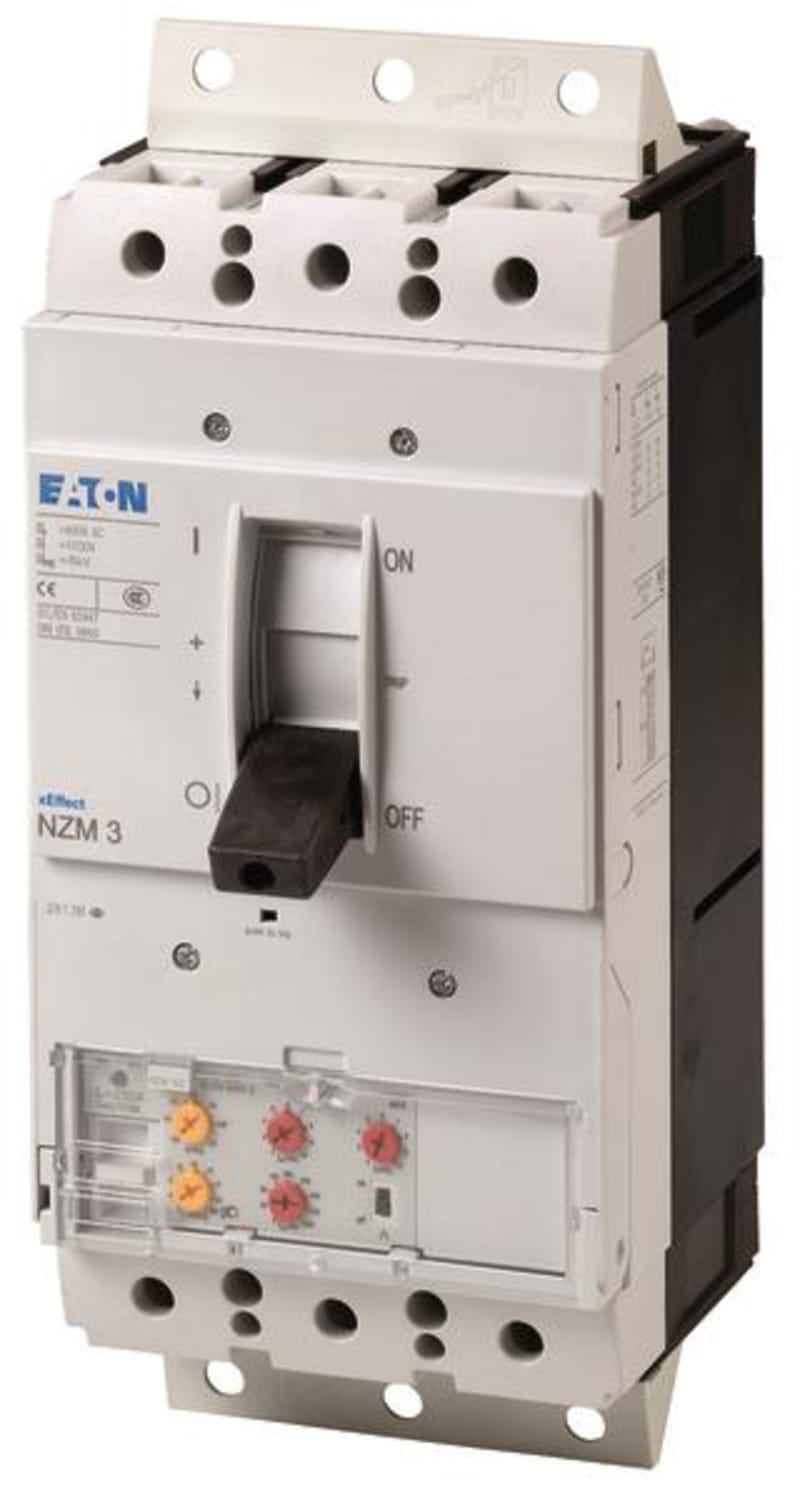

Eaton NZMN3-VE630-SVE Molded-Case Circuit Breaker 3-Pole 630A 50KA
Pricing
Request a quote
We reply within 24 hours
Product Description
Eaton NZM3 molded-case circuit breaker, type NZMN3-VE630-SVE. 3-pole, rated current 630 A, breaking-capacity class N, frame size NZM3 (up to 630 A). Rated operational voltage 690 V AC; rated ultimate short-circuit breaking capacity (Icu) 50 kA at 400/415 V AC to IEC/EN 60947-2. Electronic trip unit — adjustable overload and short-circuit protection. Plug-in (withdrawable) version. Utilization category A, suitable for isolation.
Technical Specifications
- Manufacturer part number (MPN)
- NZMN3-VE630-SVE
- Series
- Eaton NZM3 (Moeller series NZM)
- Type
- Molded-case circuit breaker (MCCB)
- Breaking-capacity class
- N (standard breaking capacity)
- Number of poles
- 3-Pole
- Rated current (In)
- 630 A
- Frame size
- NZM3 (up to 630 A)
- Rated operational voltage (Ue)
- 690 V AC
- Rated insulation voltage (Ui)
- 800 V
- Rated ultimate short-circuit breaking capacity (Icu) at 400/415 V AC
- 50 kA
- Trip unit / release
- Electronic trip unit — adjustable overload and short-circuit protection
- Utilization category
- A
- Suitable for isolation
- Yes
- Standard
- IEC/EN 60947-2
- Configuration
- Plug-in (withdrawable) version
- EAN / GTIN
- 4015081650231
- HS code
- 8536.20
- Sales unit
- pcs
- Eaton catalogue number
- 168482
- Depth
- 335 mm
- Height
- 215.2 mm
- Width
- 140 mm
- Weight
- 7.72 kg
- Compliances
- RoHS conform
- Amperage Rating
- 630 A
- Features
- Motor drive optional; Protection unit
- Equipment heat dissipation, current-dependent
- 119.07 W
- Rated operational current for specified heat dissipation (In)
- 630 A
- Electrical connection type of main circuit
- Screw connection
- Handle type
- Rocker lever
- Instantaneous current setting (Ii) - max
- 6930 A
- Instantaneous current setting (Ii) - min
- 1260 A
- Overload current setting (Ir) - max
- 630 A
- Overload current setting (Ir) - min
- 315 A
- Short delay current setting (Isd) - max
- 6300 A
- Short delay current setting (Isd) - min
- 630 A
- Voltage rating
- 690 V - 690 V
- Degree of protection
- IP20
- Mounting Method
- Built-in device plug-in technique
- Number of auxiliary contacts (change-over contacts)
- 0
- Number of auxiliary contacts (normally closed contacts)
- 0
- Number of auxiliary contacts (normally open contacts)
- 0
- Position of connection for main current circuit
- Front side
- Document Name
- Description Action
Standards & Compliance
- Standard
- Eaton NZM
- HS Code
- 8536.20
Cross References
- EAN 4015081650231
- SAP 1200601013
- Code 82989318
Product Documentation
