Eaton

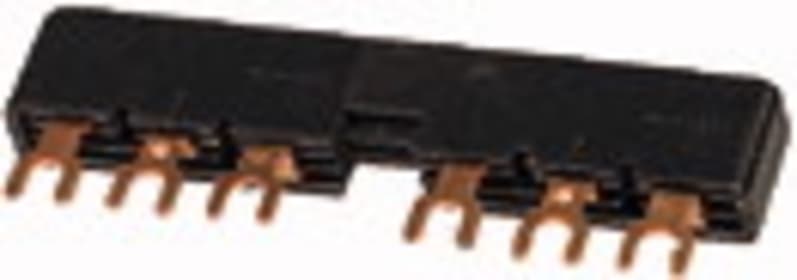

Busbar 2 Switches+U-PKZ0
Part numberB3.2/2-PKZ0EAN / GTIN4015080639633HS code8538.90
Electrical Components
Busbar Systems
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Eaton B3.2/2-PKZ0 Busbar for 2 PKZ0 with auxiliary contact.
Technical Specifications
- Manufacturer part number (MPN)
- B3.2/2-PKZ0
- EAN / GTIN
- 4015080639633
- Sales unit
- pcs
- Package quantity
- 10 pcs
- Eaton catalogue number
- 063963
- Depth
- 109 mm
- Height
- 34 mm
- Width
- 11 mm
- Weight
- 0.039 kg
- Certifications
- CSA-C22.2 No. 14; UL File No.: E36332; IEC/EN 60947-4-1; UL Category Control No.: NLRV; UL; CSA File No.: 98494; CE; UL 508; CSA; CSA Class No.: 3211-06
- Catalog Notes
- For parallel power feed to several motor-protective circuit-breakers on terminals 1, 3, 5 2 circuit breaker with auxiliary contact or trip indicator built onto the right side or a voltage release built onto the left side can be extended by rotating installation protective against direct contact
- Ambient operating temperature - max
- 55 °C
- Ambient operating temperature - min
- -25 °C
- Rated operational current for specified heat dissipation (In)
- 63 A
- Equipment heat dissipation, current-dependent Pvid
- 3.6 W
- Heat dissipation per pole, current-dependent Pvid
- 1.2 W
- Rated operational voltage (Ue) - max
- 690 V
- Rated operational voltage (Ue) at AC - max
- 690 V
- Rated uninterrupted current (Iu)
- 63 A
- Color
- Black
- Features
- Insulated
- Functions
- Can be extended by rotating installation
- Number of poles
- Three-pole
- Number of phases
- 3
- Electric connection type
- Fork
- Mounting width
- 45 + 18 mm
- Overvoltage category
- III
- Pollution degree
- 3
- Product category
- Accessories
- Rated impulse withstand voltage (Uimp)
- 6000 V AC
- Suitable for
- 2 Circuit-breakers
- Used with
- PKZ0; PKE12; PKE32
- Colour
- Black
- Insulated
- Yes
- Rated permanent current Iu
- 63 A
- Length
- 108 mm
- Width in number of modular spacings
- 6
- Rated surge voltage
- 6 kV
- Type of electric connection
- Fork
- Suitable for devices with auxiliary switch
- No
- Suitable for devices with N-conductor
- No
- Suitable for number of devices
- 2
- Max. rated operation voltage Ue
- 690 V
- Module width
- 63 mm
- Can be cut to size
- No
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8538.90
