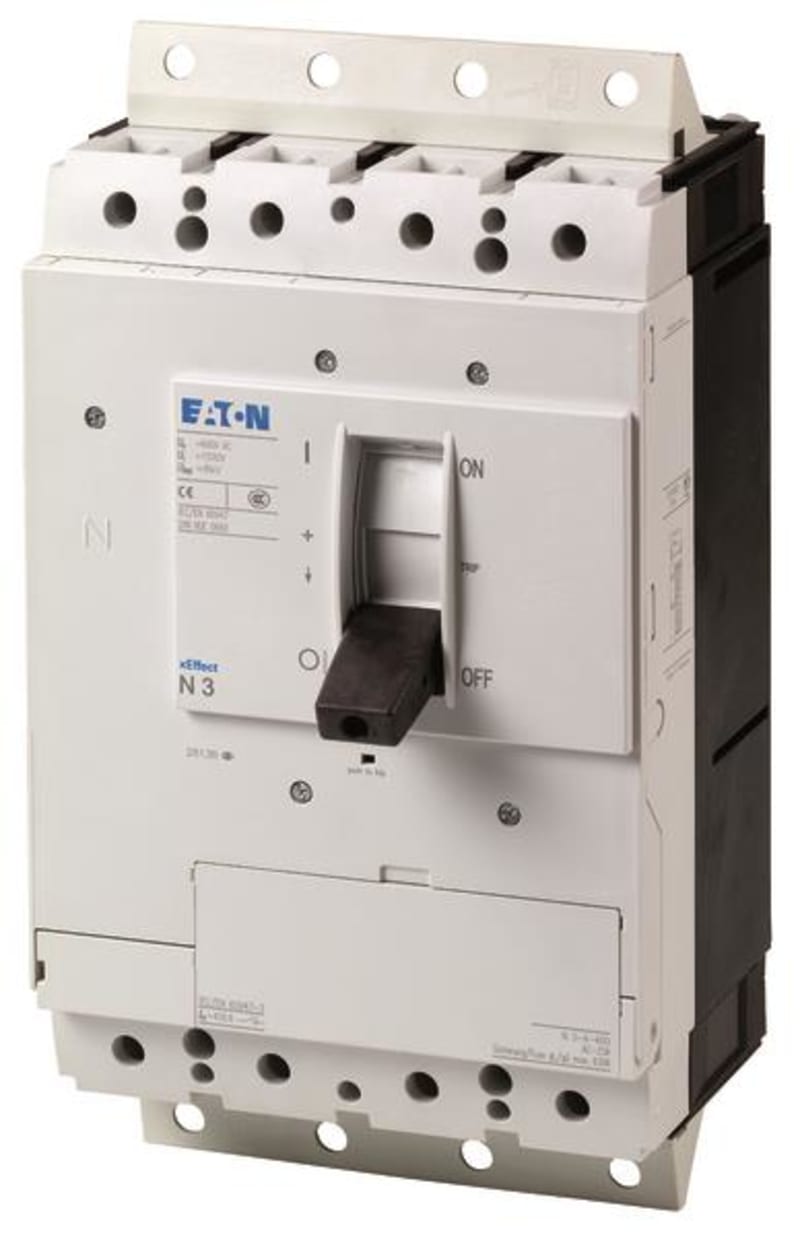

Eaton N3-4-400-SVE
Pricing
Request a quote
We reply within 24 hours
Overview
Eaton N3-4-400-SVE is listed under Switchgear & Protection / Disconnect Switches. Sales unit: pcs; Eaton catalogue number: 168470; Depth: 335 mm; Height: 215.2 mm; Width: 185 mm; Weight: 7.75 kg.
Technical Specifications
- Manufacturer part number (MPN)
- N3-4-400-SVE
- EAN / GTIN
- 4015081649518
- Sales unit
- pcs
- Eaton catalogue number
- 168470
- Depth
- 335 mm
- Height
- 215.2 mm
- Width
- 185 mm
- Weight
- 7.75 kg
- Compliances
- RoHS conform
- Certifications
- IEC 60947-3
- Functions
- Voltage release optional; Interlockable
- Amperage Rating
- 400 A
- Features
- Version as emergency stop installation; Version as maintenance-/service switch; Motor drive optional; Version as main switch
- Number of poles
- Four-pole
- Special features
- Main switch characteristics including positive drive to IEC/EN 60204 and VDE 0113. Busbar tag shroud to VDE 0160 Part 100. Rated current = rated uninterrupted current: 400 A
- Ambient operating temperature - max
- 70 °C
- Ambient storage temperature - max
- 70 °C
- Ambient operating temperature - min
- -25 °C
- Equipment heat dissipation, current-dependent
- 43.2 W
- Electrical connection type of main circuit
- Screw connection
- Handle type
- Rocker lever
- Rated operating power at AC-23, 400 V
- 200 kW
- Rated operating voltage (Ue) at AC - max
- 690 V
- Rated short-time withstand current (Icw)
- 12 kA
- Short-circuit protective device fuses - max
- 630 A gL
- Voltage rating
- 690 V - 690 V
- Degree of protection
- IP20
- Degree of protection (IP), front side
- IP20
- Handle color
- Black
- Mounting Method
- Built-in device plug-in technique; Ground mounting; Intermediate mounting; Distribution board installation
- Number of auxiliary contacts (change-over contacts)
- 0
- Number of auxiliary contacts (normally closed contacts)
- 0
- Number of auxiliary contacts (normally open contacts)
- 0
- Number of switches
- 1
- Document Name
- Description Action
- Country of origin
- Romania
Standards & Compliance
- HS Code
- 8536.20
Cross References
- EAN 4015081649518
- SAP 1200296848
- Code 82268284
