Eaton

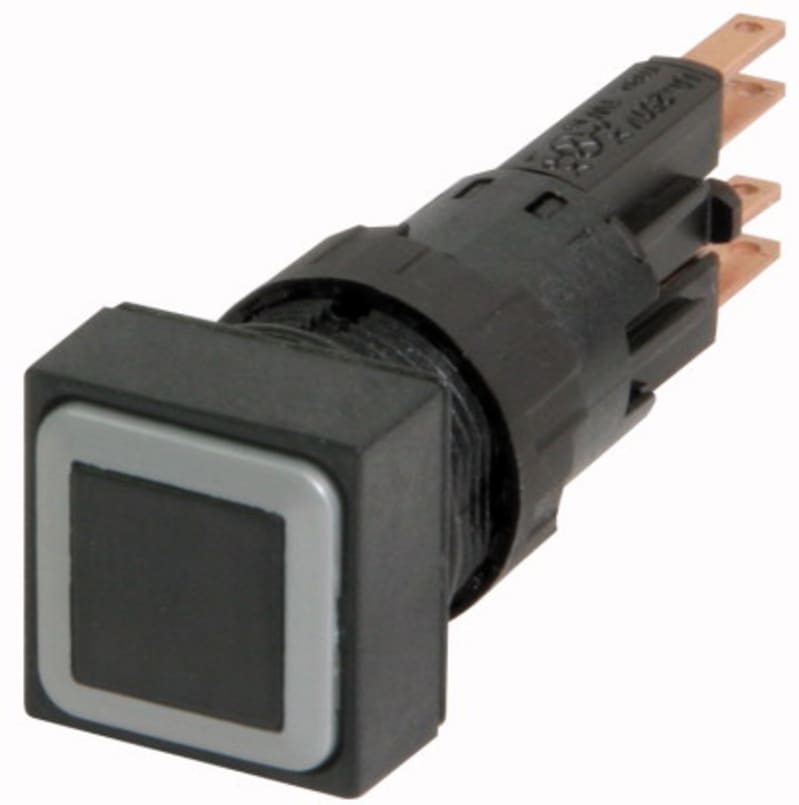

PUSH-Button RMQ 16 Black
Part numberQ18D-SWEAN / GTIN4015080867883HS code8538.90
Control & Automation
Pushbuttons & Pilot Lights
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Eaton Q18D-SW Push-button, impulse, black.
Technical Specifications
- Manufacturer part number (MPN)
- Q18D-SW
- EAN / GTIN
- 4015080867883
- Sales unit
- pcs
- Package quantity
- 10 pcs
- Eaton catalogue number
- 086788
- Depth
- 50 mm
- Height
- 18 mm
- Width
- 18 mm
- Weight
- 0.007 kg
- Certifications
- IEC/EN 60947-5; UL File No.: E29184; CSA Class No.: 3211-03; IEC/EN 60947; UL 508; UL; UL Category Control No.: NKCR; CSA File No.: 46552; VDE 0660; CE; CSA-C22.2 No. 14-05; CSA
- Type
- Pushbutton actuator
- Actuator color
- Black
- Actuator function
- Spring-return; Momentary
- Fitted with
- Front ring
- Operating frequency
- 3600 Operations/h
- Climatic proofing
- Damp heat, constant, to IEC 60068-2-78; Damp heat, cyclic, to IEC 60068-2-30
- Connection to SmartWire-DT
- No
- Actuating force
- 4 N
- Ambient operating temperature - max
- 60 °C
- Ambient operating temperature - min
- -25 °C
- Ambient operating temperature (enclosed) - max
- 40 °C
- Ambient operating temperature (enclosed) - min
- 25 °C
- Number of command positions
- 1
- Opening diameter
- 16 mm
- Bezel color
- Black
- Shock resistance
- 40 g, Mechanical, According to IEC/EN 60068-2-27, Sinusoidal shock 11 ms; Mechanical, According to IEC/EN 60068-2-27
- Bezel material
- Plastic
- Design
- Flat
- Mounting position
- As required
- Degree of protection
- IP65; NEMA 1
- Degree of protection (front side)
- NEMA 1; IP65
- Inscription
- Blank
- Front element type
- Flat
- Lens type
- Square
- Lifespan, mechanical
- 3,000,000 Operations
- Product category
- RMQ16
- Size
- Front dimensions: 18 x 18 mm
- Hole diameter
- 16 mm
- Colour button
- Black
- Suitable for lighting
- No
- Spring-return
- Yes
- Labelled
- No
- Type of button
- Flat
- Colour front ring
- Black
- Degree of protection (IP), front side
- IP65
- Height opening
- 6 mm
- With protective cover
- No
- Material front ring
- Plastic
- With front ring
- Yes
- Construction type lens
- Square
- Switching function latching
- No
- Country of origin
- China
- Width opening
- 16 mm
Standards & Compliance
- HS Code
- 8538.90
Cross References
- EAN 4015080867883
- SAP 1000033946
- Code 8755783
Product Documentation
Document preview: PUSH-BUTTON RMQ 16 BLACK (Q18D-SW) — Specification Data Sheet (OEM)
