Eaton

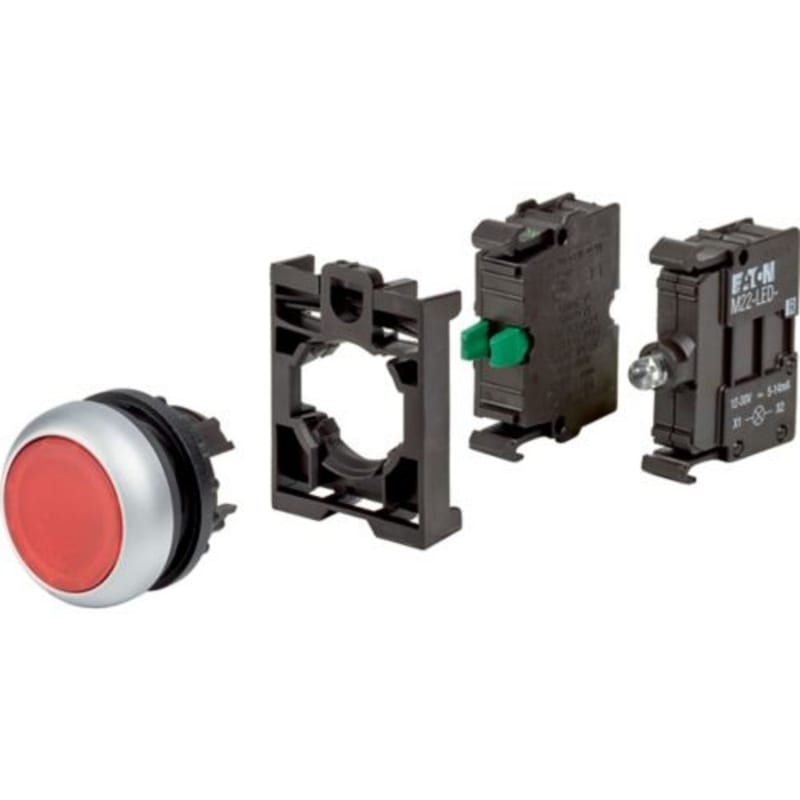

Push-button with light, RMQ (M22-DL-R-K10LED-BVP)
Part numberM22-DL-R-K10LED-BVPEAN / GTIN4015081104611HS code8536.50
Control & Automation
Pushbuttons & Pilot Lights
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Eaton M22-DL-R-K10LED-BVP.
Technical Specifications
- Manufacturer part number (MPN)
- M22-DL-R-K10LED-BVP
- EAN / GTIN
- 4015081104611
- Sales unit
- pcs
- Package quantity
- 50 pcs
- Eaton catalogue number
- 110932
- Depth
- 50 mm
- Height
- 80 mm
- Width
- 50 mm
- Weight
- 0.035 kg
- Compliances
- CE
- Certifications
- DNV; GL; LR
- Actuator color
- Red
- Actuator function
- Spring-return
- Bezel color
- Titanium
- Bezel material
- Plastic
- Fitted with
- Front ring
- Lens type
- Round
- Number of command positions
- 1
- Ambient operating temperature - max
- 70 °C
- Ambient operating temperature - min
- -25 °C
- Connection to SmartWire-DT
- No
- Heat dissipation per pole, current-dependent Pvid
- 0.11 W
- Rated operational current for specified heat dissipation (In)
- 6 A
- Static heat dissipation, non-current-dependent Pvs
- 0.45 W
- Degree of protection (front side)
- IP67; NEMA 4X
- Opening diameter
- 22 mm
- Product category
- RMQ-Titan
- Suitable for
- Illumination
- Hole diameter
- 22 mm
- Colour button
- Red
- Suitable for lighting
- Yes
- Spring-return
- Yes
- Labelled
- No
- Type of button
- Flat
- Colour front ring
- Chrome
- Degree of protection (IP), front side
- IP67
- With protective cover
- No
- Material front ring
- Plastic
- With front ring
- Yes
- Construction type lens
- Round
- Switching function latching
- No
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8536.50
Cross References
- EAN 4015081104611
- SAP 1000767404
- Code 8560332
Product Documentation
Document preview: Push-button with lys, RMQ (M22-DL-R-K10LED-BVP) — Specification Data Sheet (OEM)
More from Eaton
Eaton
Cabinet B=1200 H=2 060 D=250
BP-F-1200/20/2,5
Eaton
Fixing Material for cable trunking (BPZ-CDB)
Eaton
Switch-disconnector DMM-160/4/I5/C-B
Eaton
Eaton FAZT-B16/1N Miniature Circuit Breaker — 1P+N, Type B, 16 A, 25 kA
Eaton
Enclosure H×W×D=250X375X175MM (CI43X-150)
Eaton
DG1 variable-frequency drive 230V: 1,1kW (DG1-324D8FB-C54C)
Eaton
Cover Plate SL xE Main H600 B50
XME0602CL
Eaton

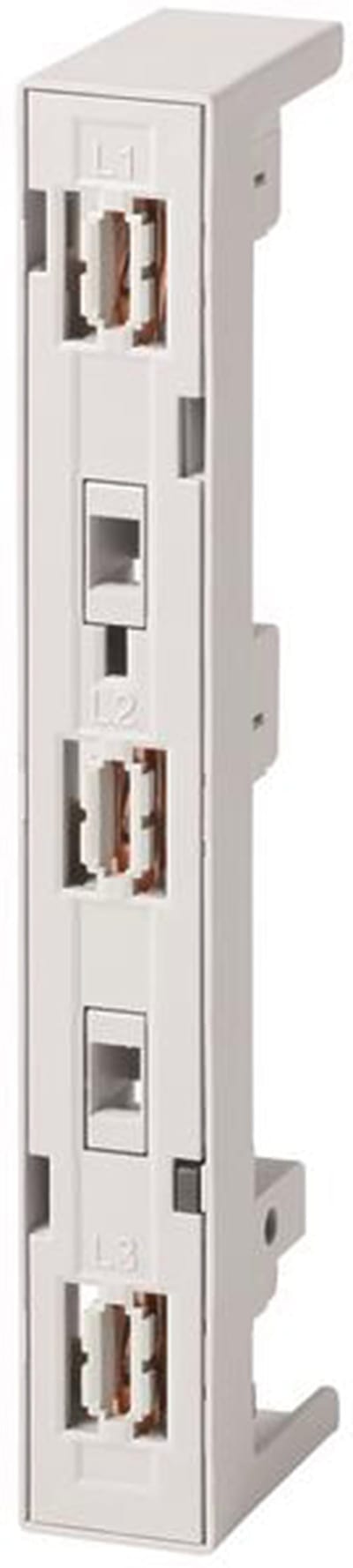

Adapter EMS2-XBB-60
